HX(*)1300/13000

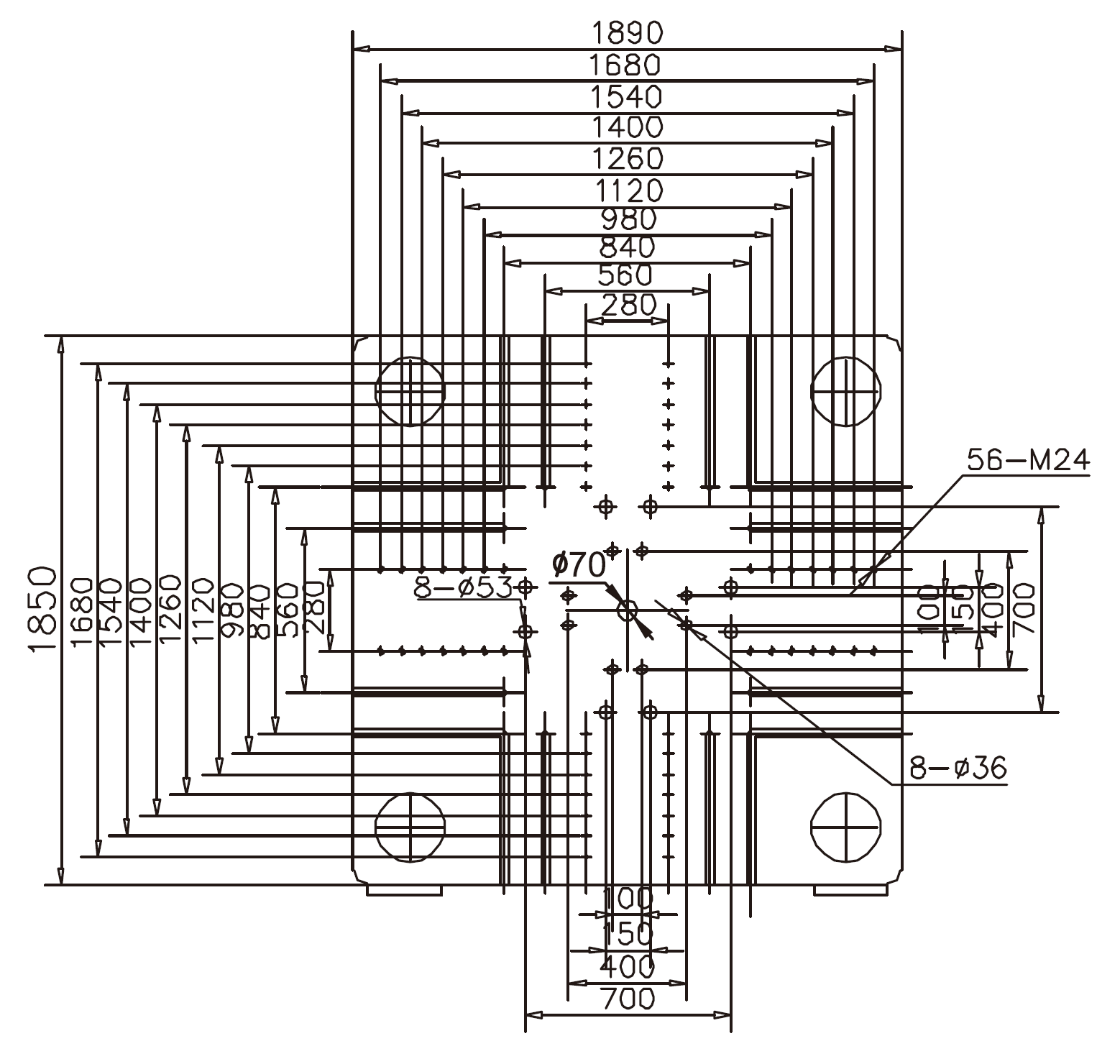

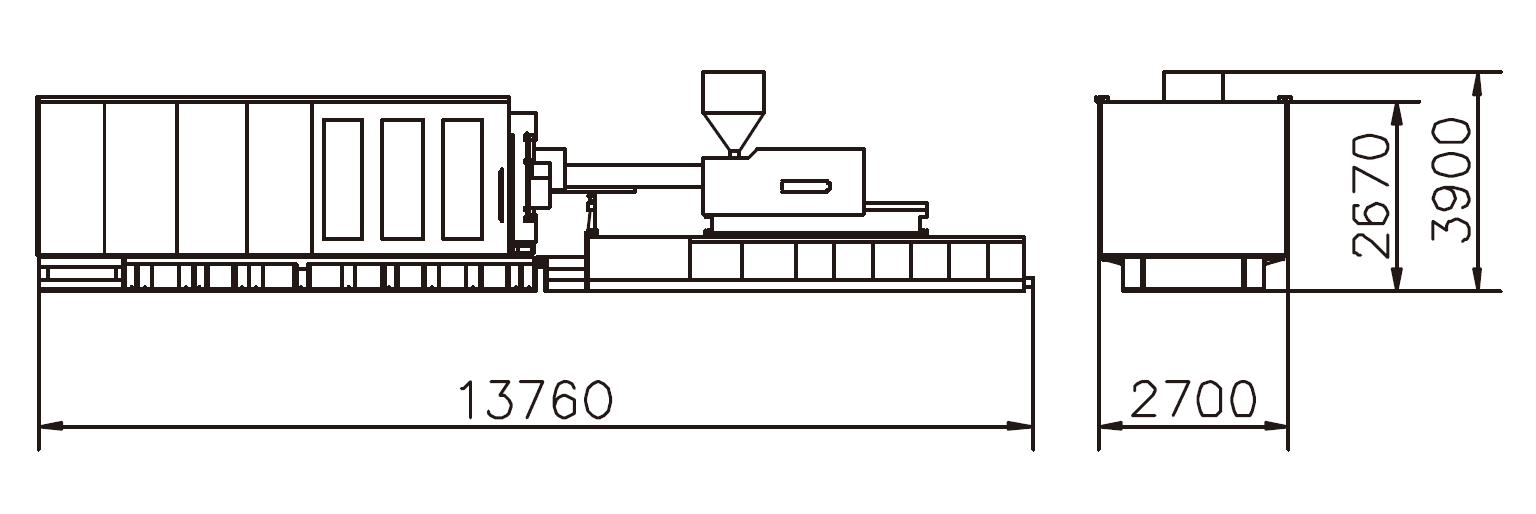

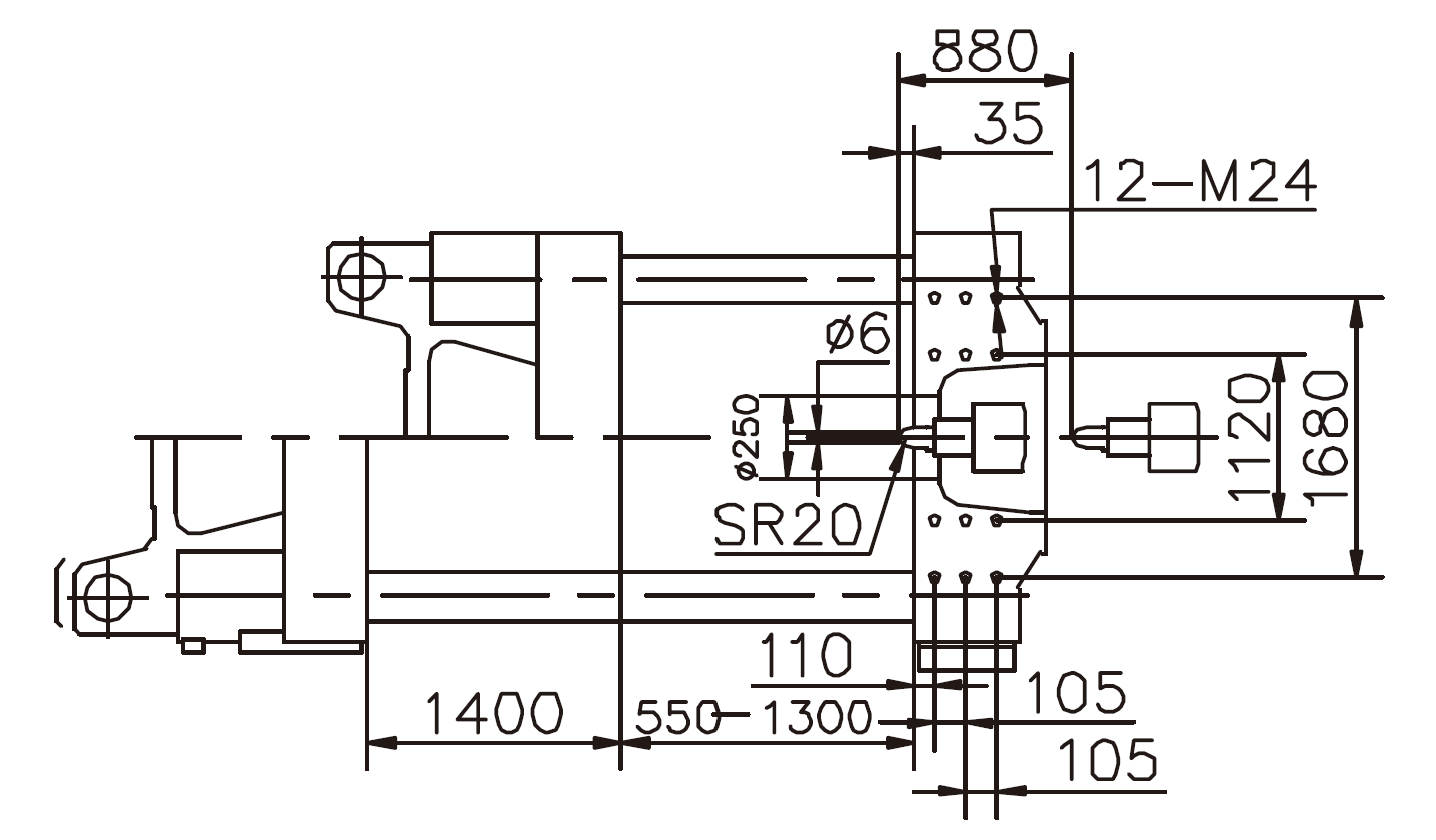

The HXM 1300/13000 is a servo energy‑saving injection molding machine developed for high‑precision, heavy‑duty plastic production requiring strength, efficiency, and stability. It provides a clamping force of 13,000 kN and uses screw diameters of 120, 130, and 140 mm, giving a theoretical injection capacity from 7012 to 9544 cm³. The injection pressure ranges between 188 and 138 MPa, and the plasticizing capacity varies from 101 to 135 g/s depending on the screw option. The system operates at a pump pressure of 17.5 MPa, driven by a triple servo motor configuration rated at 40 + 40 + 40 kW, with a total heating capacity of 99.8 kW. The clamping unit includes a mold opening stroke of 1400 mm, a mold height range from 550 to 1300 mm, and tie‑bar spacing of 1320 × 1280 mm. The overall machine dimensions are 13.76 × 2.70 × 3.90 meters, with an approximate weight of 66.6 tons and an oil tank capacity of 1400 liters. The HXM 1300/13000 integrates a high‑performance servo‑hydraulic drive for precise pressure and flow control, achieving reduced cycle times and significant energy savings. It is ideal for producing large automotive parts, household and industrial containers, structural plastic products, and other high‑tonnage applications that demand consistent accuracy and reliability.
