HX(*)138/460

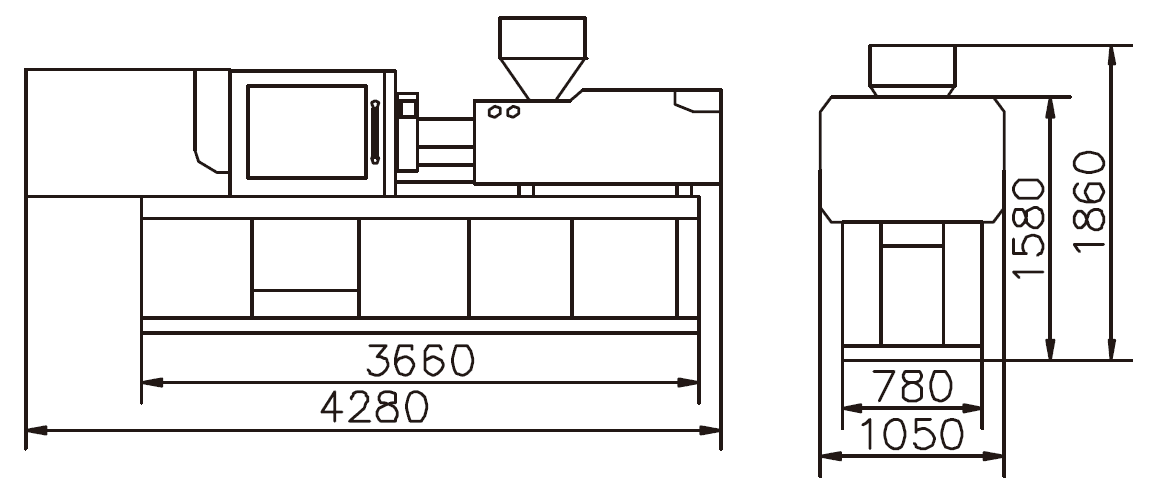

The HXM 138/460 is a servo energy‑saving injection molding machine designed for high precision, stable performance, and reduced energy consumption. It delivers a clamping force of 1380 kN and supports screw diameters of 35, 38, and 42 mm, giving an injection capacity from 192 to 277 cm³. The corresponding injection pressure ranges between 240 and 166 MPa, with plasticizing capacities of 12 to 15 g/s. The servo drive motor outputs 16 kW, and the heating system requires 13.25 kW. The pump pressure is 17.5 MPa. The machine provides a mold opening stroke of 390 mm, mold heights between 150 and 450 mm, and tie‑bar spacing of 420 × 370 mm. Its overall size is 4.28 × 1.05 × 1.86 meters, it weighs about 3.9 tons, and has an oil tank capacity of 160 liters. Featuring a fast‑response servo‑hydraulic system and closed‑loop control for precise flow and pressure management, this model is ideal for precision parts across consumer goods, electronics, and daily‑use plastic applications.
