HX(*)1500/15500

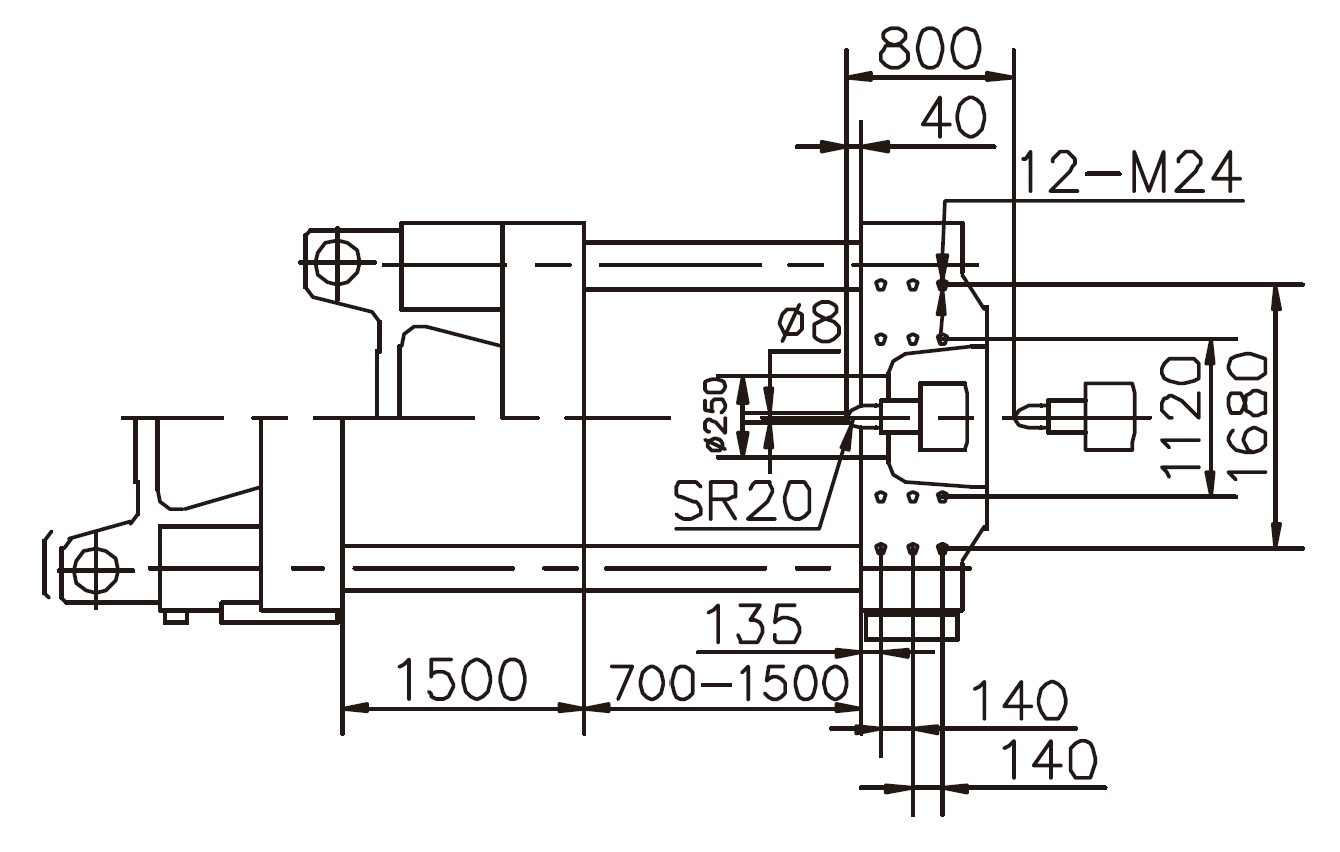

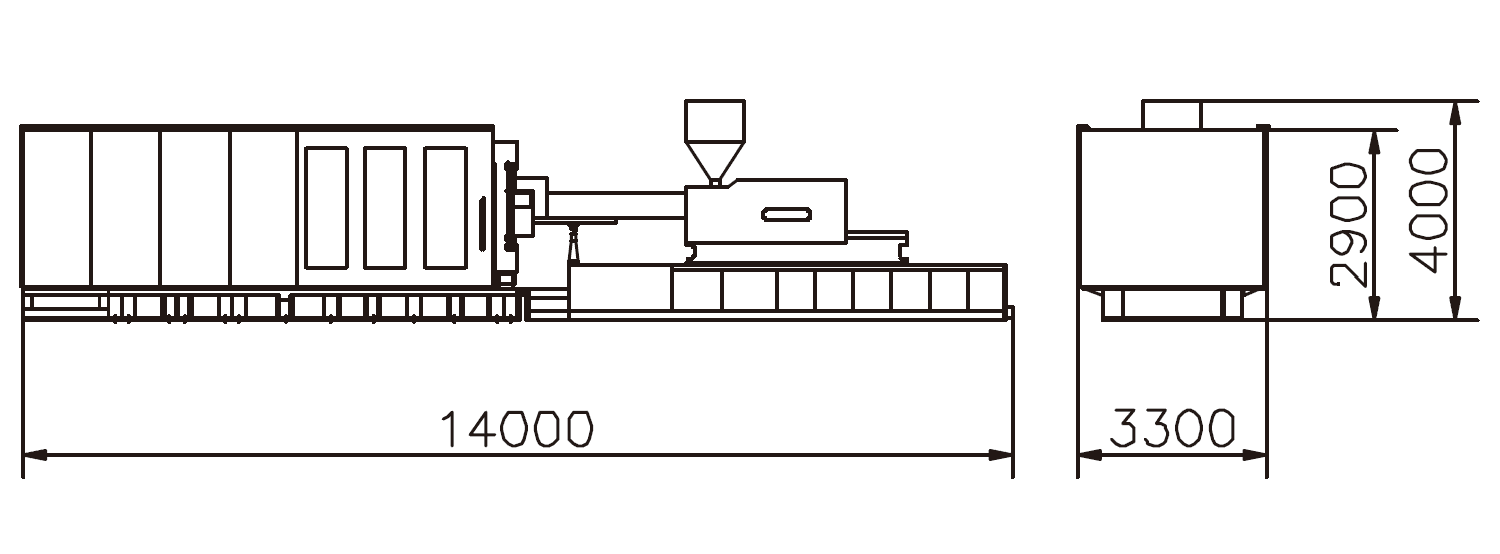

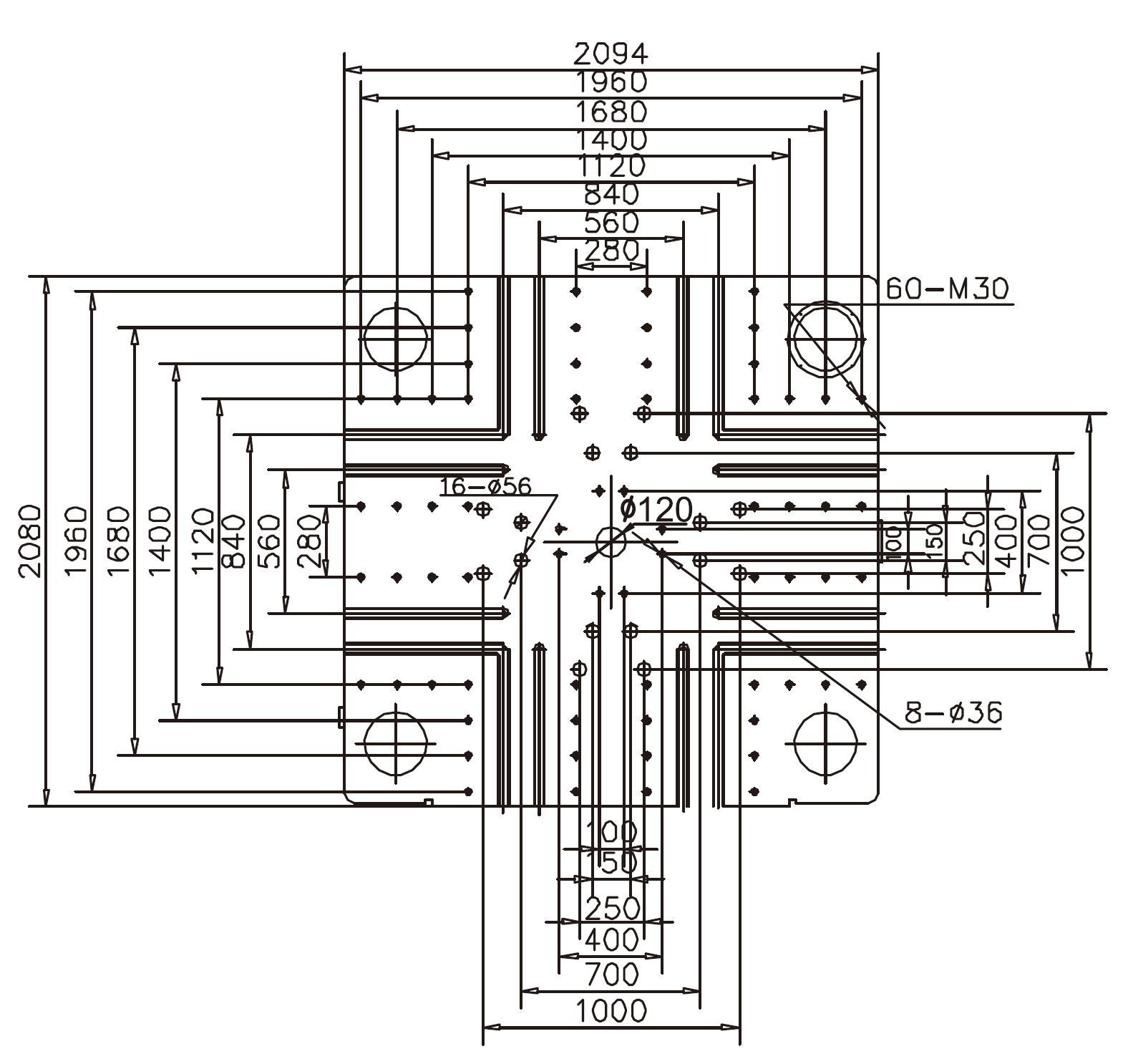

The HXM 1500/15500 is a high‑tonnage servo energy‑saving injection molding machine engineered for large‑scale, high‑precision production of complex plastic components. It provides a clamping force of 15,000 kN and features screw diameters of 130, 140, and 150 mm, giving a theoretical injection capacity from 8627 to 11,486 cm³. The injection pressure ranges between 180 and 135 MPa, while the plasticizing capacity varies from 120 to 160 g/s. The system operates at a pump pressure of 17.5 MPa and is powered by a four‑motor servo system rated at 40 + 40 + 40 + 40 kW, with a total heating capacity of 118.25 kW. The clamping unit offers a mold opening stroke of 1500 mm, a mold height range from 700 to 1500 mm, and tie‑bar spacing of 1450 × 1350 mm. The overall dimensions are 14.00 × 3.30 × 4.00 meters, with a weight of approximately 93.6 tons and an oil tank capacity of 1600 liters. The HXM 1500/15500 combines servo‑hydraulic precision with high structural rigidity, ensuring stable pressure control, reduced cycle times, and up to 60 percent lower energy use. It is suitable for large automotive parts, logistics containers, appliance housings, and heavy industrial plastic products requiring high strength, accuracy, and efficiency.
