HX(*)208PET

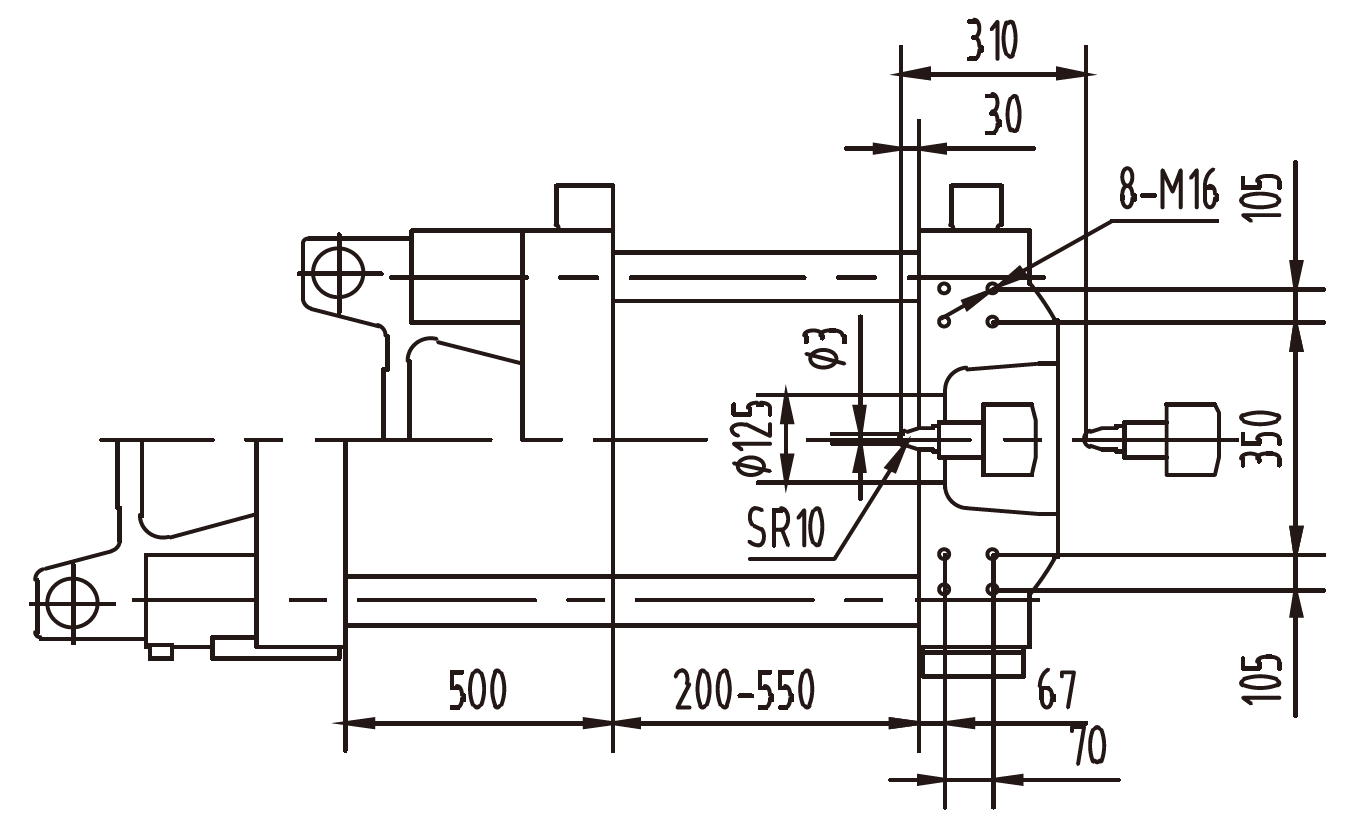

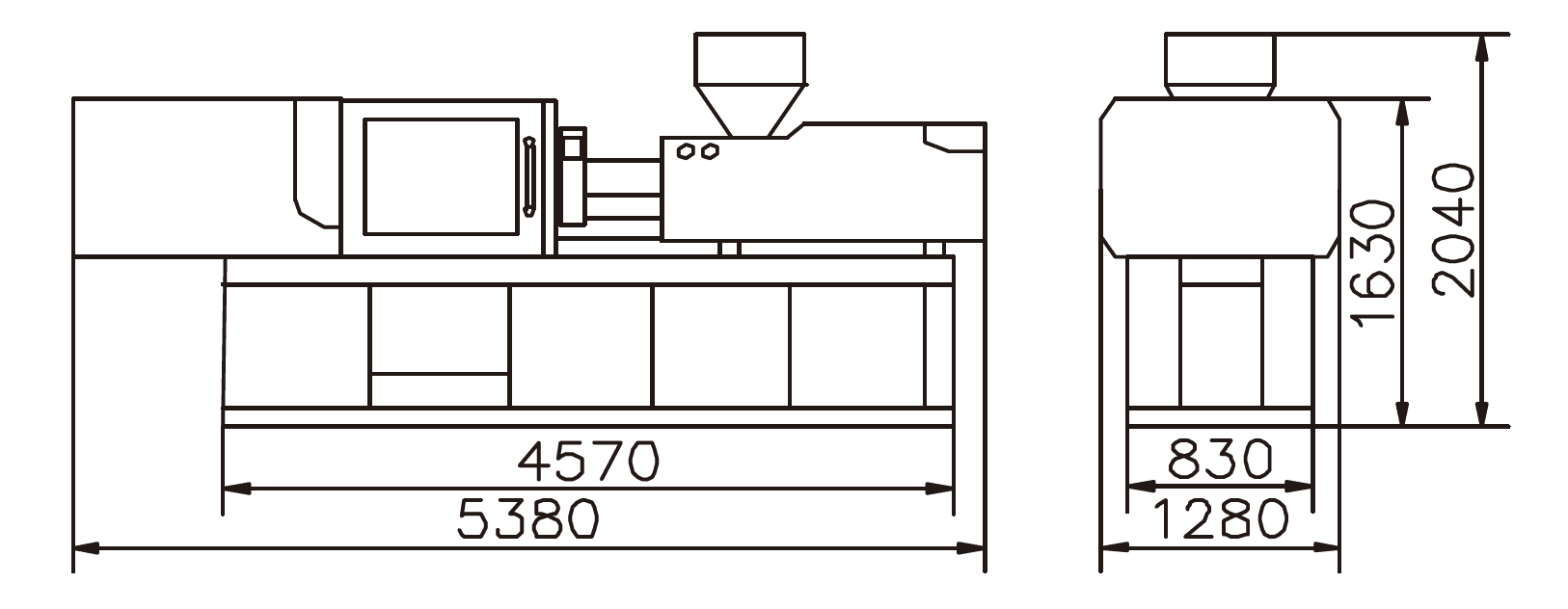

The HXM 208PET is a servo energy‑saving injection molding machine optimized for PET preform production, offering strong injection performance, high plasticizing efficiency, and low energy consumption. It provides a clamping force of 2080 kN and uses a 50 mm PET‑specific screw with a long L/D ratio of 24, ensuring excellent melt quality and material transparency. The theoretical injection capacity is 500 cm³, with an injection weight of about 580 g for PET resin. The machine achieves an injection pressure of 150 MPa, an injection rate of 264 g/s, and a plasticizing capacity of 33 g/s. It operates at a screw speed of 190 rpm and a pump pressure of 17.5 MPa, with a servo motor rated at 21 kW and a heating capacity of 16.85 kW. The clamping unit provides a mold opening stroke of 500 mm, supports mold heights from 200 to 550 mm, and features tie‑bar spacing of 530 × 480 mm. The overall dimensions are 5.38 × 1.28 × 2.04 meters, with a weight of about 6.3 tons and a 200‑liter oil tank. Engineered for PET applications, the HXM 208PET features an enhanced hydraulic system and optimized screw design for faster charging, stable pressure, and improved clarity of PET products. It is ideal for producing water and beverage bottle preforms, packaging containers, and similar high‑transparency plastic products requiring consistent quality and efficient operation.
