HX(*)2500/44000

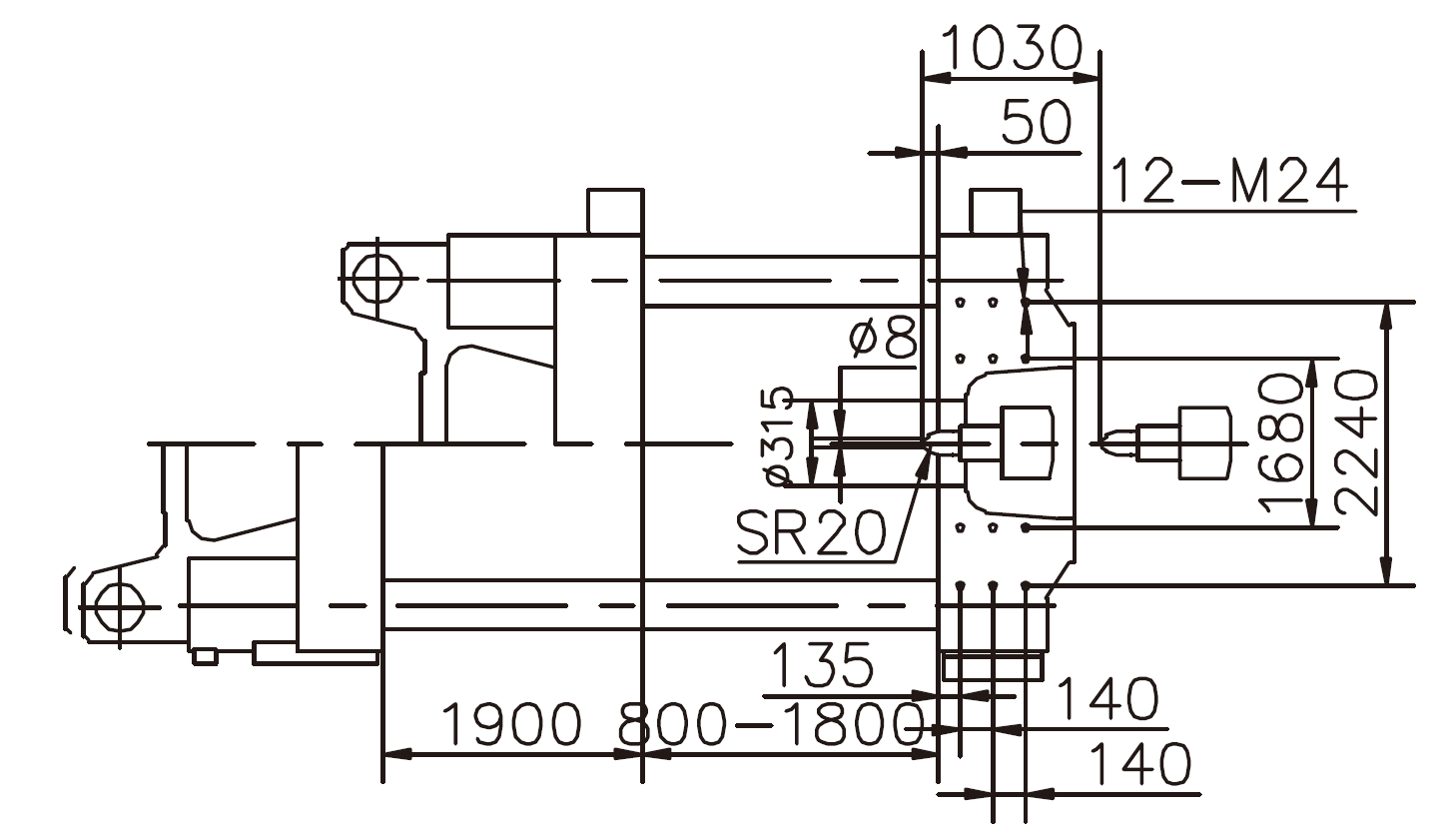

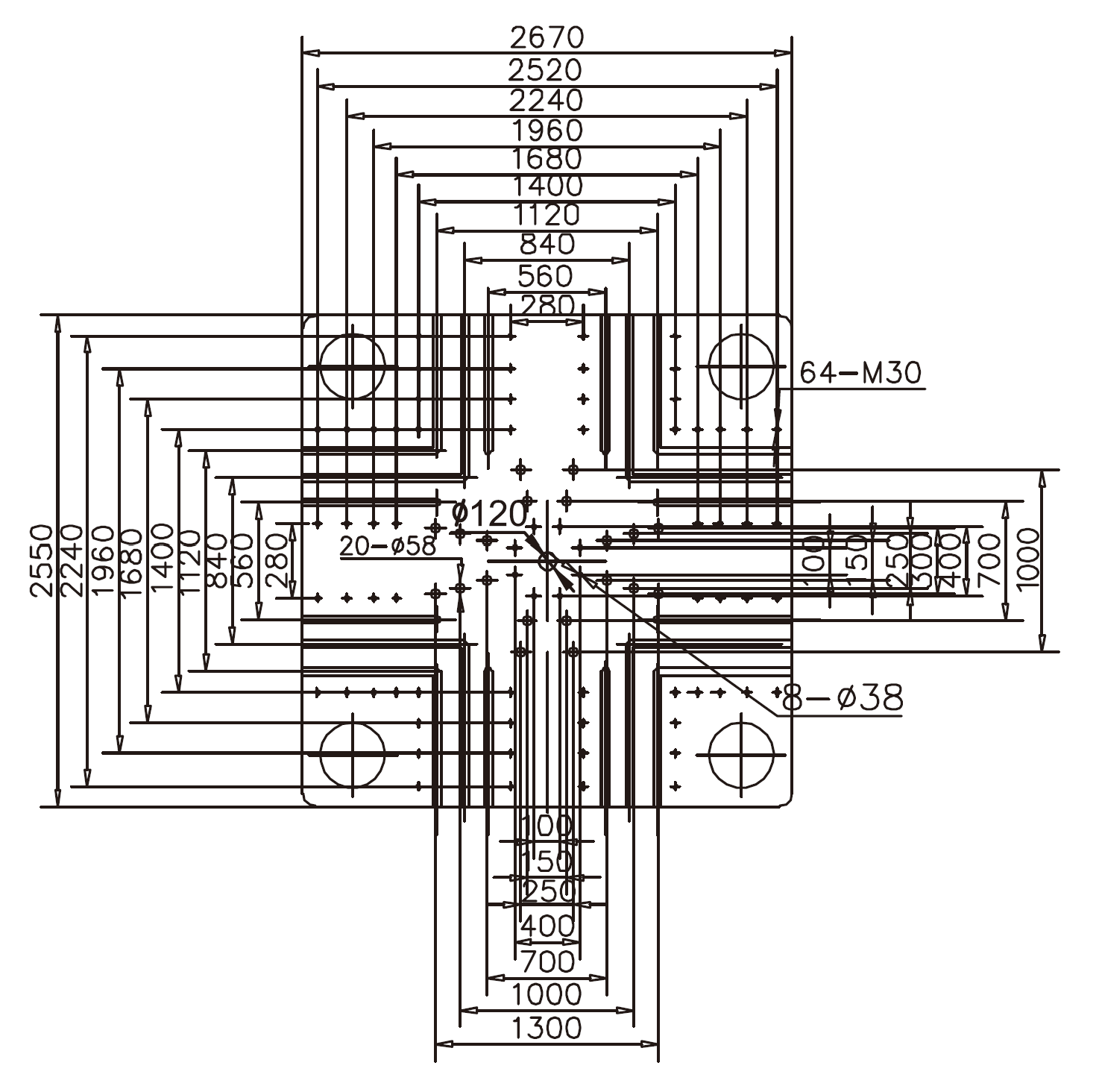

The HXM 2500/44000 is a heavy‑duty servo energy‑saving injection molding machine designed for large industrial and structural plastic products requiring high power, precision, and efficiency. It provides a clamping force of 25,000 kN and supports screw diameters of 170, 185, and 200 mm, yielding a theoretical injection capacity from 24,059 to 33,300 cm³. The injection pressure ranges from 186 to 134 MPa, with plasticizing capacities between 127 and 170 g/s depending on screw configuration. The system operates at a pump pressure of 17.5 MPa, powered by four servo motors rated at 47 + 47 + 47 + 47 kW, and delivers a total heating capacity of 214.15 kW. The clamping unit offers a mold opening stroke of 1900 mm, mold height from 800 to 1800 mm, and tie‑bar spacing of 1850 × 1700 mm. Overall machine dimensions are 19.50 × 4.00 × 5.20 meters, with an approximate weight of 163 tons and an oil tank capacity of 2700 liters. The HXM 2500/44000 combines a high‑capacity servo‑hydraulic system with advanced control technology to ensure excellent pressure stability, fast injection response, and substantial energy savings. It is ideal for producing large automotive body parts, industrial containers, pallet crates, infrastructure components, and similar high‑strength molded products that require accurate, repeatable performance and superior structural integrity.
