HX(*)258-I/870

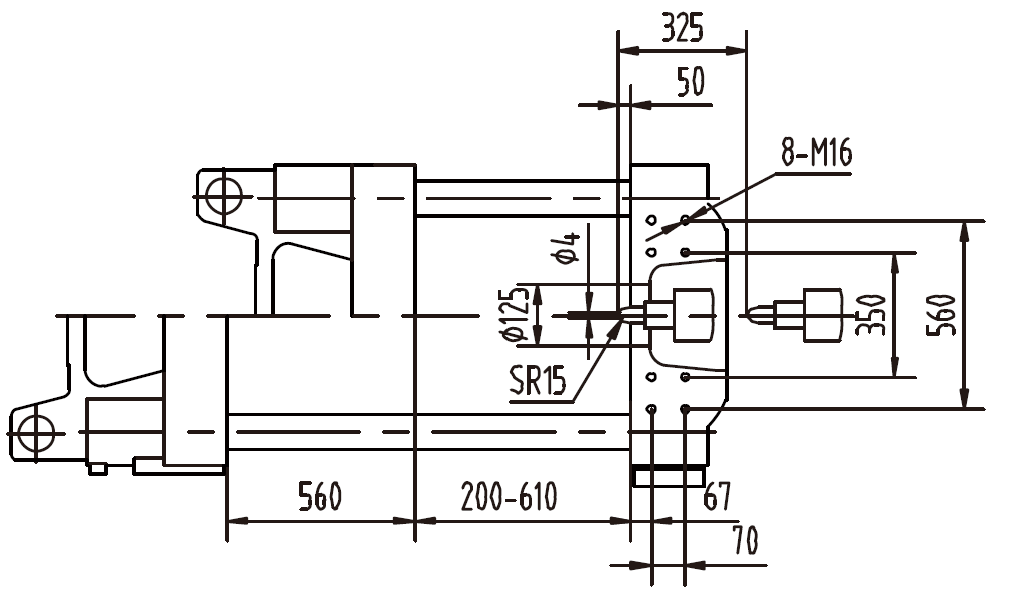

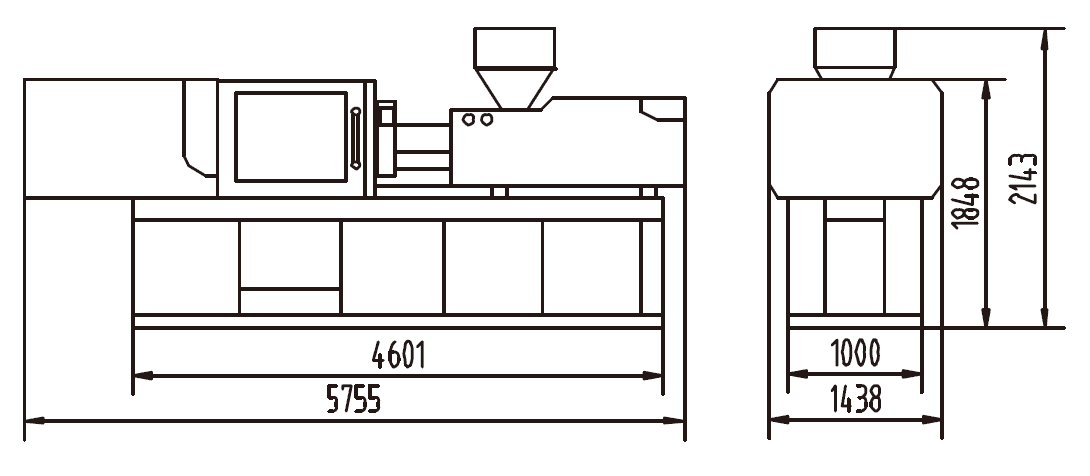

The HXM 258-I/870 is a servo energy-saving injection molding machine built for balanced performance, precision, and efficiency in medium-sized plastic product manufacturing. It provides a clamping force of 2580 kN and is equipped with screw options of 45, 50, 55, and 60 mm, resulting in an injection capacity between 381 and 678 cm³. Depending on the screw configuration, the injection pressure ranges from 229 to 129 MPa, while the plasticizing capacity varies from 20 to 40 g/s. The machine operates with a pump pressure of 17.5 MPa, a 30 kW servo motor system, and a heating capacity of 18.1 kW. The clamping system has a mold opening stroke of 560 mm, supports mold heights from 200 to 610 mm, and features tie-bar spacing of 580 × 540 mm. The unit’s external dimensions are 5.76 × 1.44 × 2.15 meters, with an approximate weight of 7.4 tons and an oil tank capacity of 280 liters. The HXM 258-I/870 combines a rapid-response servo-hydraulic drive with precise control of pressure and flow, offering high molding repeatability, reduced cycle time, and substantial energy savings, making it suitable for medium-sized industrial, packaging, and consumer product applications.
