HX(*)258-II/1100

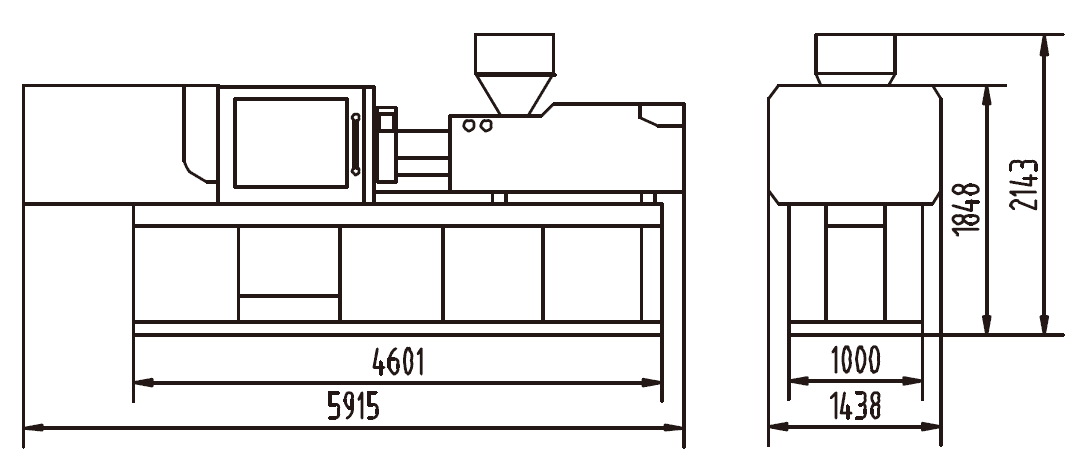

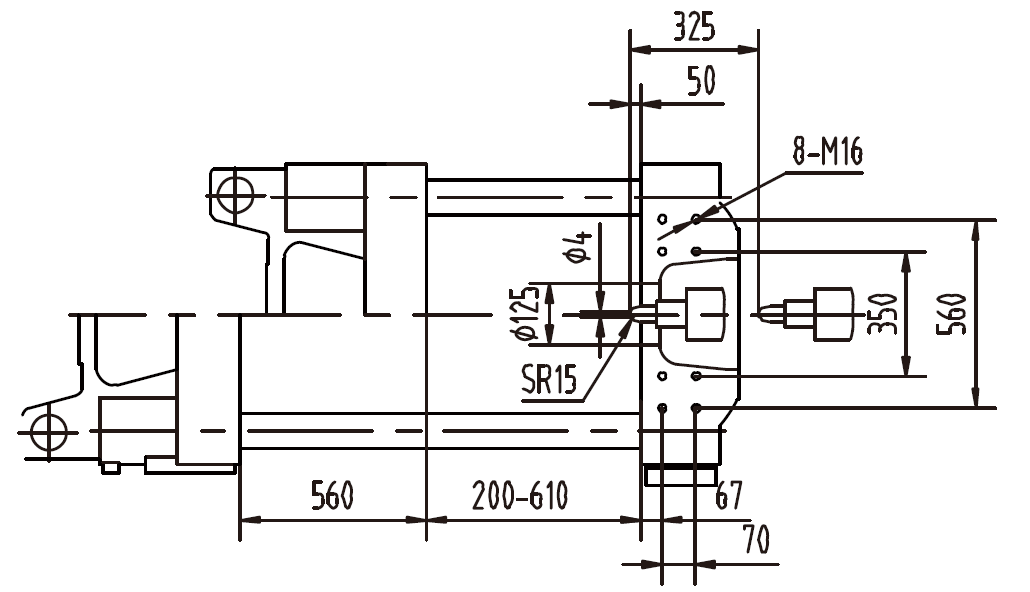

The HXM 258‑II/1100 is a servo energy‑saving injection molding machine designed for precise, stable, and efficient production of medium‑sized plastic parts. It provides a clamping force of 2580 kN and offers screw diameters of 50, 55, and 60 mm, giving a theoretical injection capacity from 490 to 706 cm³. The corresponding injection pressure ranges between 224 and 155 MPa, and the plasticizing capacity varies from 26 to 40 g/s. The machine operates at a pump pressure of 17.5 MPa, powered by a 30 kW servo motor, with a heating capacity of 22.55 kW. The clamping system features a mold opening stroke of 560 mm, allows mold heights between 200 and 610 mm, and has tie‑bar spacing of 580 × 540 mm. The machine measures 5.92 × 1.44 × 2.15 meters, weighs approximately 7.5 tons, and includes an oil tank capacity of 280 liters. Through its closed‑loop servo‑hydraulic control, the HXM 258‑II/1100 achieves fast response, accurate injection pressure control, and energy savings of up to 60 percent, making it ideal for producing packaging components, technical molded parts, and general engineering plastic products.
