HX(*)288-I/1100

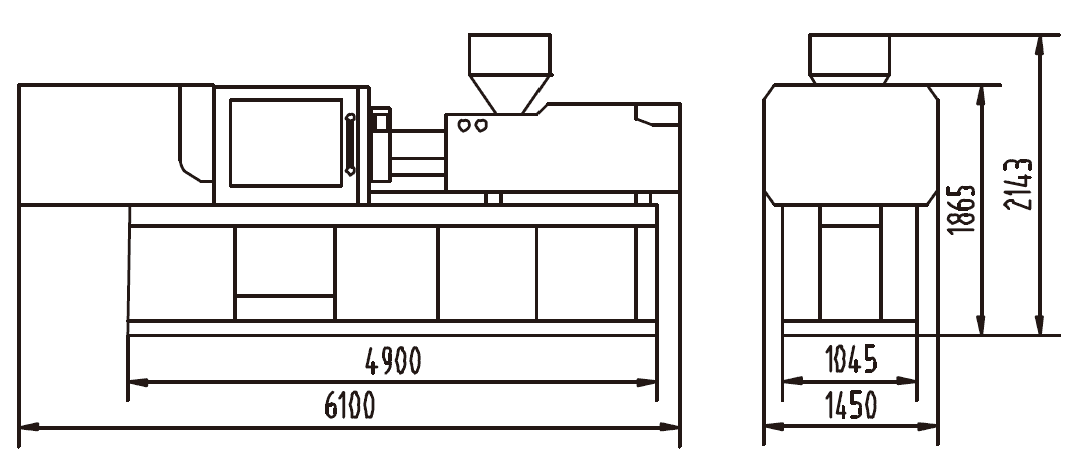

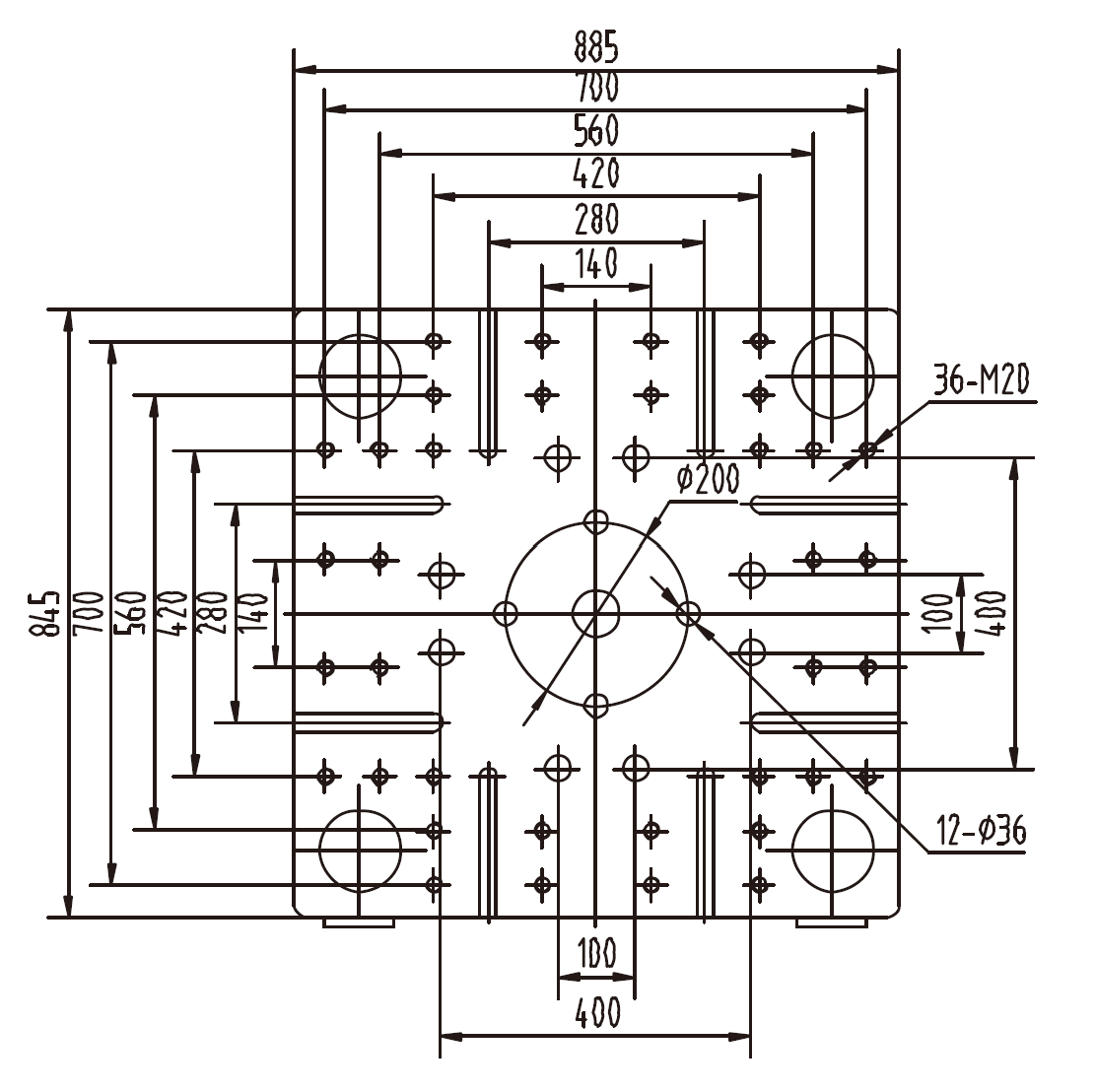

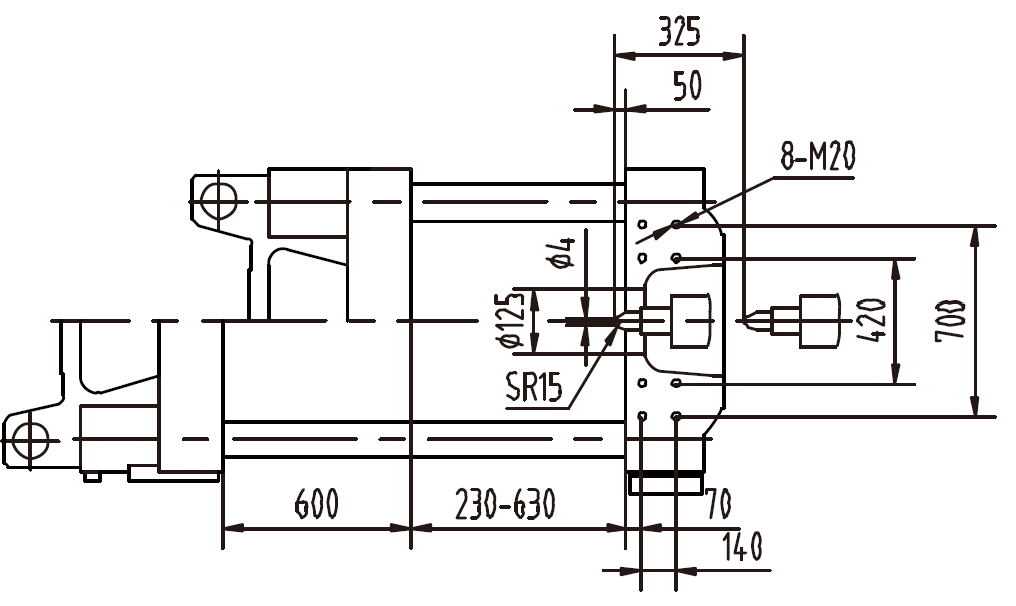

The HXM 288‑I/1100 is a servo energy‑saving injection molding machine engineered for precision, reliability, and efficient performance in medium‑sized molding applications. It offers a clamping force of 2880 kN and uses screw diameters of 55, 60, and 65 mm, giving a theoretical injection capacity from 593 to 829 cm³. The injection pressure ranges between 185 and 132 MPa, while the plasticizing capacity varies from 33 to 45 g/s depending on the screw size. The machine operates at a system pressure of 17.5 MPa, powered by a 30 kW servo motor, with a heating capacity of 22.55 kW. The clamping unit supports a mold opening stroke of 600 mm, mold heights from 230 to 630 mm, and tie‑bar spacing of 620 × 580 mm. The overall machine dimensions are 6.10 × 1.45 × 2.15 meters, with an approximate weight of 8.4 tons and an oil tank capacity of 320 liters. The HXM 288‑I/1100 combines a high‑efficiency servo‑hydraulic drive and closed‑loop control for consistent hydraulic performance, rapid cycle response, and significant energy savings, making it well suited for automotive, packaging, and general industrial plastic component production.
