HX(*)288-II/1600

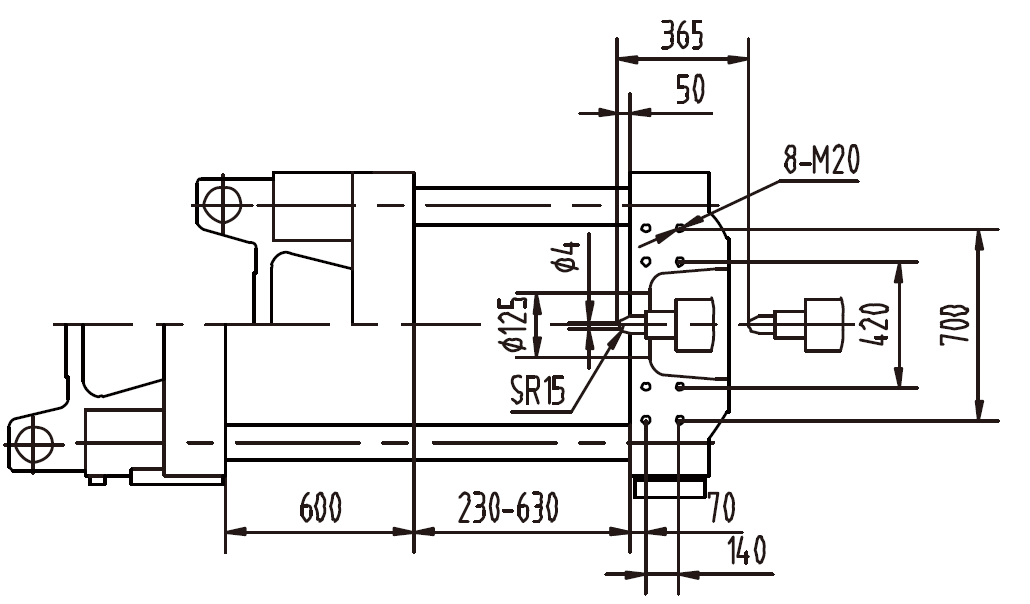

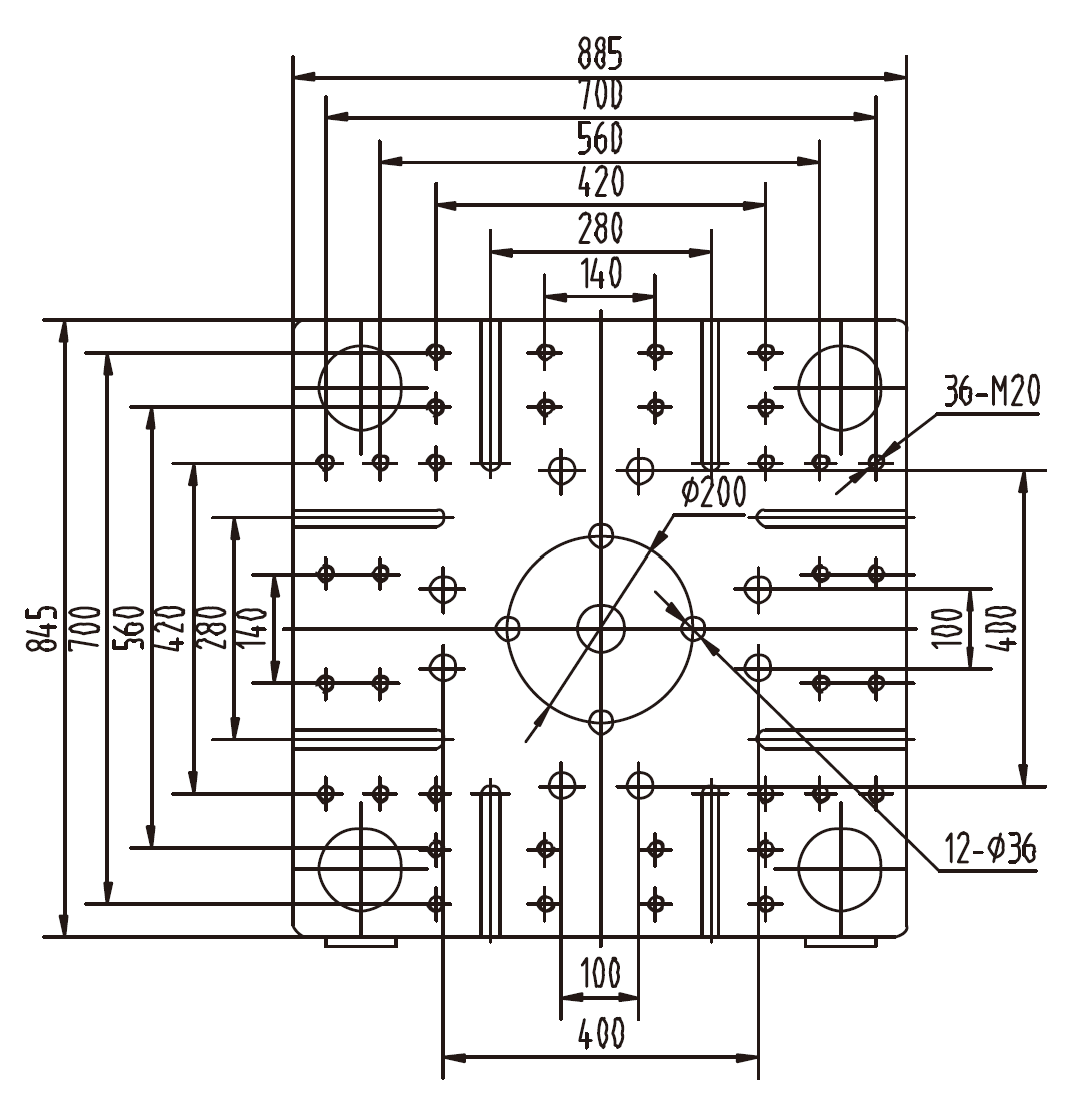

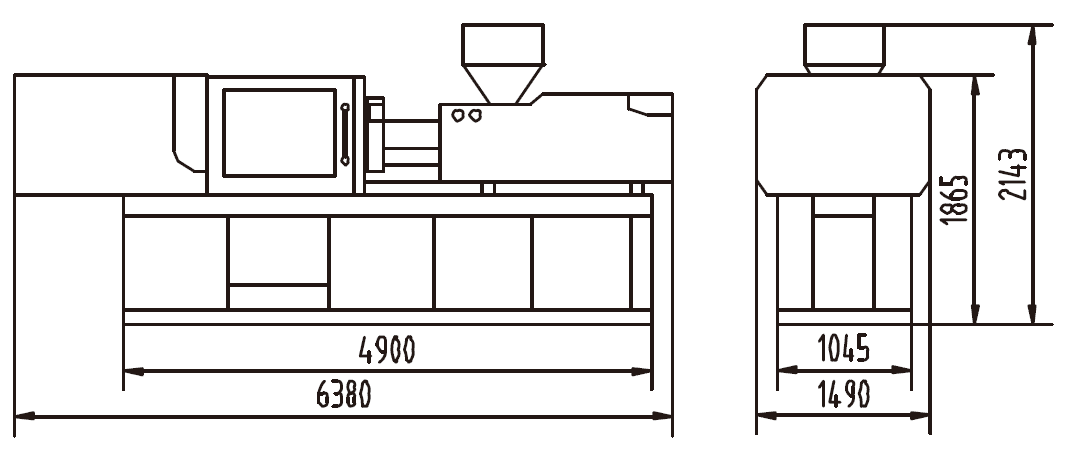

The HXM 288‑II/1600 is a servo energy‑saving injection molding machine designed for medium‑size molding operations that demand precision, stability, and efficient power use. It provides a clamping force of 2880 kN and comes with screw diameters of 55, 60, and 65 mm, resulting in a theoretical injection capacity from 736 to 1028 cm³. The injection pressure ranges from 218 to 156 MPa, and the plasticizing capacity varies between 33 and 45 g/s. The machine operates at a pump pressure of 17.5 MPa, features a 40 kW servo motor system, and has a heating capacity of 24.15 kW. The clamping unit offers a 600 mm mold opening stroke, a mold height range from 230 to 630 mm, and tie‑bar spacing of 620 × 580 mm. Overall dimensions are 6.38 × 1.49 × 2.15 meters, with an estimated weight of 8.6 tons and an oil tank capacity of 320 liters. With its fast‑response servo‑hydraulic system and closed‑loop control of pressure and speed, the HXM 288‑II/1600 achieves consistent injection performance, shorter cycle times, and substantial energy savings. This model is ideal for manufacturing precise industrial components, automotive parts, and durable plastic goods.
