HX(*)328/1600

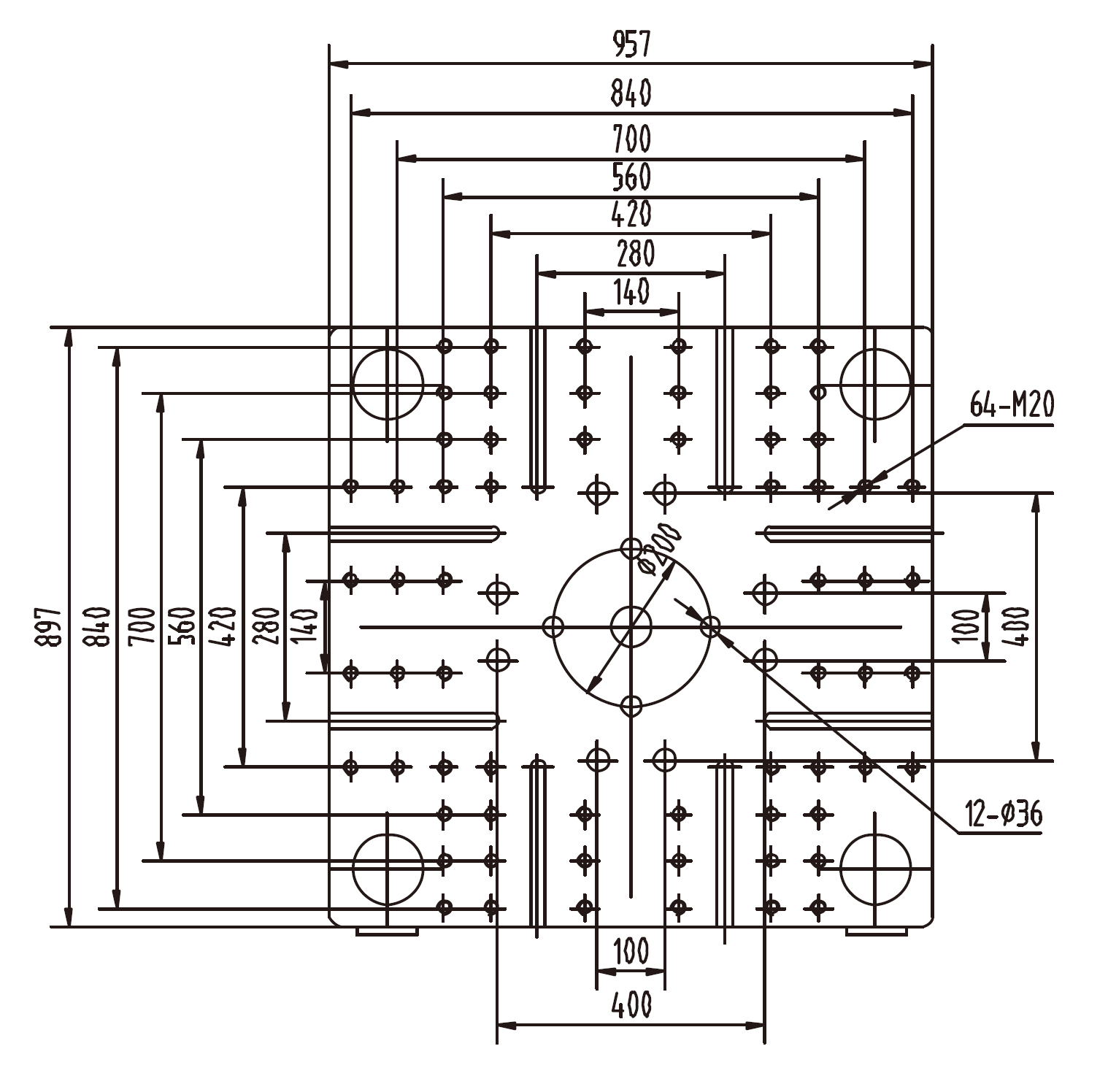

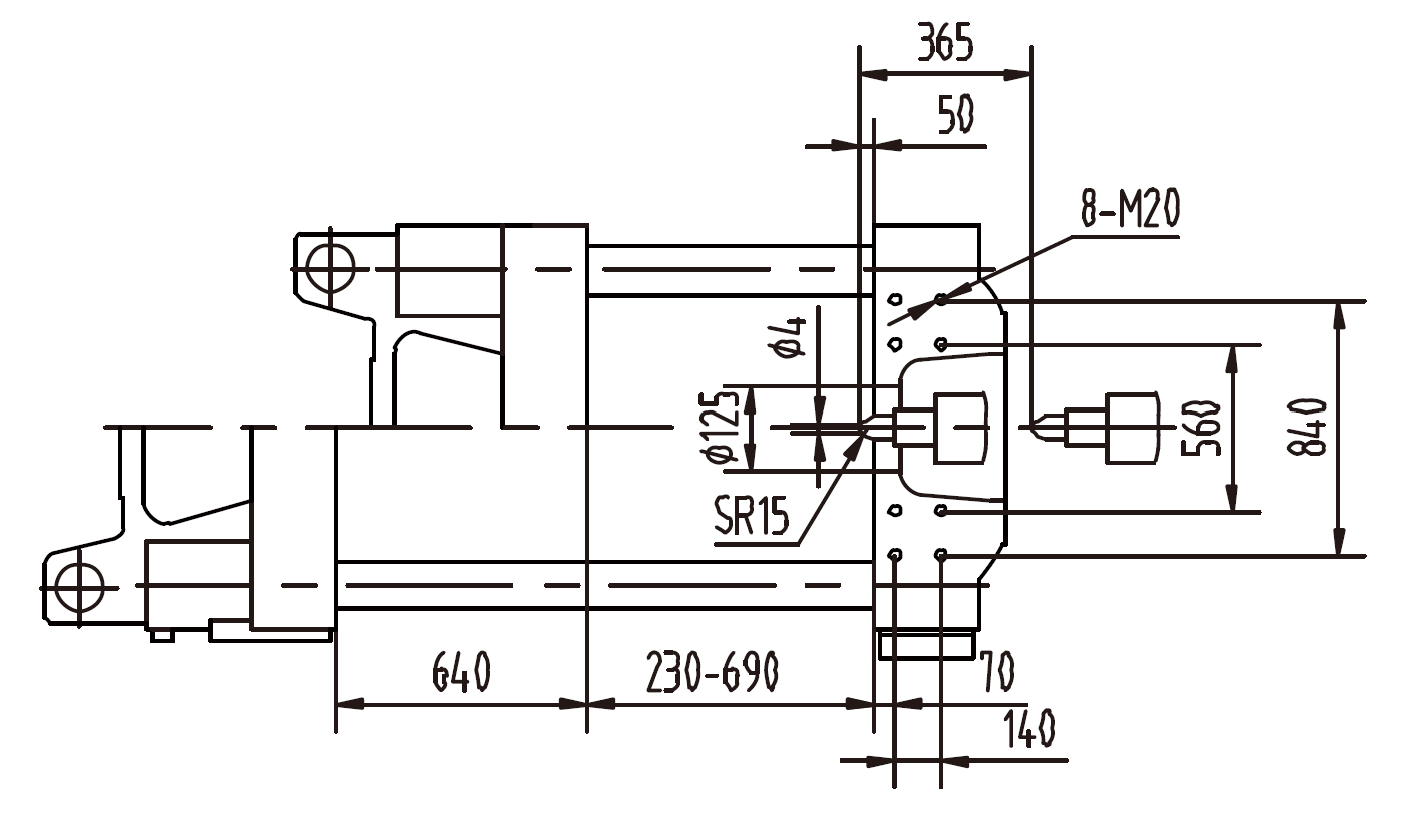

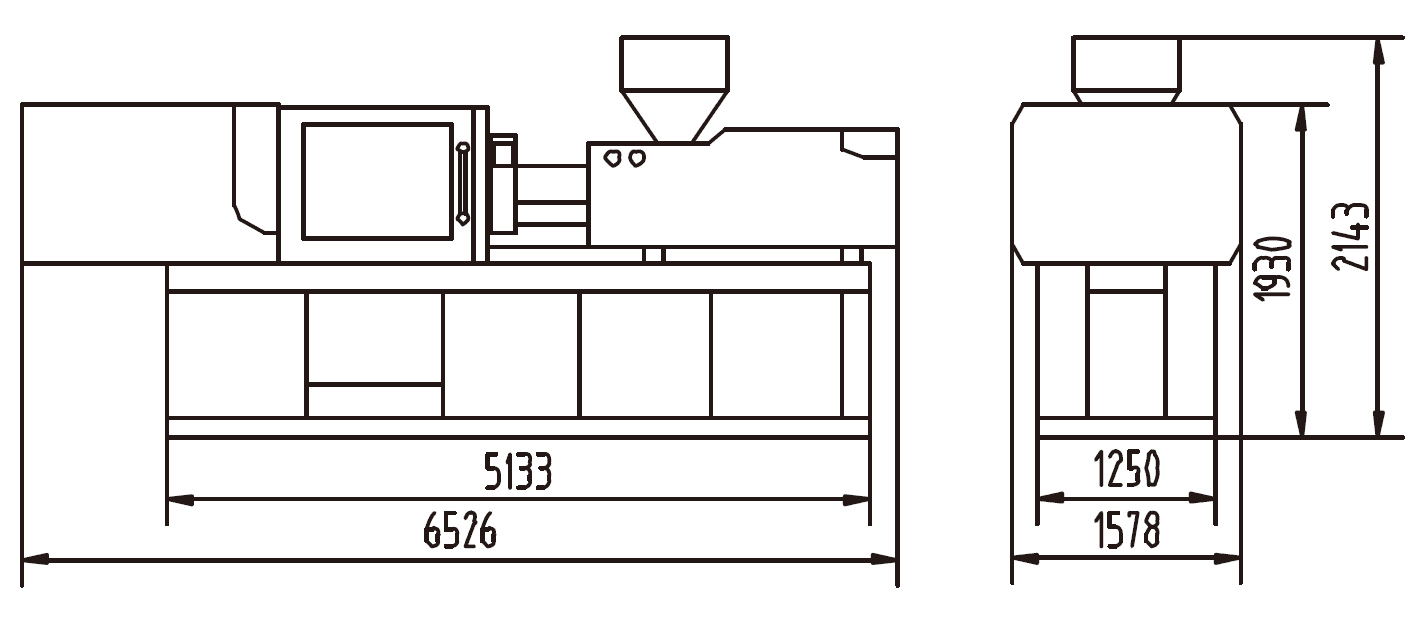

The HXM 328/1600 is a servo energy‑saving injection molding machine built for efficient, stable, and high‑precision production of medium to large molded parts. It delivers a clamping force of 3280 kN and supports screw diameters of 55, 60, and 65 mm, resulting in a theoretical injection capacity from 736 to 1028 cm³. The injection pressure ranges between 218 and 135 MPa, with a plasticizing capacity that varies from 33 to 50 g/s. The system operates at a pump pressure of 17.5 MPa, powered by a 40 kW servo motor, and has a heating capacity of 24.15 kW. The machine provides a mold opening stroke of 640 mm, a mold height range from 230 to 690 mm, and tie‑bar spacing of 670 × 610 mm. Overall dimensions are 6.53 × 1.58 × 2.15 meters, with a weight of approximately 9.2 tons and an oil tank capacity of 370 liters. The HXM 328/1600 combines servo‑hydraulic precision with rapid response and energy efficiency, ensuring steady injection performance and reduced operational costs. It is well suited for producing automotive components, large packaging items, and structural plastic parts requiring high dimensional accuracy.
