HX(*)368-I/2300

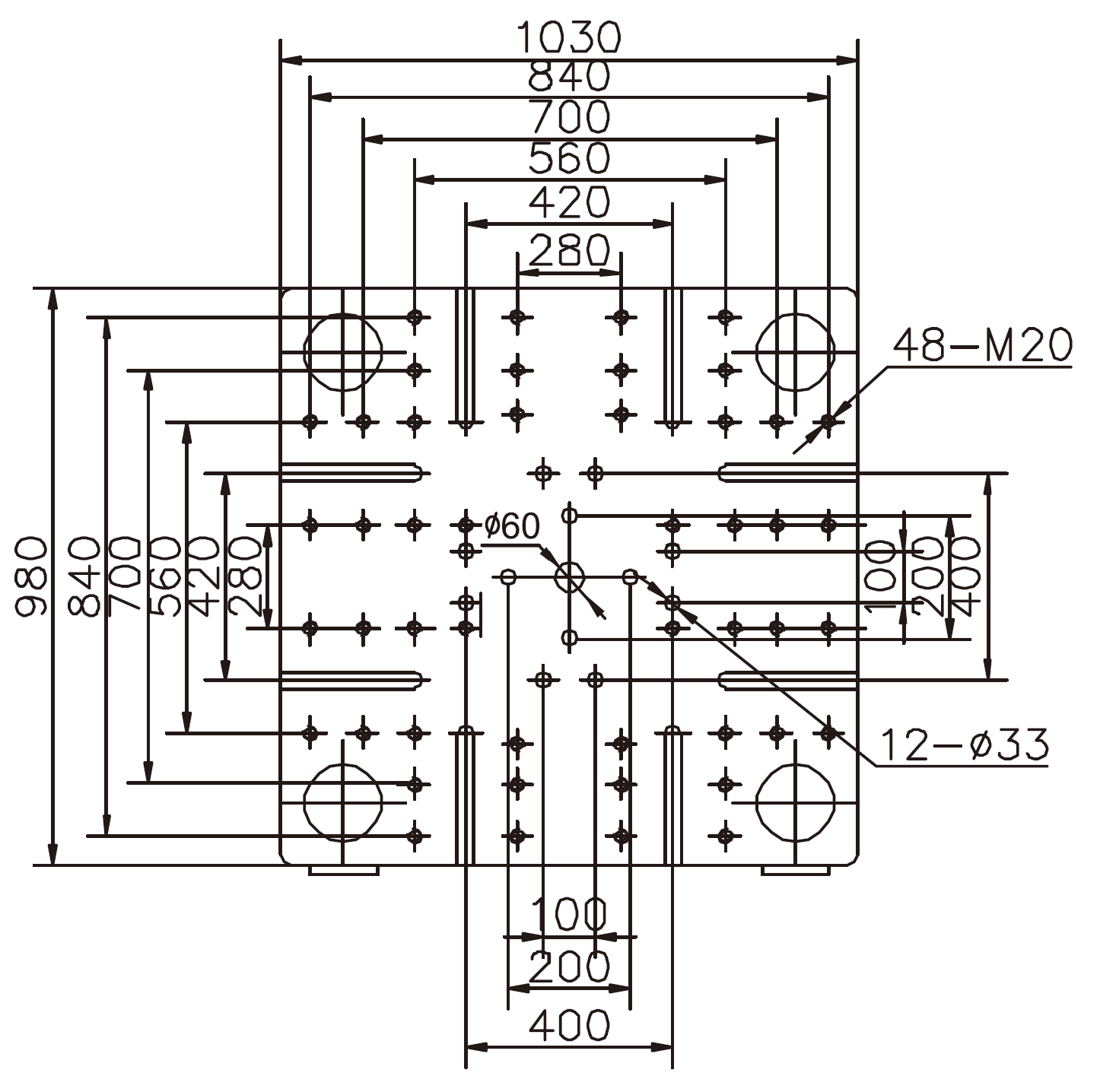

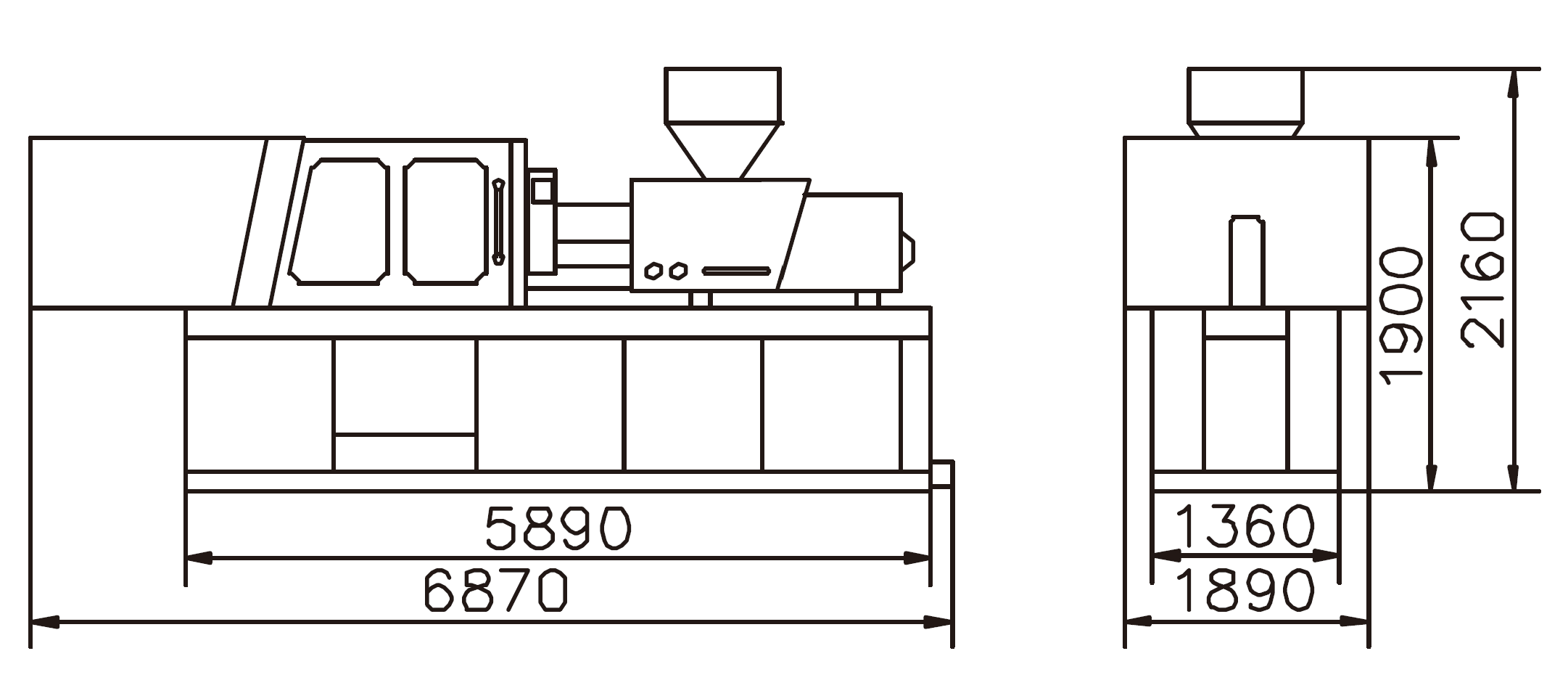

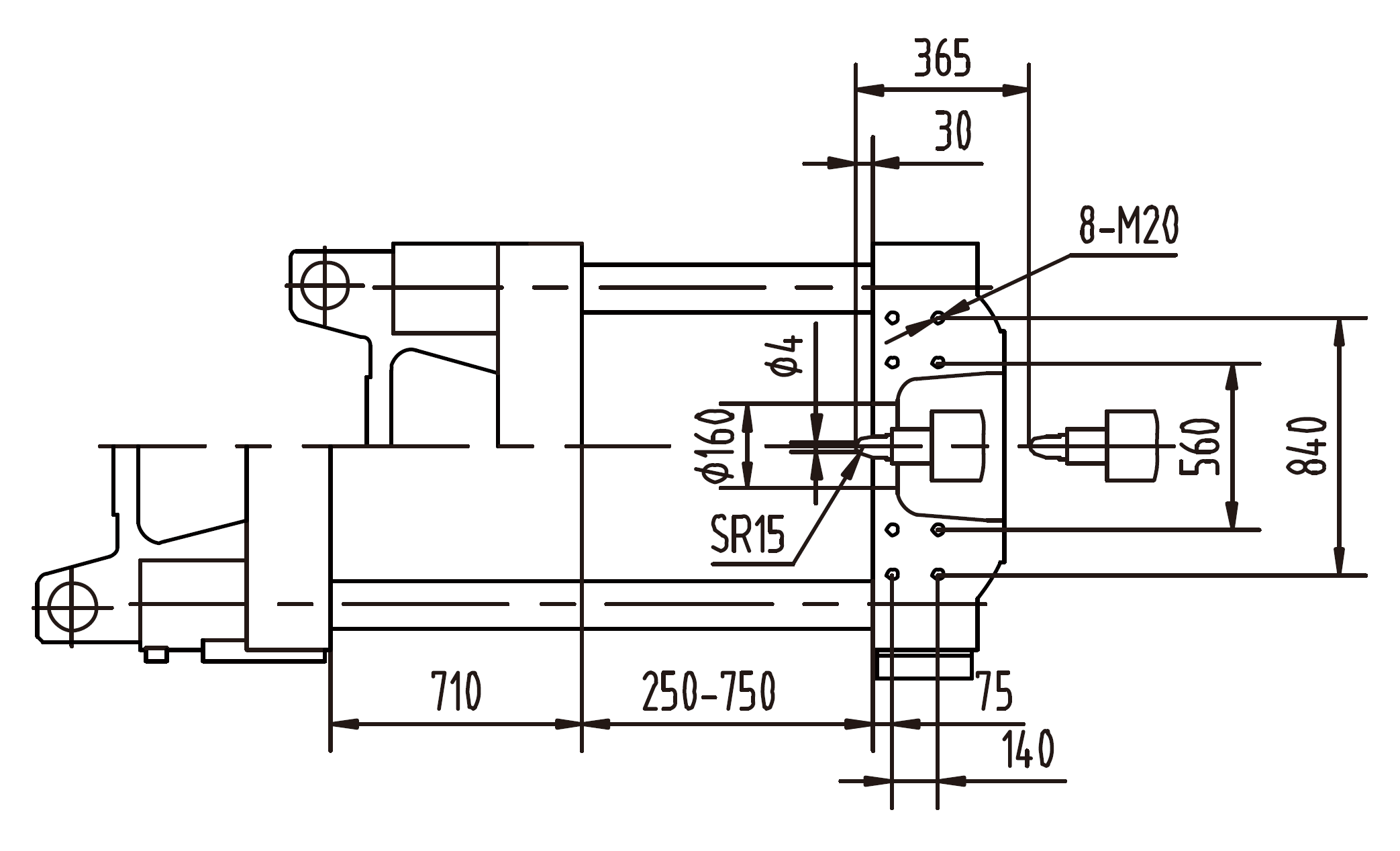

The HXM 368‑I/2300 is a servo energy‑saving injection molding machine designed for stable performance, high precision, and efficient energy use in medium to large plastic part production. It provides a clamping force of 3680 kN and offers screw diameters of 60, 65, and 70 mm, resulting in a theoretical injection capacity from 989 to 1346 cm³. The injection pressure ranges between 239 and 176 MPa, with a plasticizing capacity of 40 to 47 g/s depending on the screw size. The system operates at a pump pressure of 17.5 MPa, powered by a 40 kW servo motor, and has a heating capacity of 27.3 kW. The clamping unit features a mold opening stroke of 710 mm, mold height range from 250 to 750 mm, and tie‑bar spacing of 720 × 690 mm. The overall dimensions are 6.87 × 1.89 × 2.16 meters, with a machine weight of about 12.6 tons and an oil tank capacity of 420 liters. With its responsive servo‑hydraulic control and high injection consistency, the HXM 368‑I/2300 delivers fast cycle times, precise molding results, and notable energy savings. It is ideal for producing industrial containers, automotive components, and medium‑sized structural or packaging parts.
