HX(*)368-II/2400

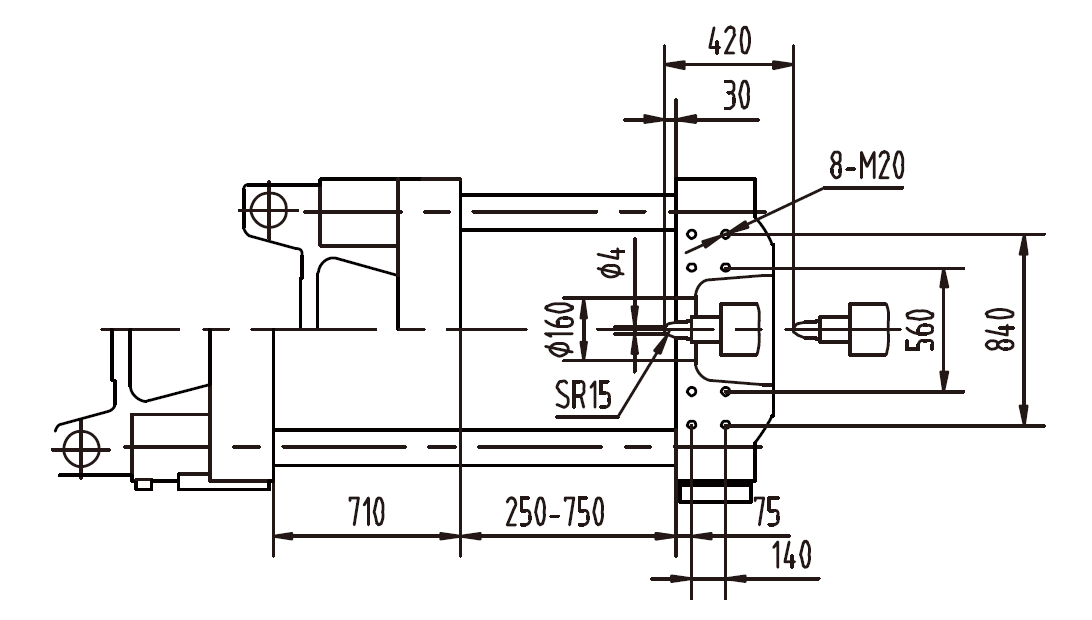

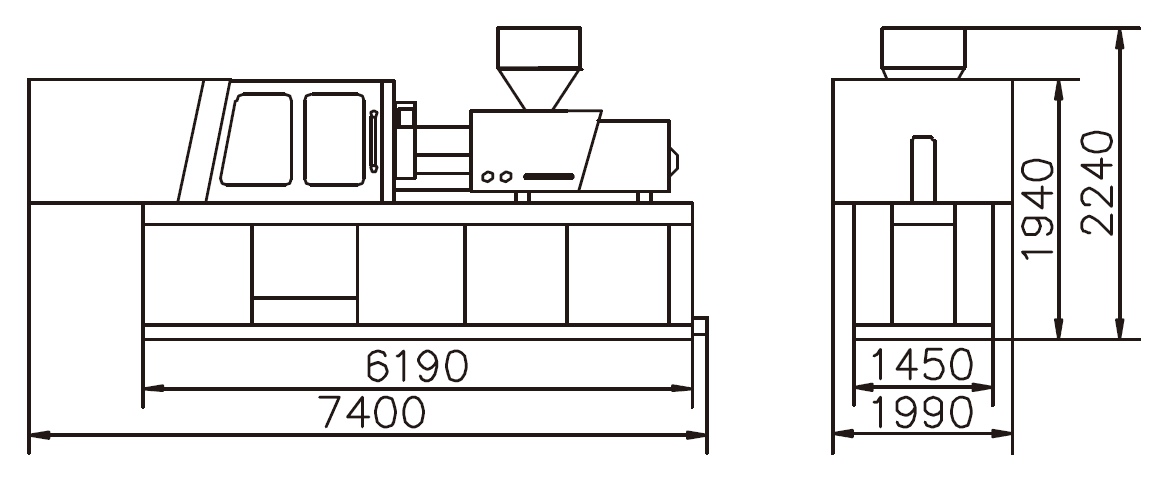

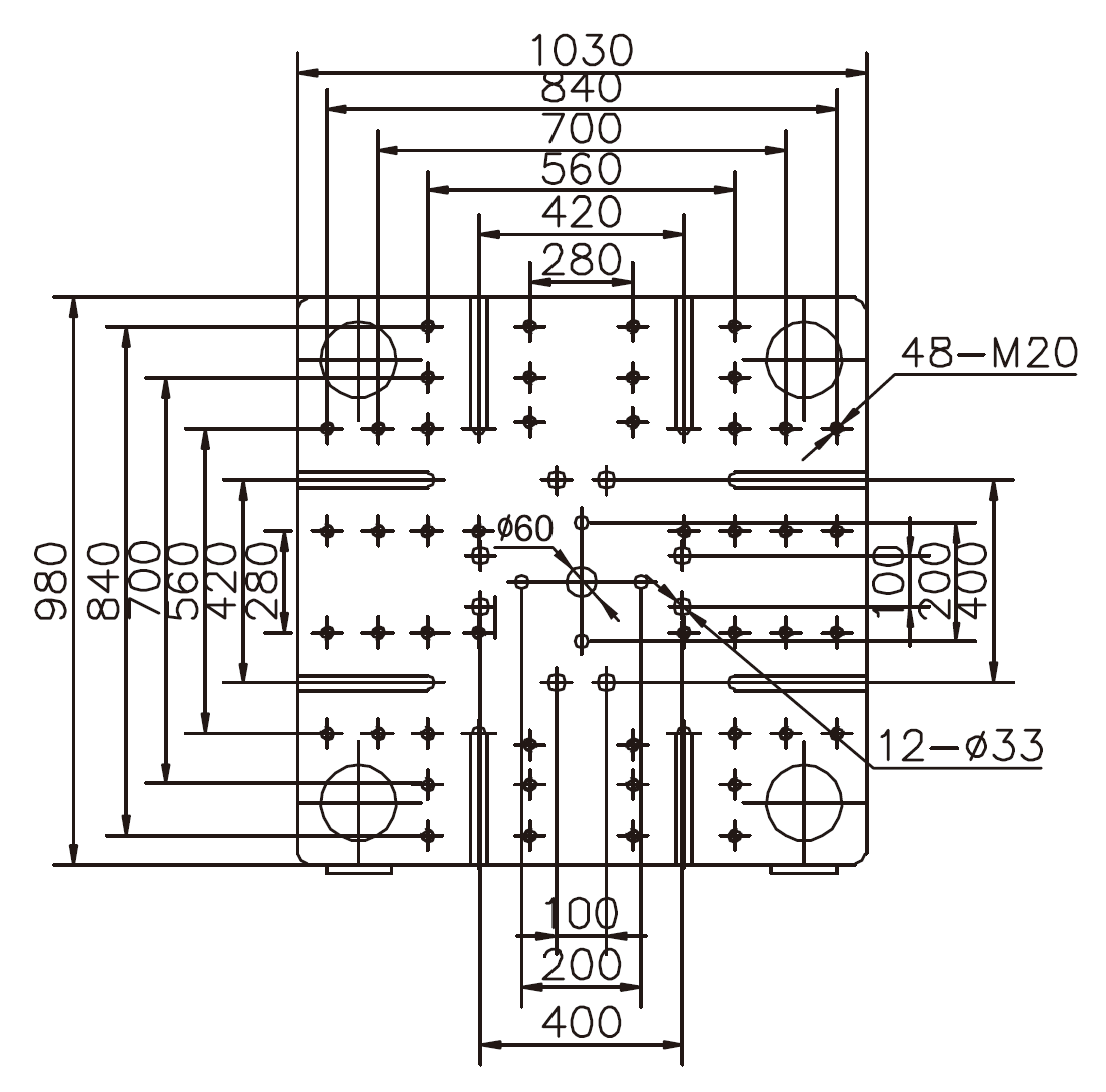

The HXM 368‑II/2400 is a servo energy‑saving injection molding machine developed for precise, efficient, and reliable performance in medium‑to‑large molding applications. It offers a clamping force of 3680 kN and features screw diameters of 65, 70, and 75 mm, resulting in an injection capacity from 1211 to 1612 cm³. The injection pressure ranges between 198 and 149 MPa, while the plasticizing capacity varies from 42 to 52 g/s. The machine operates with a 40 kW servo motor, a heating capacity of 32.2 kW, and a pump pressure of 17.5 MPa. It provides a mold opening stroke of 710 mm, mold height range from 250 to 750 mm, and tie‑bar spacing of 720 × 690 mm. The overall dimensions are 7.4 × 1.99 × 2.24 m, the machine weight is around 13.0 tons, and the oil tank capacity is 420 liters. With closed‑loop servo‑hydraulic control, the HXM 368‑II/2400 ensures stable injection pressure, fast response, and energy savings up to 60 percent. It is suited for producing automotive components, household product housings, crates, and other medium plastic molded parts that demand consistency and strength.
