HX(*)428-I/2400

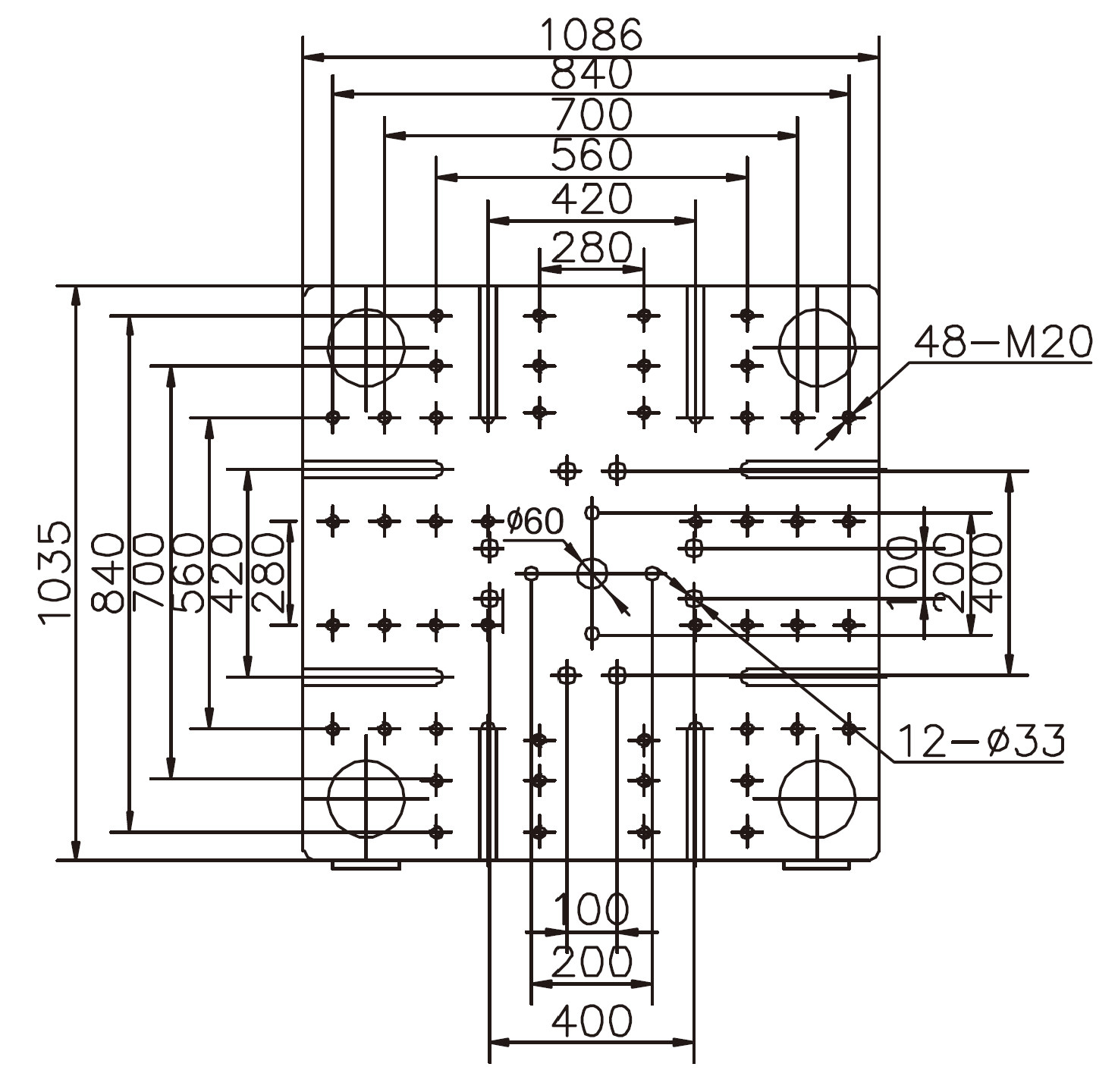

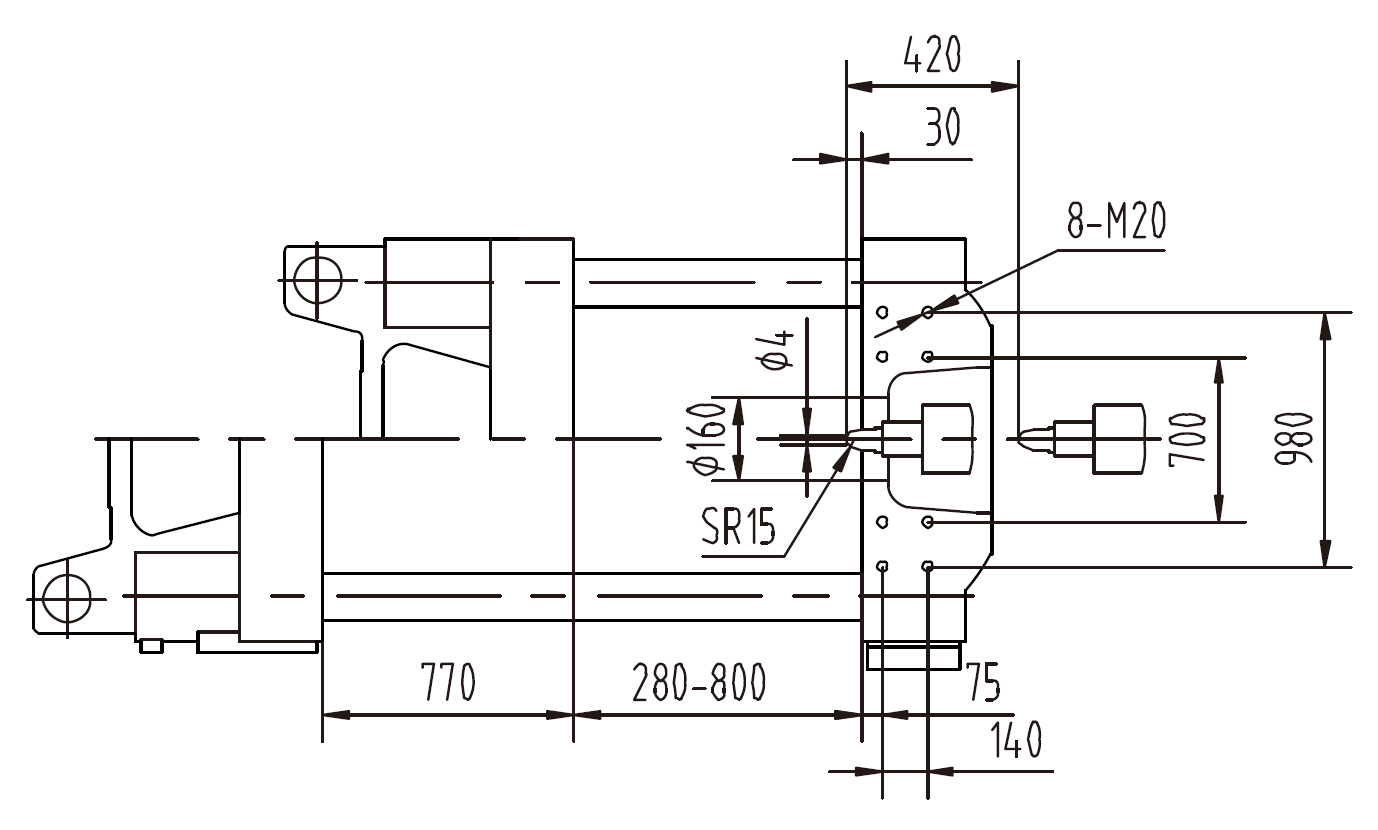

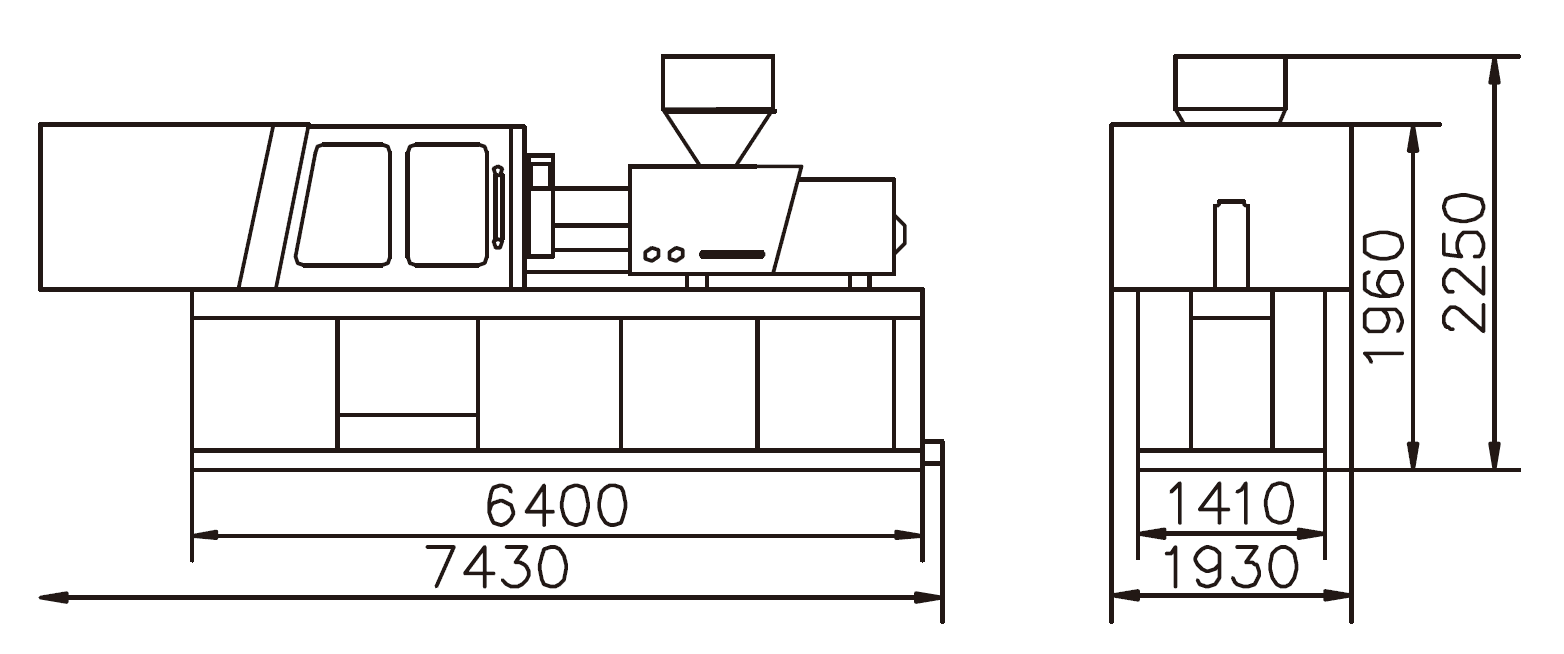

The HXM 428‑I/2400 is a servo energy‑saving injection molding machine engineered for high precision, stability, and energy efficiency in medium‑to‑large plastic part production. It delivers a clamping force of 4280 kN and supports screw diameters of 65 and 70 mm, providing a theoretical injection capacity of 1211 to 1401 cm³. The injection pressure ranges from 198 to 171 MPa, and the plasticizing capacity is between 42 and 47 g/s. The system operates with a pump pressure of 17.5 MPa, a 40 kW servo motor, and a heating capacity of 32.2 kW. The clamping unit features a mold opening stroke of 770 mm, a mold height range from 280 to 800 mm, and tie‑bar spacing of 770 × 740 mm. The machine’s overall dimensions are 7.43 × 1.93 × 2.25 meters, with an approximate weight of 14.6 tons and an oil tank capacity of 420 liters. The HXM 428‑I/2400 combines a servo‑hydraulic drive for fast response and precise pressure control, achieving both high efficiency and low energy consumption. It is particularly suitable for industrial containers, packaging products, automotive parts, and other molded components requiring strong, accurate, and consistent results.
