HX(*)488-I/3300

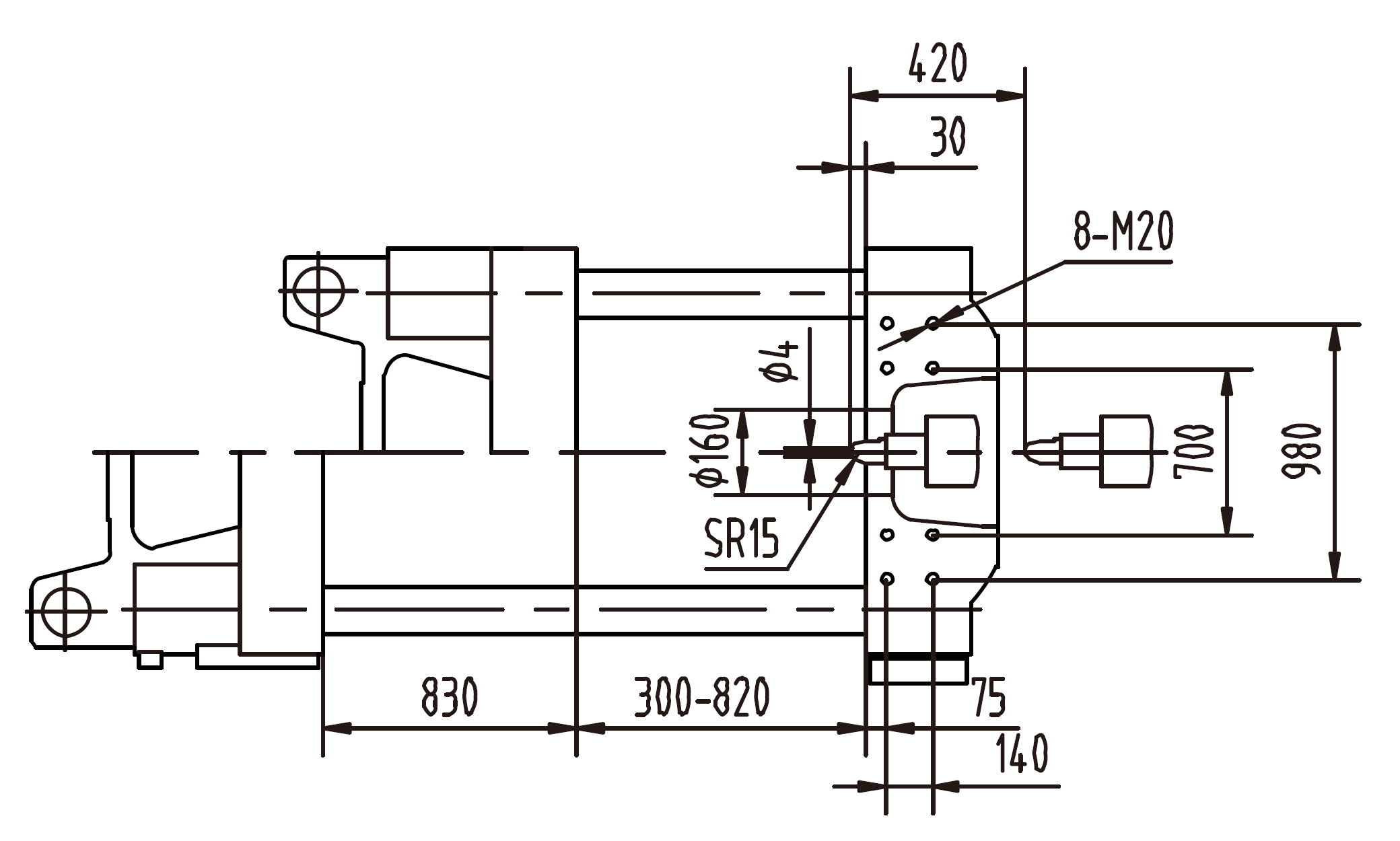

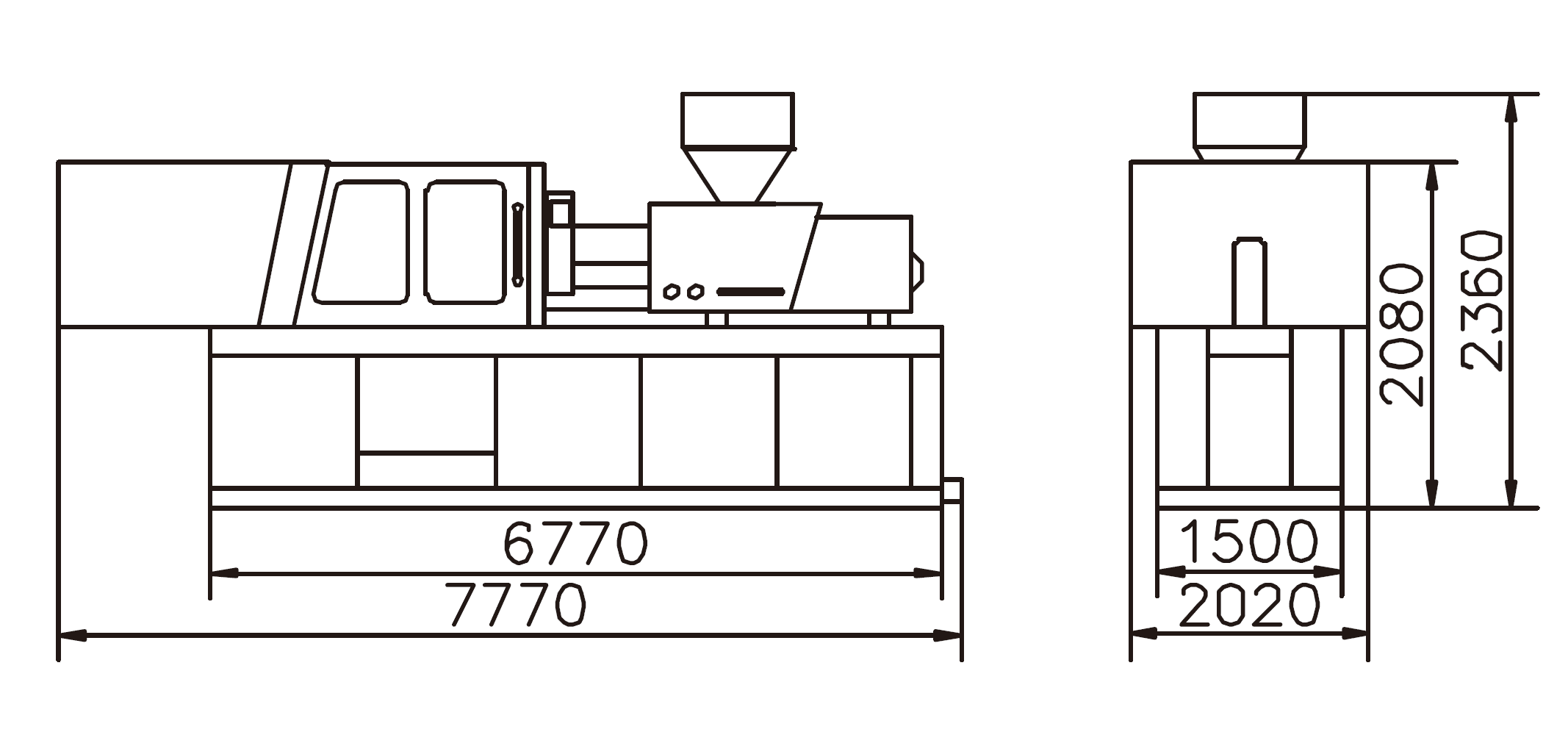

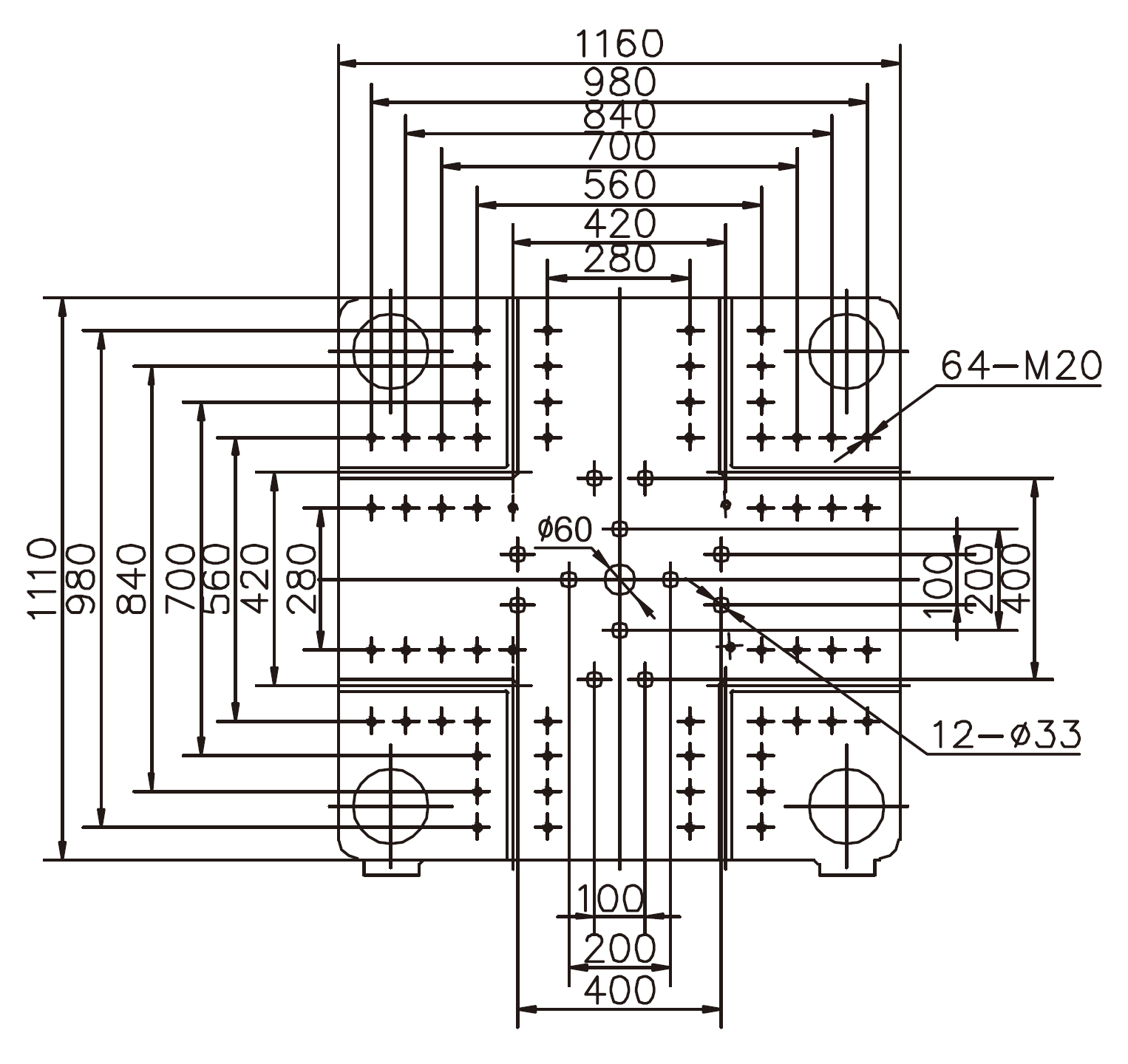

The HXM 488‑I/3300 is a servo energy‑saving injection molding machine developed for stable, precise, and efficient production of medium‑to‑large plastic parts. It offers a clamping force of 4880 kN and uses screw diameters of 70 and 75 mm, resulting in a theoretical injection capacity from 1539 to 1767 cm³. The injection pressure ranges between 217 and 189 MPa, and the plasticizing capacity varies from 50 to 55 g/s. The system operates with a pump pressure of 17.5 MPa, supported by a dual 30 kW servo motor arrangement, and has a heating capacity of 35.55 kW. The clamping unit includes a mold opening stroke of 830 mm, a mold height range of 300 to 820 mm, and tie‑bar spacing of 820 × 800 mm. The overall machine dimensions are 7.77 × 2.02 × 2.36 meters, with an approximate weight of 17.3 tons and an oil tank capacity of 530 liters. With its high‑response servo‑hydraulic control, the HXM 488‑I/3300 ensures steady injection pressure, fast cycle times, and significant energy savings while maintaining precise molding accuracy. This model is well suited for producing automotive, industrial, packaging, and household plastic components that demand both strength and consistency.
