HX(*)488-II/3800

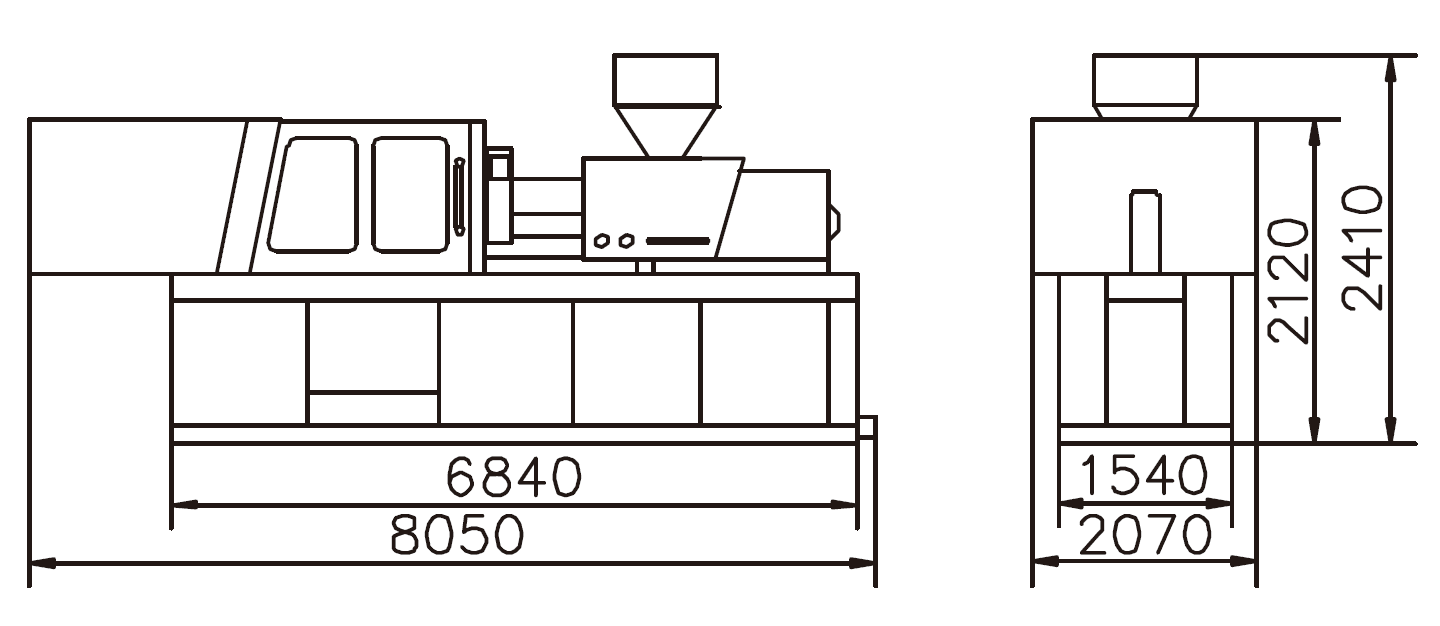

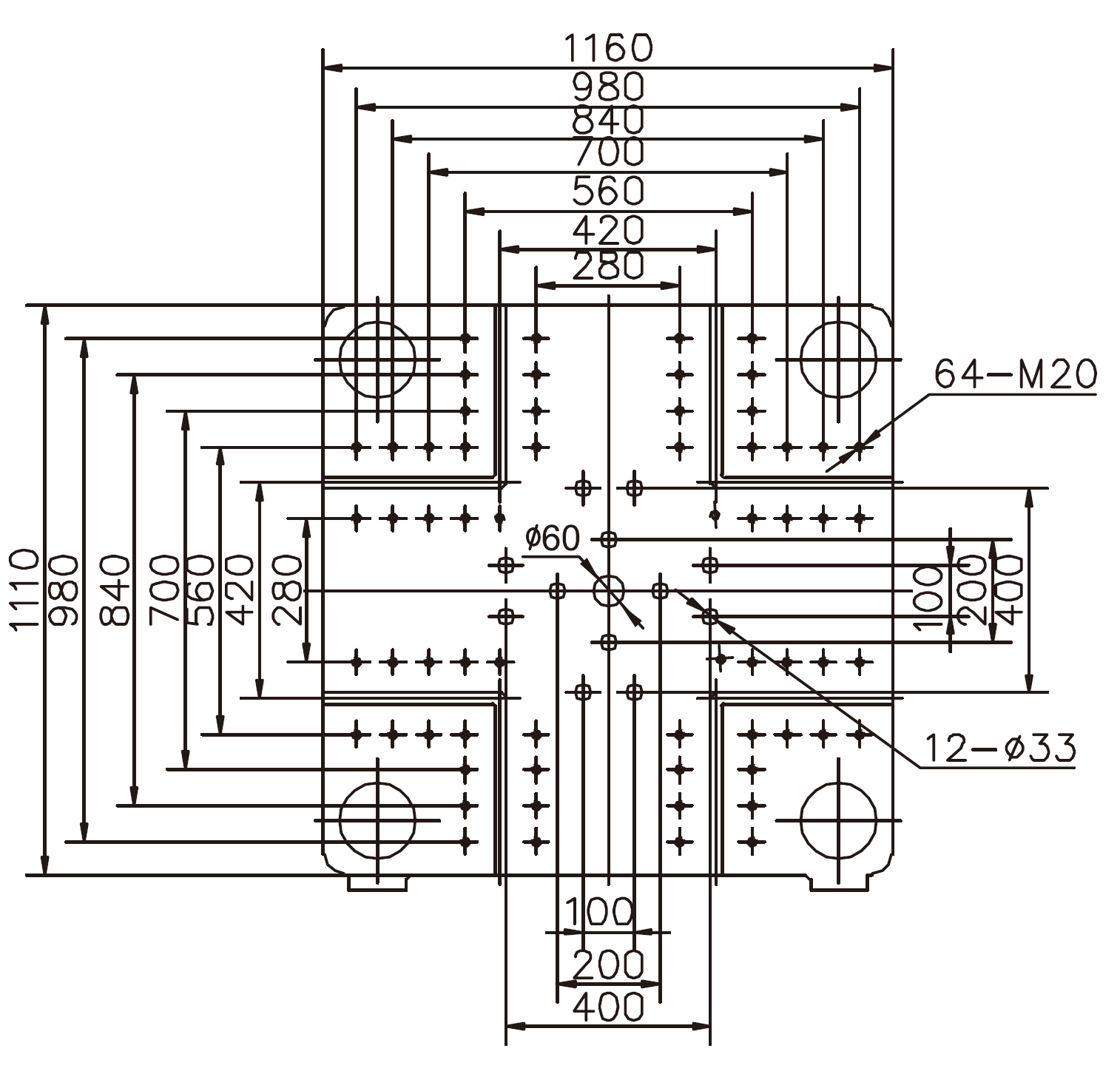

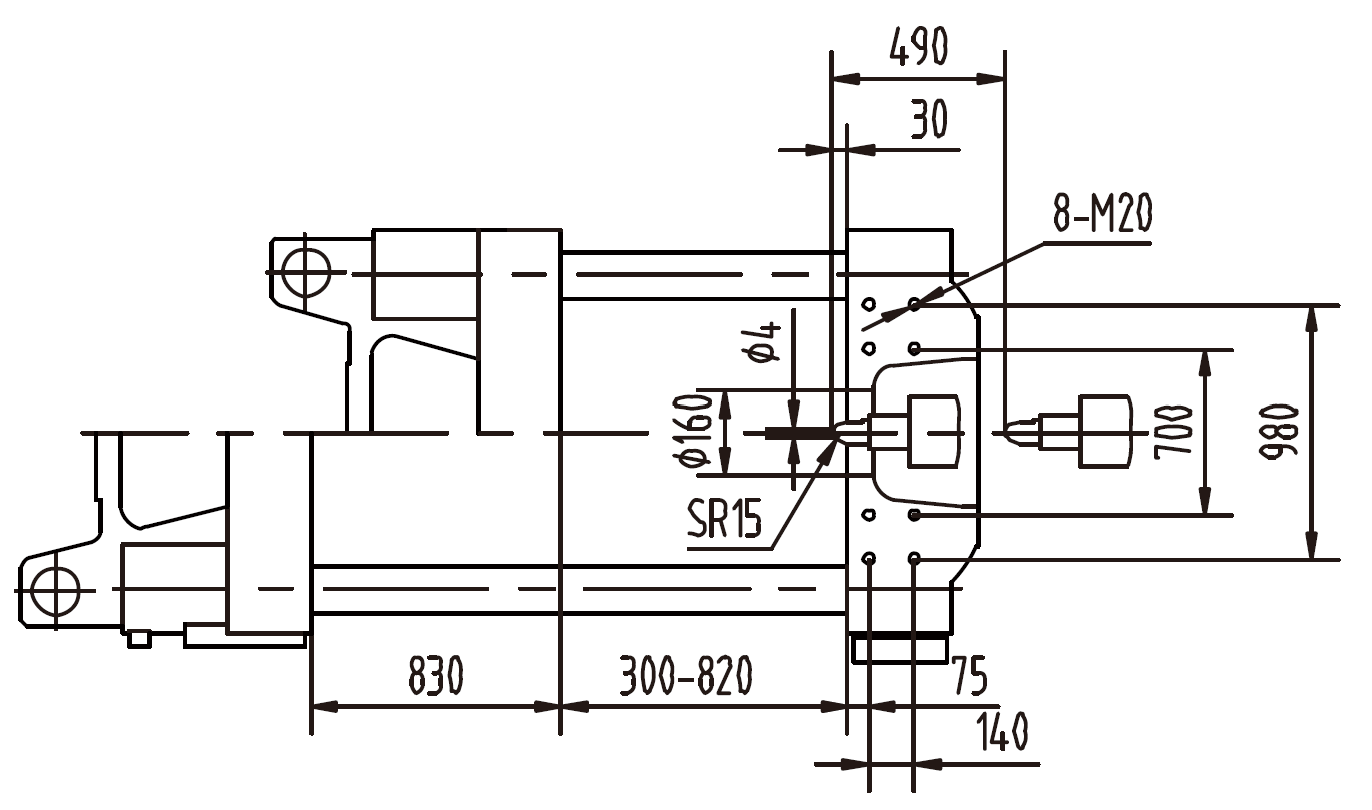

The HXM 488‑II/3800 is a servo energy‑saving injection molding machine built for precise, efficient, and stable production of medium to large plastic components. It delivers a clamping force of 4880 kN and supports screw diameters of 75, 80, and 85 mm, which provide a theoretical injection capacity between 1,855 and 2,383 cm³. The corresponding injection pressure ranges from 209 to 162 MPa, and the plasticizing capacity varies from 55 to 70 g/s. The machine operates at a pump pressure of 17.5 MPa, using a dual 30 kW servo motor configuration and a heating capacity of 38.55 kW. The clamping system has a mold opening stroke of 830 mm, accommodates molds from 300 to 820 mm in height, and features tie‑bar spacing of 820 × 800 mm. Its overall dimensions are 8.05 × 2.07 × 2.41 meters, with an approximate weight of 17.9 tons and an oil tank capacity of 630 liters. The HXM 488‑II/3800 combines a responsive servo‑hydraulic drive with closed‑loop control for accuracy and energy efficiency, ensuring consistent molding quality, reduced cycle times, and lower operating costs. It is ideal for manufacturing automotive parts, logistics containers, large household items, and other products requiring reliable, high‑tonnage molding performance.
