HX(*)750/6100

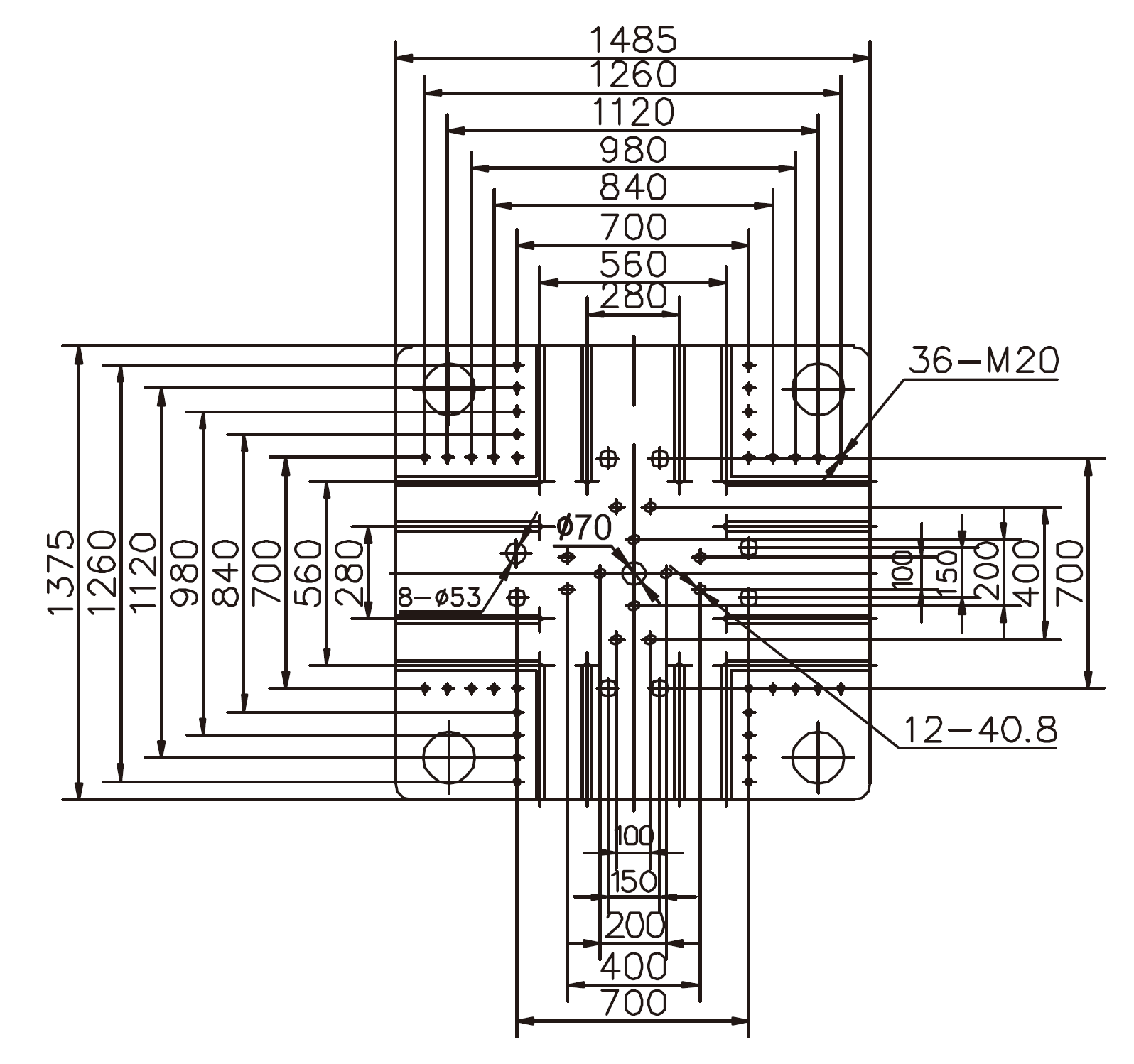

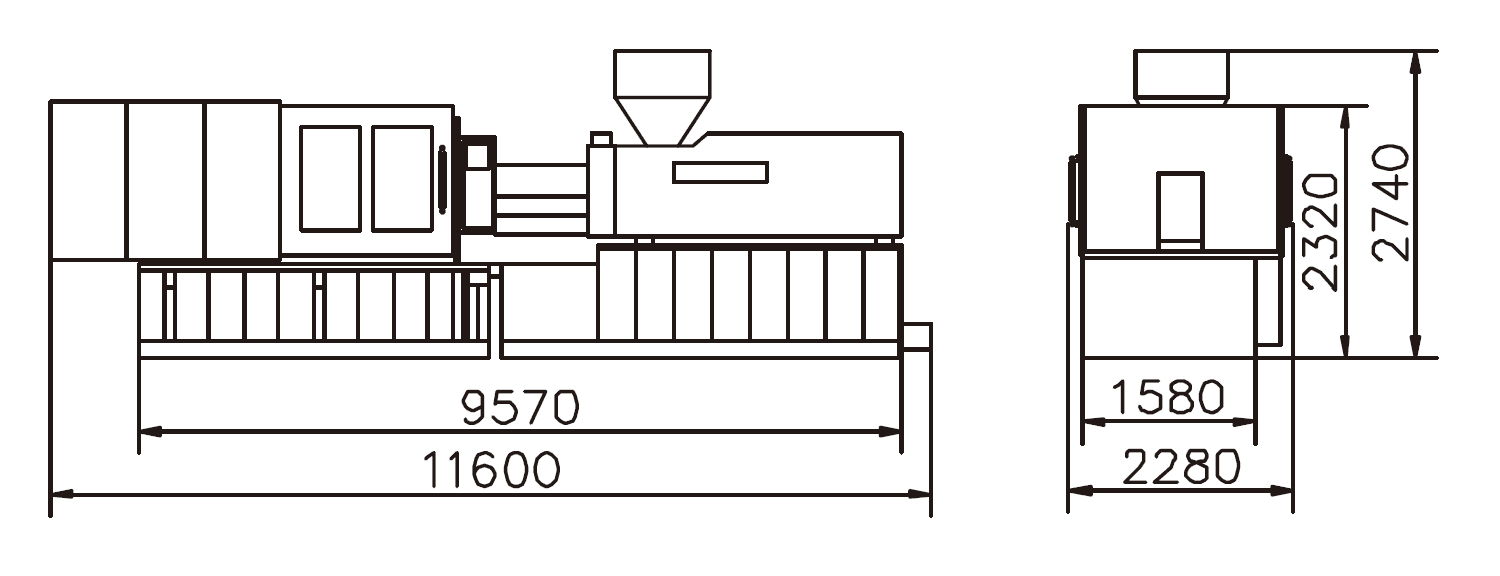

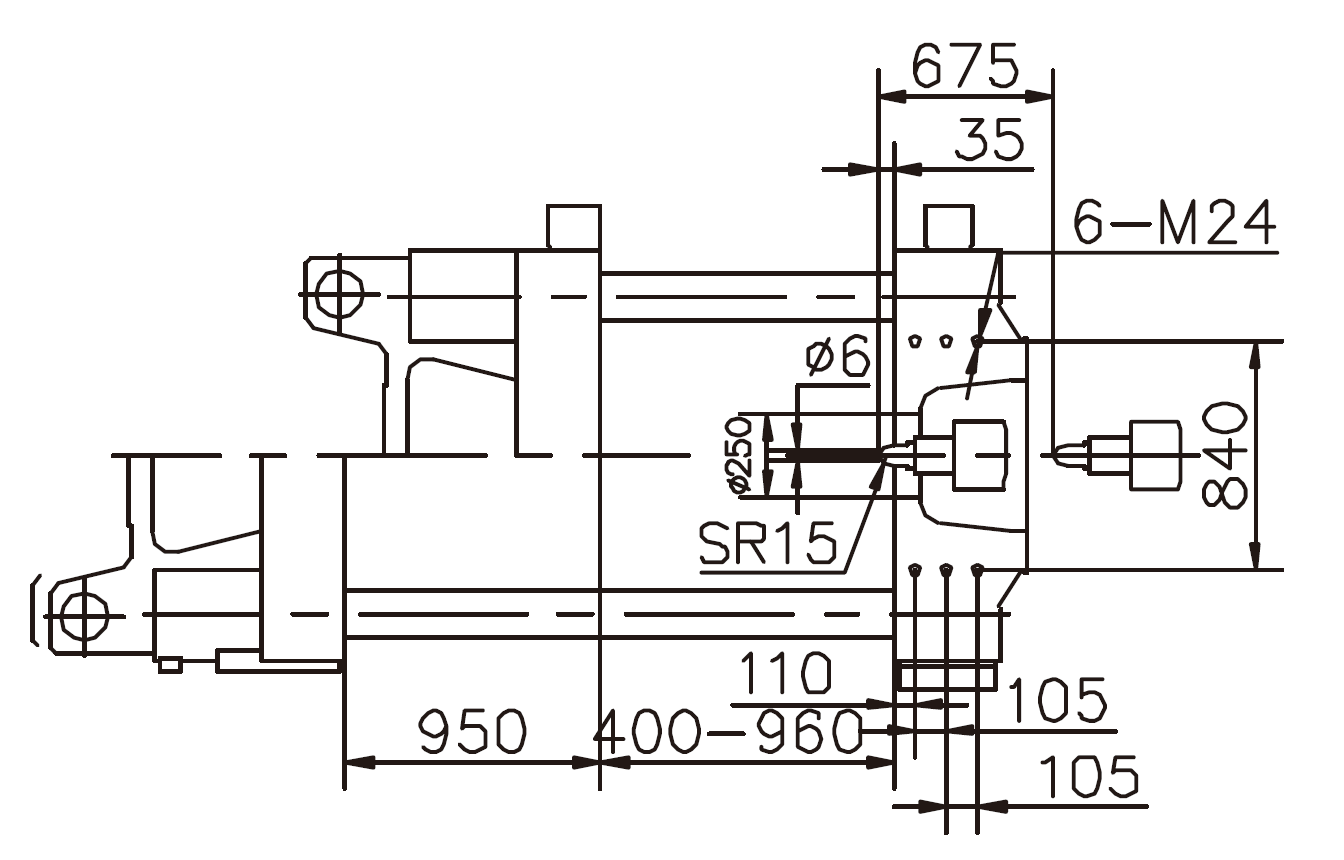

The HXM 750/6100 is a servo energy‑saving injection molding machine built for high‑tonnage, precision production of large plastic components. It delivers a clamping force of 7500 kN and supports screw diameters of 90, 95, 100, and 105 mm, providing a theoretical injection capacity from 2861 to 3894 cm³. The injection pressure ranges between 213 and 157 MPa, while the plasticizing capacity varies from 76 to 98 g/s depending on the screw size. The machine runs at a pump pressure of 17.5 MPa, powered by dual 40 kW servo motors, with a total heating capacity of 62.2 kW. The clamping unit features a mold opening stroke of 1020 mm, supports mold heights between 400 and 980 mm, and has tie‑bar spacing of 1020 × 970 mm. The machine measures 11.60 × 2.28 × 2.74 meters, weighs about 39 tons, and includes an oil tank capacity of 1000 liters. Designed for accuracy, energy efficiency, and durability, the HXM 750/6100 uses a servo‑hydraulic system to deliver fast response and stable injection performance. It is ideal for manufacturing large automotive parts, industrial containers, appliance housings, and other products requiring consistent quality and high clamping power.
