HXM Servo Energy-Saving

HX(*)108/390

The HXM 108/390 is a high-precision, servo-driven injection molding machine developed for efficient and stable production of small to medium-sized parts. Utilizing a responsive servo-hydraulic system, it offers precise pressure and flow management alongside energy savings of up to 60%, making it ideal for electronics, packaging, and consumer product manufacturing. Key Technical Specifications: Clamping Force: 1080 kN Injection Capacity: 101 to 207 cm³ (depending on screw choice) Screw Diameters: 28 mm to 40 mm Injection Performance: 190 to 388 MPa pressure with plasticizing up to 18 g/s Power System: 16 kW servo motor and 10.75 kW heating capacity Mold Dimensions: 360 mm clamping stroke; 150–400 mm mold height range Tie-bar Spacing: 360 × 360 mm Physical Footprint: 4.28 × 1.05 × 1.86 meters; ~3.4-ton weight Specialized Features: 160-liter oil tank, high-precision control for intricate parts, and an optimized servo-hydraulic drive for reduced noise and energy consumption.

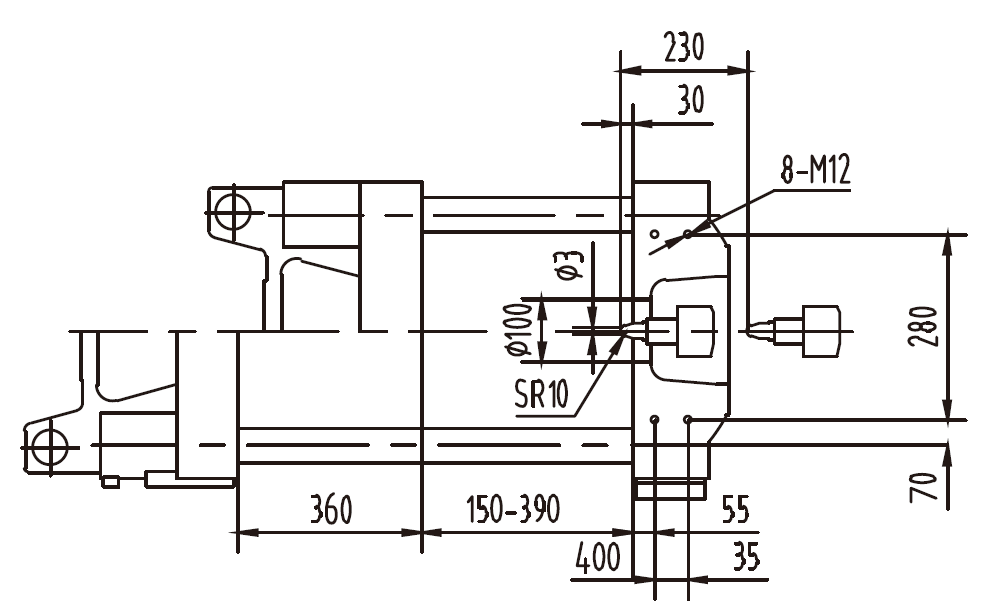

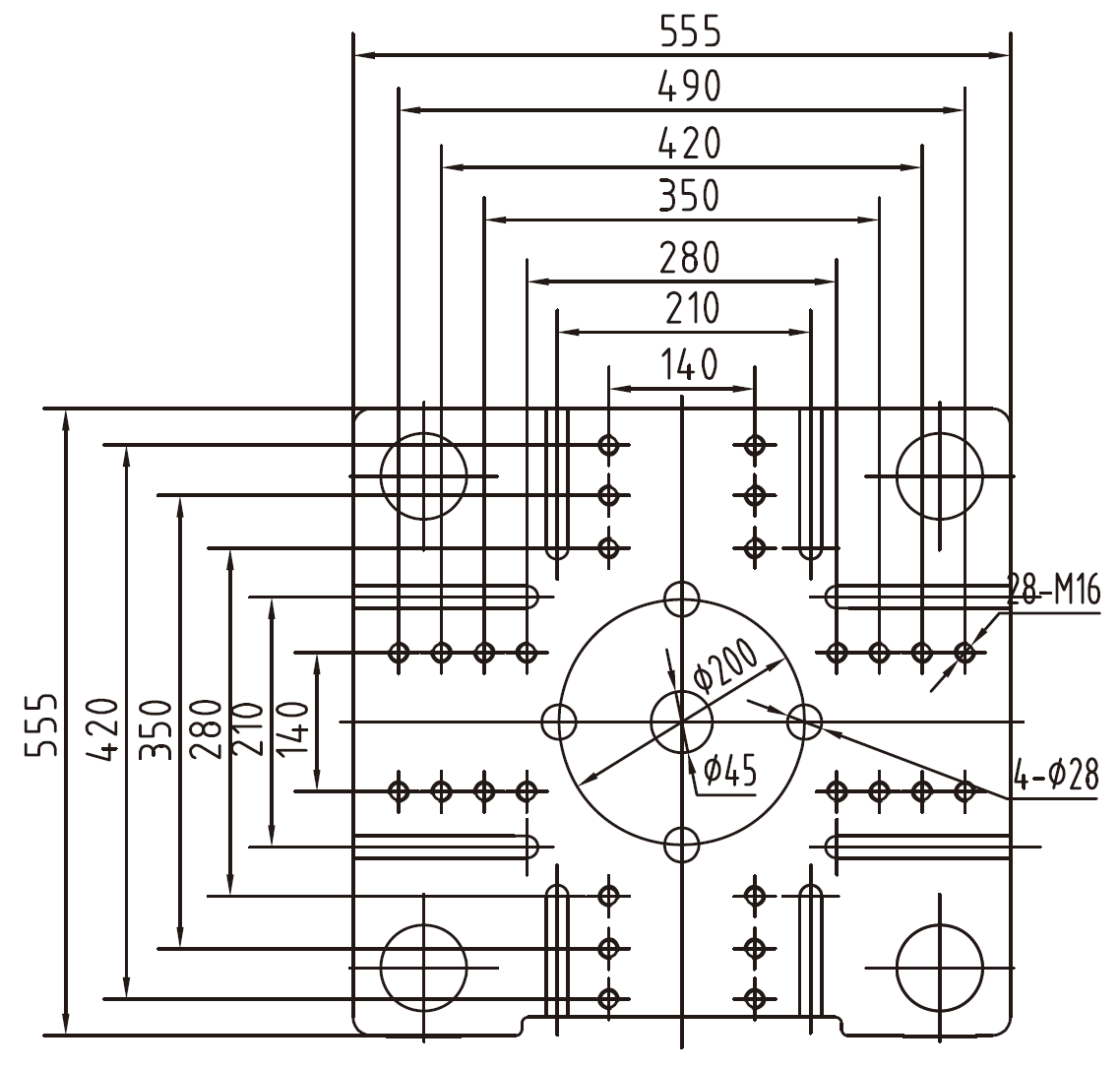

Dimension drawings

Specifications

Due to continual improvement, specifications are subject to change without notification.

Parameter	Unit	a	A	B	C
Injection Unit
Screw diameter	mm	28	32	36	40
Screw L/D ratio	L/D	22.5	23.2	20.6	20.6
Injection capacity in theory	cm³	101	132	168	207
Injection weight	g	92	120	153	188
Injection weight	oz	3.2	4.2	5.3	6.6
Injection pressure	MPa	388	297	234	190
Injection rate	g/s	62	82	103	128
Plasticizing capacity	g/s	8	11	13	18
Screw speed	rpm	290
Clamping Unit
Clamping force	kN	1080
Moving mould-plate stroke	mm	360
Max. mould height	mm	400
Min. mould height	mm	150
Space between tie-bars	mm	360 x 360
Hydraulic ejector force	kN	49
Hydraulic ejector stroke	mm	120
Ejector number	n	5
Other
Pump pressure	MPa	17.5
Motor power	kW	16
Heating capacity	kW	10.75
Machine dimension	m	4.28 x 1.05 x 1.86
Machine weight	t	3.4
Oil tank capacity	L	160
