HXM Servo Energy-Saving

HX(*)258-I/870

The HXM 258-I/870 is a balanced and efficient servo injection molding machine built for medium-sized plastic product manufacturing. By combining a rapid-response servo-hydraulic drive with precise pressure and flow control, it delivers high molding repeatability and reduced cycle times for industrial, packaging, and consumer goods. Key Technical Specifications: Clamping Force: 2580 kN Injection Capacity: 381 to 678 cm³ (depending on screw choice) Screw Diameters: 45 mm, 50 mm, 55 mm, or 60 mm Injection Performance: 129 to 229 MPa pressure with plasticizing up to 40 g/s Power System: 30 kW servo motor and 18.1 kW heating capacity Mold Dimensions: 560 mm opening stroke; 200–610 mm mold height range Tie-bar Spacing: 580 × 540 mm Physical Footprint: 5.76 × 1.44 × 2.15 meters; ~7.4-ton weight Specialized Features: 280-liter oil tank, 17.5 MPa pump pressure, and an optimized hydraulic system for substantial energy savings and consistent output.

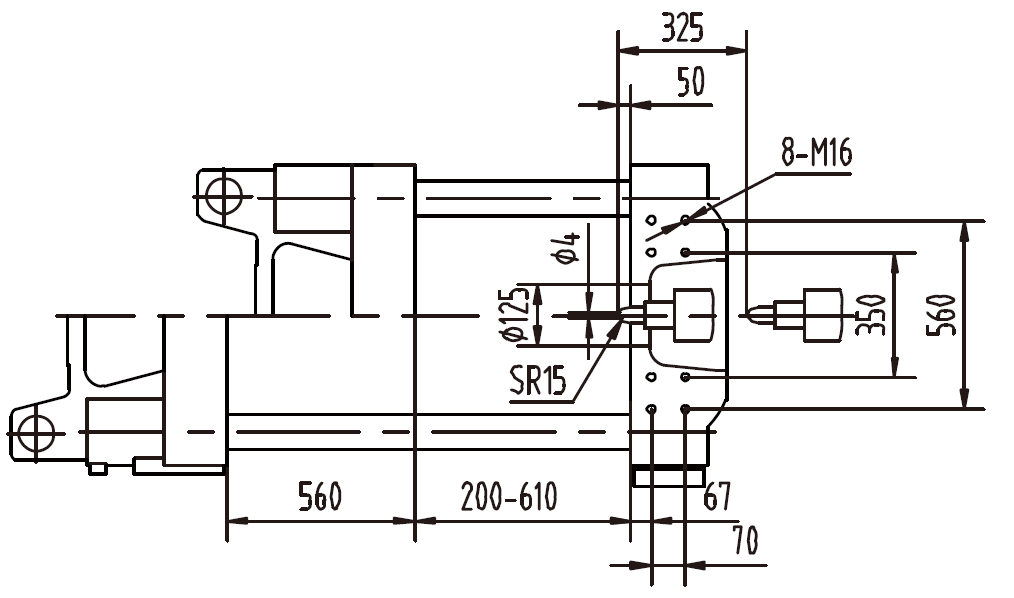

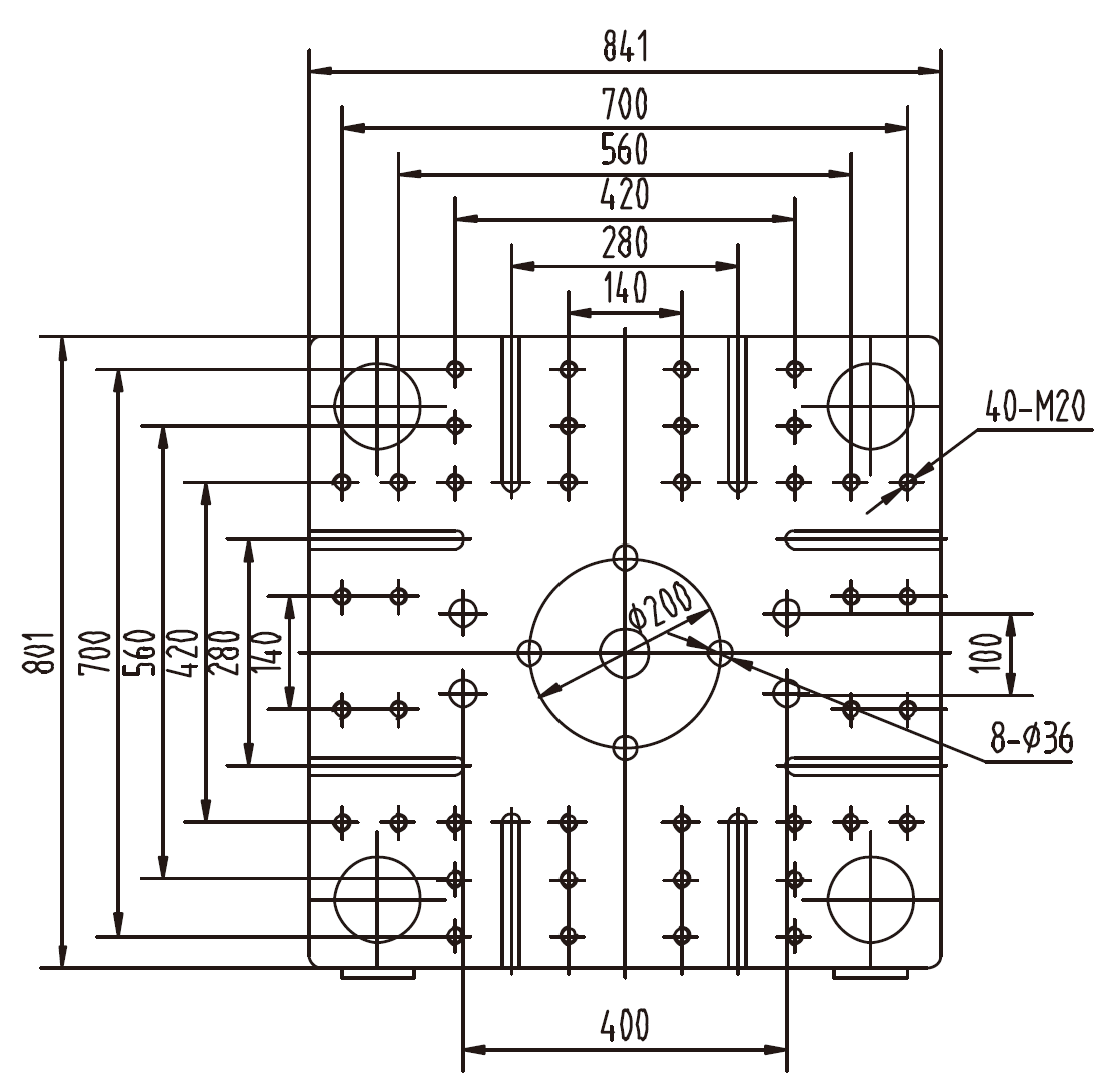

Dimension drawings

Specifications

Due to continual improvement, specifications are subject to change without notification.

Parameter	Unit	A	B	C	D
Injection Unit
Screw diameter	mm	45	50	55	60
Screw L/D ratio	L/D	24	21.6	19.6	19.5
Injection capacity in theory	cm³	381	471	570	678
Injection weight	g	347	428	518	617
Injection weight	oz	12.2	15.1	18.2	21.7
Injection pressure	MPa	229	186	153	129
Injection rate	g/s	167	206	219	297
Plasticizing capacity	g/s	20	26	33	40
Screw speed	rpm	200
Clamping Unit
Clamping force	kN	2580
Moving mould-plate stroke	mm	560
Max. mould height	mm	610
Min. mould height	mm	200
Space between tie-bars	mm	580 x 540
Hydraulic ejector force	kN	86
Hydraulic ejector stroke	mm	150
Ejector number	n	9
Other
Pump pressure	MPa	17.5
Motor power	kW	30
Heating capacity	kW	18.1
Machine dimension	m	5.76 x 1.44 x 2.15
Machine weight	t	7.4
Oil tank capacity	L	280
