HXM Servo Energy-Saving

HX(*)288-I/1100

The HXM 288‑I/1100 is a high-efficiency servo injection molding machine engineered for reliability and precision in medium-sized manufacturing applications. Utilizing a high-efficiency servo-hydraulic drive and closed-loop control, it provides consistent hydraulic performance and rapid cycle response, making it ideal for the production of automotive, packaging, and general industrial components. Key Technical Specifications: Clamping Force: 2880 kN Injection Capacity: 593 to 829 cm³ (depending on screw choice) Screw Diameters: 55 mm, 60 mm, or 65 mm Injection Performance: 132 to 185 MPa pressure with plasticizing up to 45 g/s Power System: 30 kW servo motor and 22.55 kW heating capacity Mold Dimensions: 600 mm opening stroke; 230–630 mm mold height range Tie-bar Spacing: 620 × 580 mm Physical Footprint: 6.10 × 1.45 × 2.15 meters; ~8.4-ton weight Specialized Features: 320-liter oil tank, 17.5 MPa system pressure, and an optimized control system for rapid cycle times and significant energy savings.

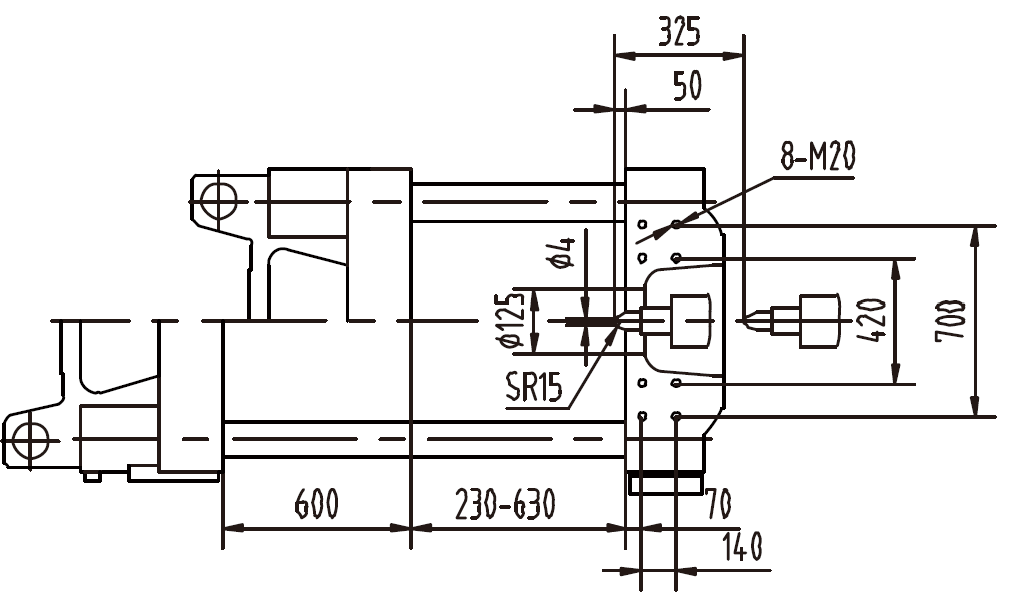

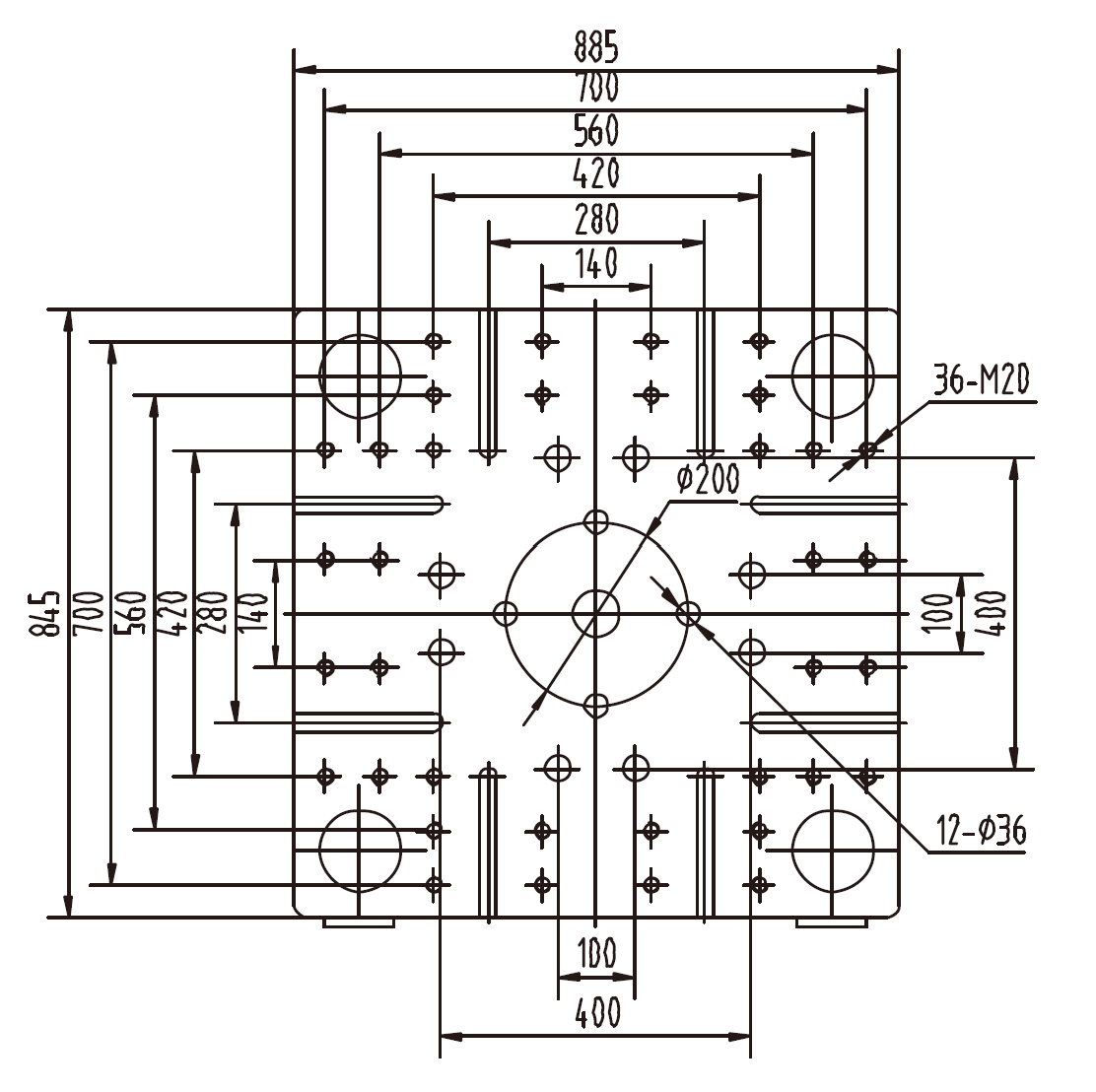

Dimension drawings

Specifications

Due to continual improvement, specifications are subject to change without notification.

Parameter	Unit	A	B	C	D
Injection Unit
Screw diameter	mm	50	55	60	65
Screw L/D ratio	L/D	23.4	21.5	19.5	19.3
Injection capacity in theory	cm³	490	593	706	829
Injection weight	g	446	540	643	754
Injection weight	oz	15.7	19	22.6	26.5
Injection pressure	MPa	224	185	155	132
Injection rate	g/s	204	247	294	345
Plasticizing capacity	g/s	26	33	40	45
Screw speed	rpm	200
Clamping Unit
Clamping force	kN	2880
Moving mould-plate stroke	mm	600
Max. mould height	mm	630
Min. mould height	mm	230
Space between tie-bars	mm	620 x 580
Hydraulic ejector force	kN	86
Hydraulic ejector stroke	mm	170
Ejector number	n	13
Other
Pump pressure	MPa	17.5
Motor power	kW	30
Heating capacity	kW	22.55
Machine dimension	m	6.10 x 1.45 x 2.15
Machine weight	t	8.4
Oil tank capacity	L	320
