HXM Servo Energy-Saving
HX(*)288-II/1600
The HXM 288‑II/1600 is a servo-driven, energy-saving injection molding machine designed for medium-sized operations requiring high precision and stability. Equipped with a fast-response servo-hydraulic system and closed-loop control, it delivers consistent injection performance, shorter cycle times, and reduced power consumption for industrial and automotive manufacturing.

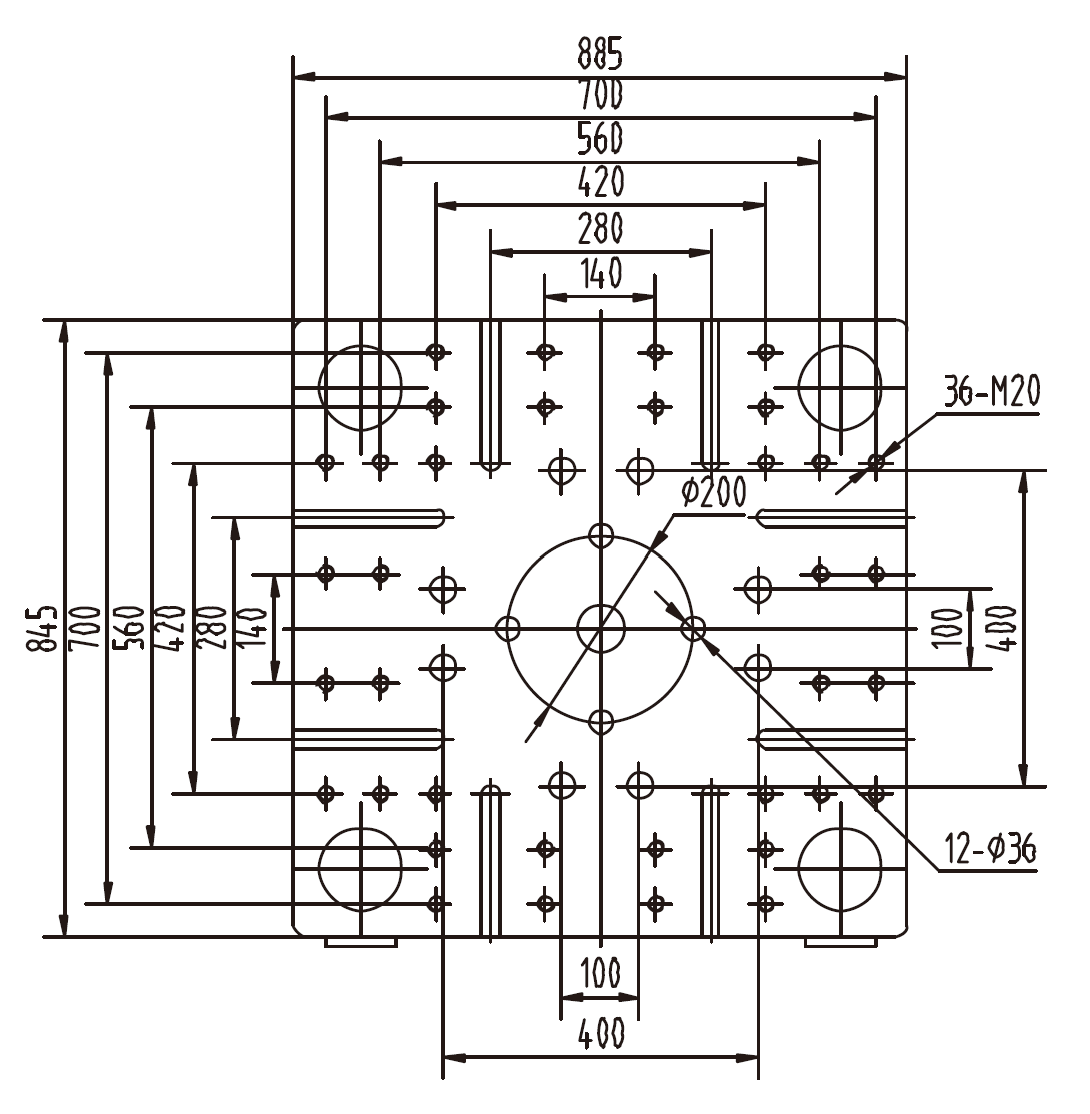

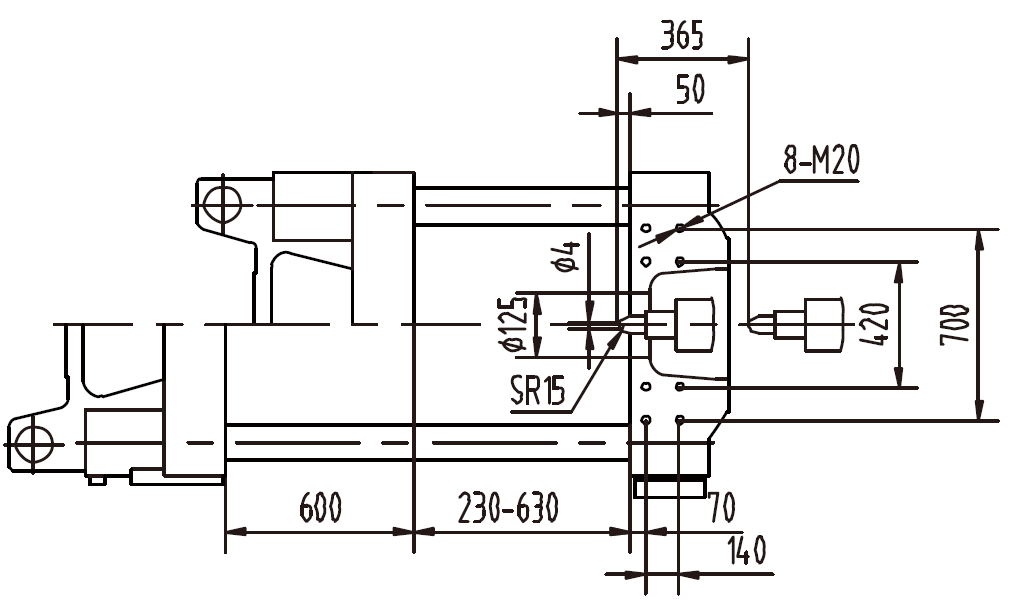

Dimension drawings
Specifications
Due to continual improvement, specifications are subject to change without notification.
| Parameter | Unit | A | B | C | D |
|---|---|---|---|---|---|
| Injection Unit | |||||
| Screw diameter | mm | 55 | 60 | 65 | 70 |
| Screw L/D ratio | L/D | 23 | 21.1 | 19.5 | 19.4 |
| Injection capacity in theory | cm³ | 736 | 876 | 1028 | 1193 |
| Injection weight | g | 670 | 797 | 936 | 1085 |
| Injection weight | oz | 23.6 | 28.7 | 33 | 38.2 |
| Injection pressure | MPa | 218 | 183 | 156 | 135 |
| Injection rate | g/s | 251 | 299 | 350 | 406 |
| Plasticizing capacity | g/s | 33 | 40 | 45 | 50 |
| Screw speed | rpm | 190 | |||
| Clamping Unit | |||||
| Clamping force | kN | 2880 | |||
| Moving mould-plate stroke | mm | 600 | |||
| Max. mould height | mm | 630 | |||
| Min. mould height | mm | 230 | |||
| Space between tie-bars | mm | 620 x 580 | |||
| Hydraulic ejector force | kN | 86 | |||
| Hydraulic ejector stroke | mm | 170 | |||
| Ejector number | n | 13 | |||
| Other | |||||
| Pump pressure | MPa | 17.5 | |||
| Motor power | kW | 40 | |||
| Heating capacity | kW | 24.15 | |||
| Machine dimension | m | 6.38 x 1.49 x 2.15 | |||
| Machine weight | t | 8.6 | |||
| Oil tank capacity | L | 320 | |||
