HXM Servo Energy-Saving
HX(*)328/1600
The HXM 328/1600 is an efficient and stable servo injection molding machine built for high-precision production of medium-to-large molded parts. By combining servo-hydraulic precision with rapid response times, it ensures steady injection performance and reduced operational costs for parts requiring high dimensional accuracy.

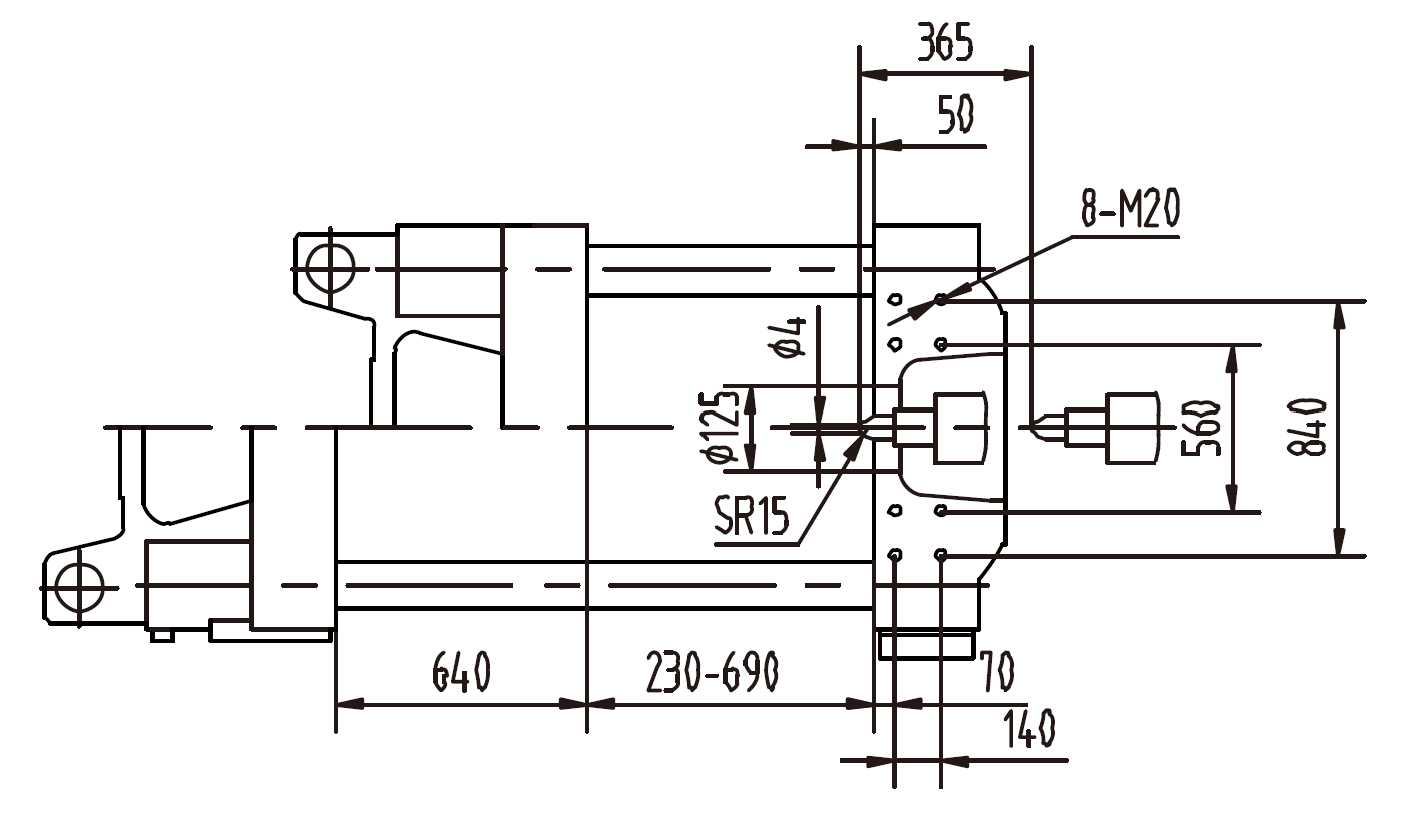

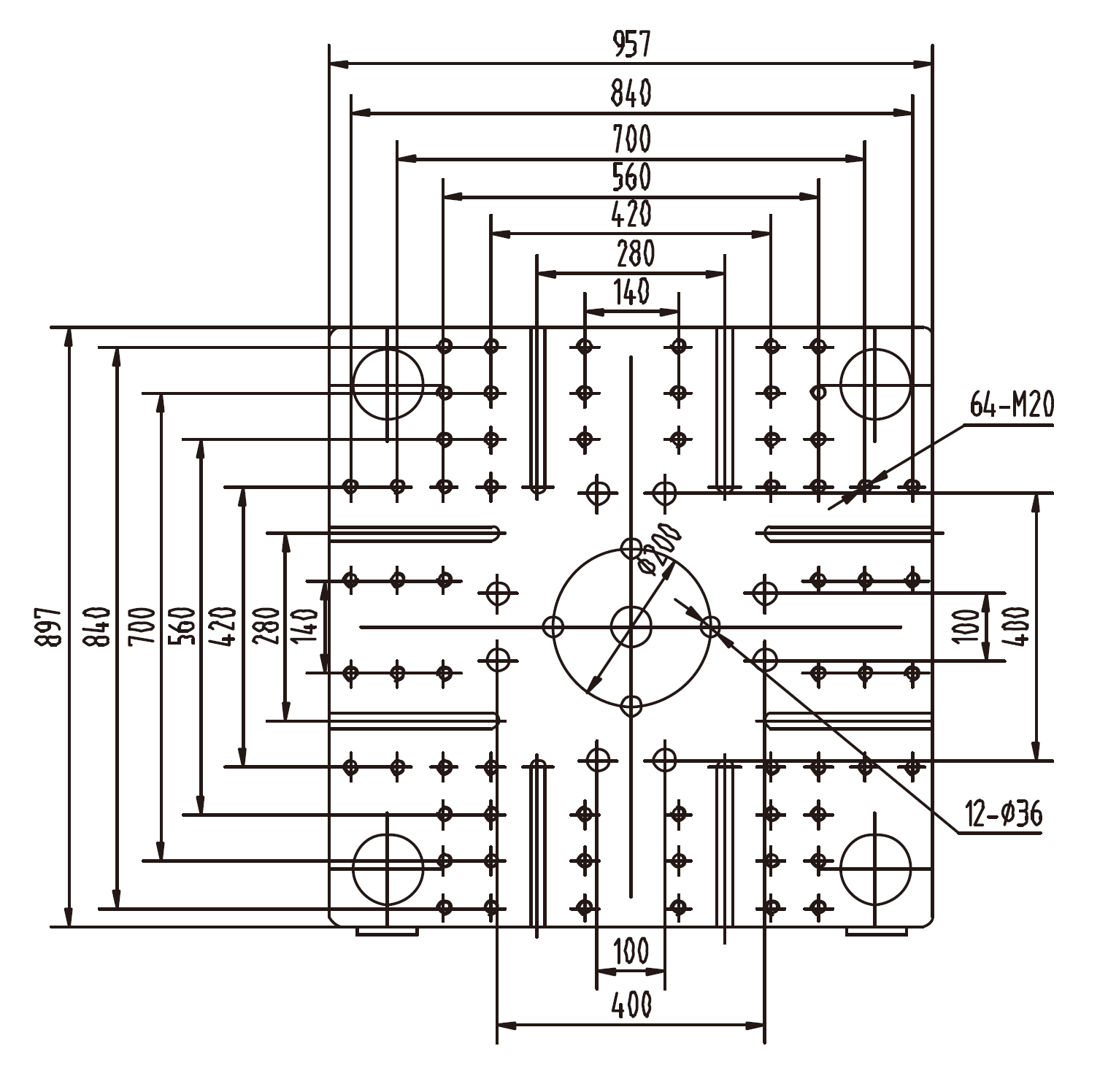

Dimension drawings
Specifications
Due to continual improvement, specifications are subject to change without notification.
| Parameter | Unit | A | B | C | D |
|---|---|---|---|---|---|
| Injection Unit | |||||
| Screw diameter | mm | 55 | 60 | 65 | 70 |
| Screw L/D ratio | L/D | 23 | 21.1 | 19.5 | 19.4 |
| Injection capacity in theory | cm³ | 736 | 876 | 1028 | 1193 |
| Injection weight | g | 670 | 797 | 936 | 1085 |
| Injection weight | oz | 23.6 | 28.7 | 33 | 38.2 |
| Injection pressure | MPa | 218 | 183 | 156 | 135 |
| Injection rate | g/s | 251 | 299 | 350 | 406 |
| Plasticizing capacity | g/s | 33 | 40 | 45 | 50 |
| Screw speed | rpm | 190 | |||
| Clamping Unit | |||||
| Clamping force | kN | 3280 | |||
| Moving mould-plate stroke | mm | 640 | |||
| Max. mould height | mm | 690 | |||
| Min. mould height | mm | 230 | |||
| Space between tie-bars | mm | 670 x 610 | |||
| Hydraulic ejector force | kN | 86 | |||
| Hydraulic ejector stroke | mm | 170 | |||
| Ejector number | n | 13 | |||
| Other | |||||
| Pump pressure | MPa | 17.5 | |||
| Motor power | kW | 40 | |||
| Heating capacity | kW | 24.15 | |||
| Machine dimension | m | 6.53 x 1.58 x 2.15 | |||
| Machine weight | t | 9.2 | |||
| Oil tank capacity | L | 370 | |||
