HXM Servo Energy-Saving
HX(*)368-I/2300
The HXM 368‑I/2300 is an energy-saving servo injection molding machine designed for stable performance and high precision in medium-to-large plastic part production. Featuring a responsive servo-hydraulic control system, it delivers high injection consistency and fast cycle times, making it a highly efficient solution for manufacturing industrial containers and structural components. Key Technical Specifications: Clamping Force: 3680 kN Injection Capacity: 989 to 1346 cm³ (depending on screw choice) Screw Diameters: 60 mm, 65 mm, or 70 mm Injection Performance: 176 to 239 MPa pressure with plasticizing up to 47 g/s Power System: 40 kW servo motor and 27.3 kW heating capacity Mold Dimensions: 710 mm opening stroke; 250–750 mm mold height range Tie-bar Spacing: 720 × 690 mm Physical Footprint: 6.87 × 1.89 × 2.16 meters; ~12.6-ton weight Specialized Features: 420-liter oil tank, 17.5 MPa pump pressure, and an optimized drive system for precise molding of automotive and packaging parts.

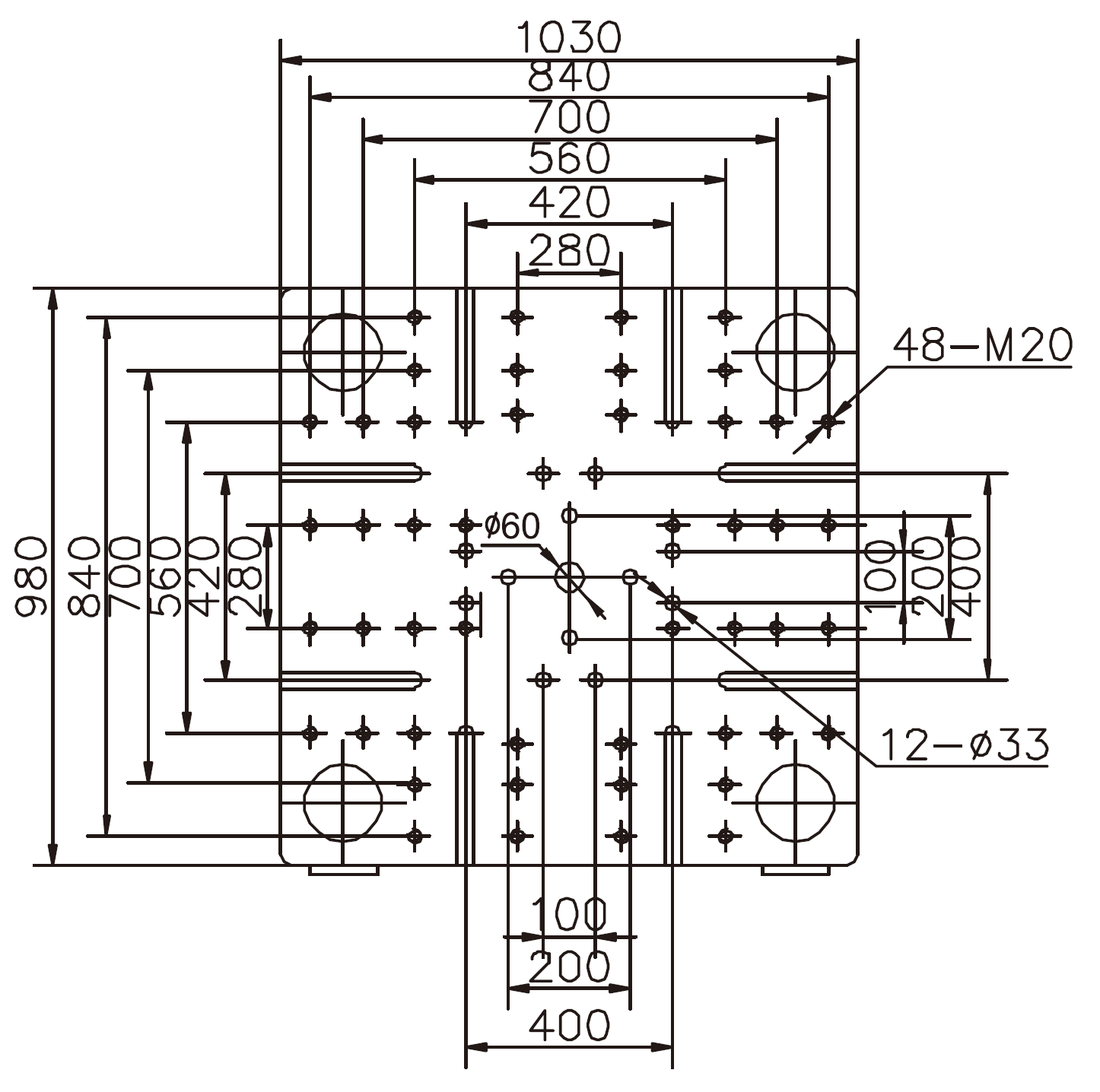

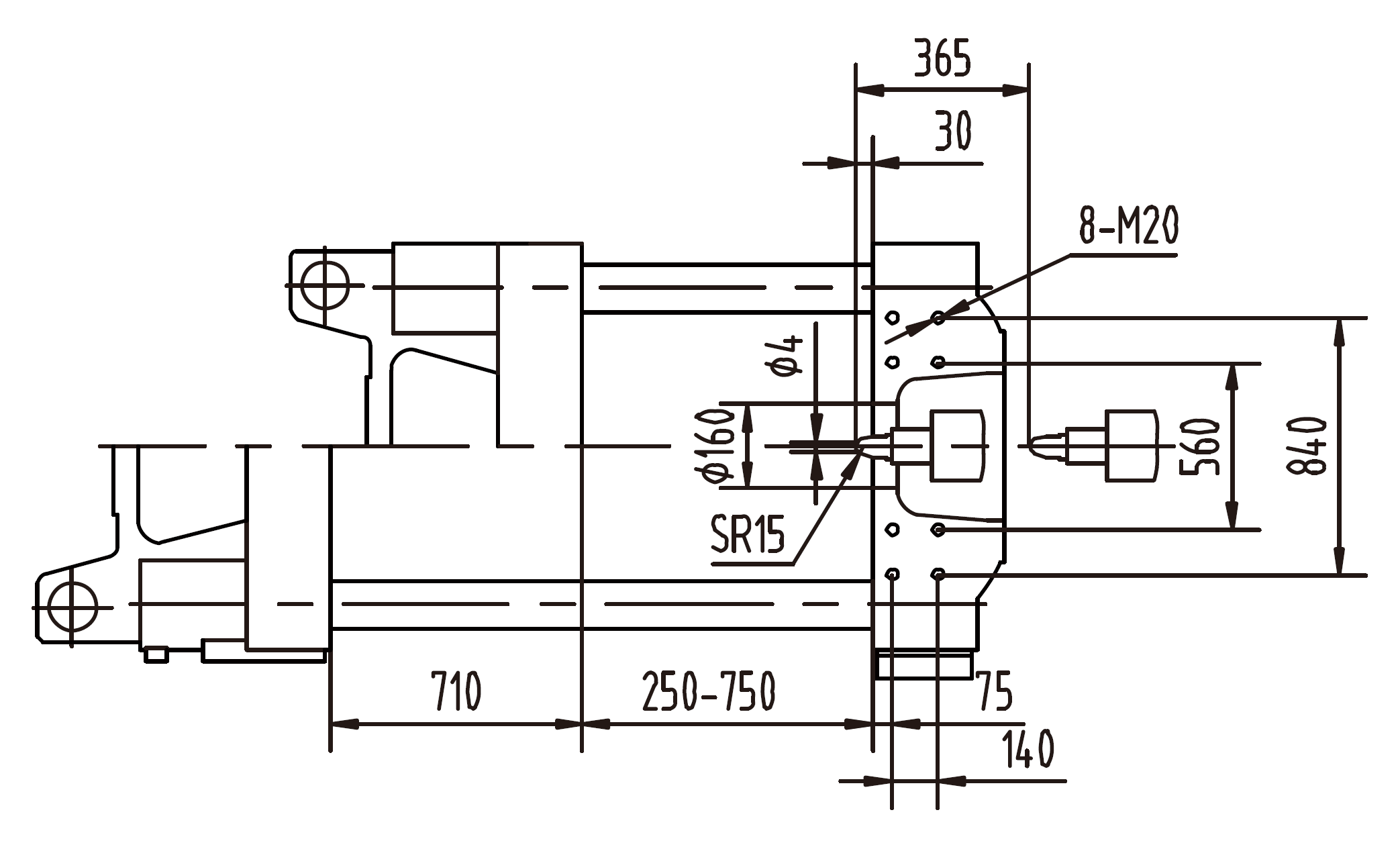

Dimension drawings
Specifications
Due to continual improvement, specifications are subject to change without notification.
| Parameter | Unit | A | B | C |
|---|---|---|---|---|
| Injection Unit | ||||
| Screw diameter | mm | 60 | 65 | 70 |
| Screw L/D ratio | L/D | 22 | 21 | 20 |
| Injection capacity in theory | cm³ | 989 | 1161 | 1346 |
| Injection weight | g | 900 | 1056 | 1225 |
| Injection weight | oz | 31.7 | 37.2 | 43.2 |
| Injection pressure | MPa | 239 | 204 | 176 |
| Injection rate | g/s | 229 | 268 | 311 |
| Plasticizing capacity | g/s | 40 | 42 | 47 |
| Screw speed | rpm | 160 | ||
| Clamping Unit | ||||
| Clamping force | kN | 3680 | ||
| Moving mould-plate stroke | mm | 710 | ||
| Max. mould height | mm | 750 | ||
| Min. mould height | mm | 250 | ||
| Space between tie-bars | mm | 720 x 690 | ||
| Hydraulic ejector force | kN | 134 | ||
| Hydraulic ejector stroke | mm | 180 | ||
| Ejector number | n | 13 | ||
| Other | ||||
| Pump pressure | MPa | 17.5 | ||
| Motor power | kW | 40 | ||
| Heating capacity | kW | 27.3 | ||
| Machine dimension | m | 6.87 x 1.89 x 2.16 | ||
| Machine weight | t | 12.6 | ||
| Oil tank capacity | L | 420 | ||
