HXM Servo Energy-Saving
HX(*)368-II/2400
The HXM 368‑II/2400 is a precise and reliable servo injection molding machine developed for medium-to-large applications. Utilizing closed-loop servo-hydraulic control, it delivers stable injection pressure and fast response times, achieving up to 60% energy savings while maintaining the strength and consistency required for automotive and household components. Key Technical Specifications: Clamping Force: 3680 kN Injection Capacity: 1,211 to 1,612 cm³ (depending on screw choice) Screw Diameters: 65 mm, 70 mm, or 75 mm Injection Performance: 149 to 198 MPa pressure with plasticizing up to 52 g/s Power System: 40 kW servo motor and 32.2 kW heating capacity Mold Dimensions: 710 mm opening stroke; 250–750 mm mold height range Tie-bar Spacing: 720 × 690 mm Physical Footprint: 7.4 × 1.99 × 2.24 meters; ~13.0-ton weight Specialized Features: 420-liter oil tank, 17.5 MPa pump pressure, and high-efficiency performance optimized for crates and household product housings.

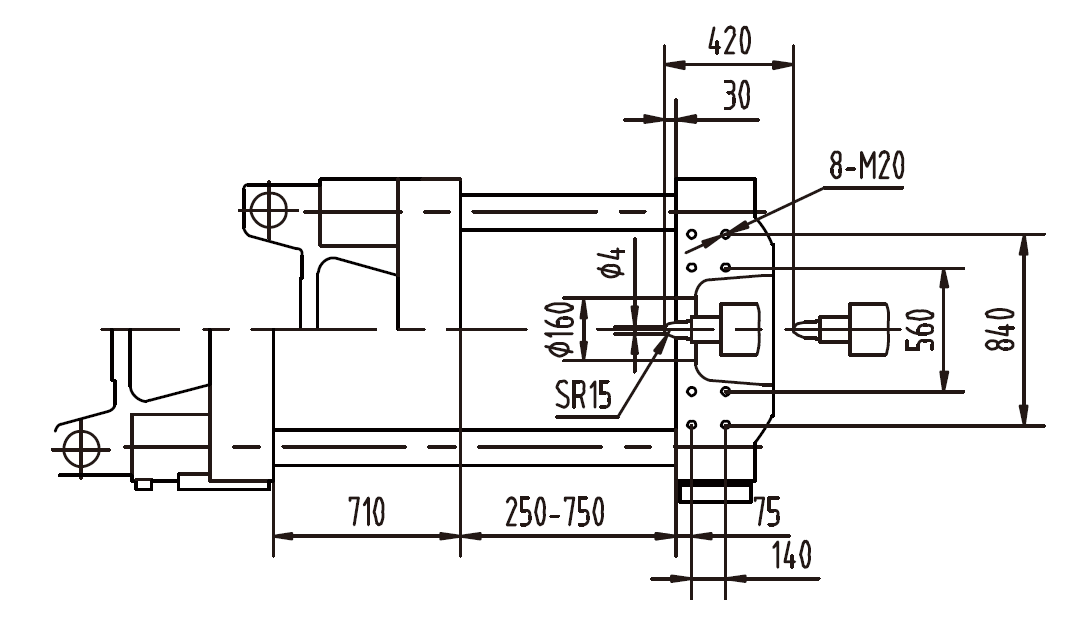

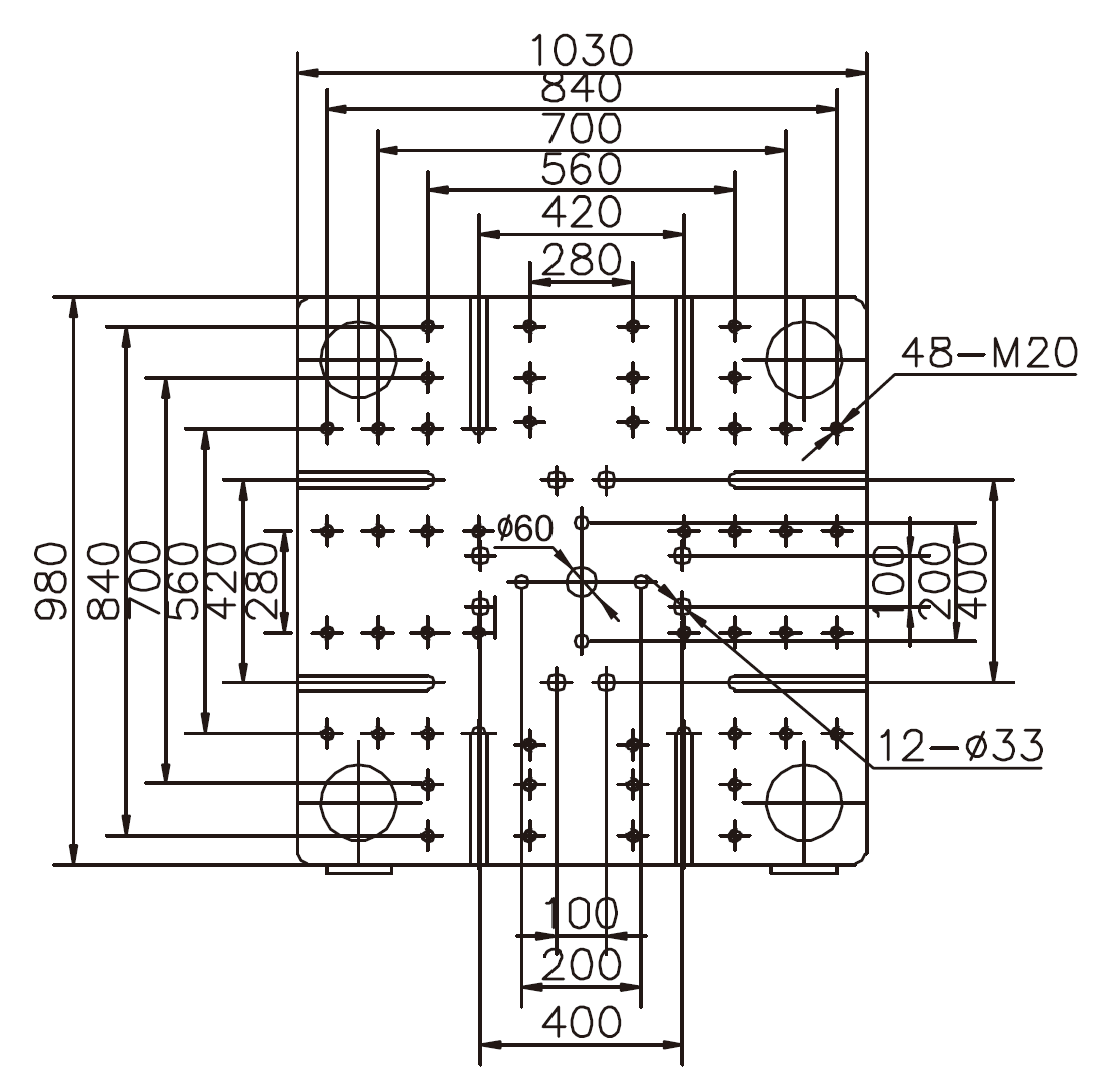

Dimension drawings
Specifications
Due to continual improvement, specifications are subject to change without notification.
| Parameter | Unit | A | B | C |
|---|---|---|---|---|
| Injection Unit | ||||
| Screw diameter | mm | 65 | 70 | 75 |
| Screw L/D ratio | L/D | 22 | 21 | 20 |
| Injection capacity in theory | cm³ | 1211 | 1401 | 1612 |
| Injection weight | g | 1102 | 1278 | 1467 |
| Injection weight | oz | 38.8 | 45.0 | 81.7 |
| Injection pressure | MPa | 198 | 171 | 149 |
| Injection rate | g/s | 307 | 356 | 408 |
| Plasticizing capacity | g/s | 42 | 47 | 52 |
| Screw speed | rpm | 160 | ||
| Clamping Unit | ||||
| Clamping force | kN | 3680 | ||
| Moving mould-plate stroke | mm | 710 | ||
| Max. mould height | mm | 750 | ||
| Min. mould height | mm | 250 | ||
| Space between tie-bars | mm | 720 x 690 | ||
| Hydraulic ejector force | kN | 134 | ||
| Hydraulic ejector stroke | mm | 180 | ||
| Ejector number | n | 13 | ||
| Other | ||||
| Pump pressure | MPa | 17.5 | ||
| Motor power | kW | 40 | ||
| Heating capacity | kW | 32.2 | ||
| Machine dimension | m | 7.4 x 1.99 x 2.24 | ||
| Machine weight | t | 13.0 | ||
| Oil tank capacity | L | 420 | ||
