HXM Servo Energy-Saving
HX(*)488-I/3300
The HXM 488‑I/3300 is an efficient servo-driven injection molding machine developed for the stable and precise production of medium-to-large plastic components. Featuring a high-response servo-hydraulic control system, it ensures steady injection pressure and fast cycle times, delivering both high molding accuracy and significant energy savings.

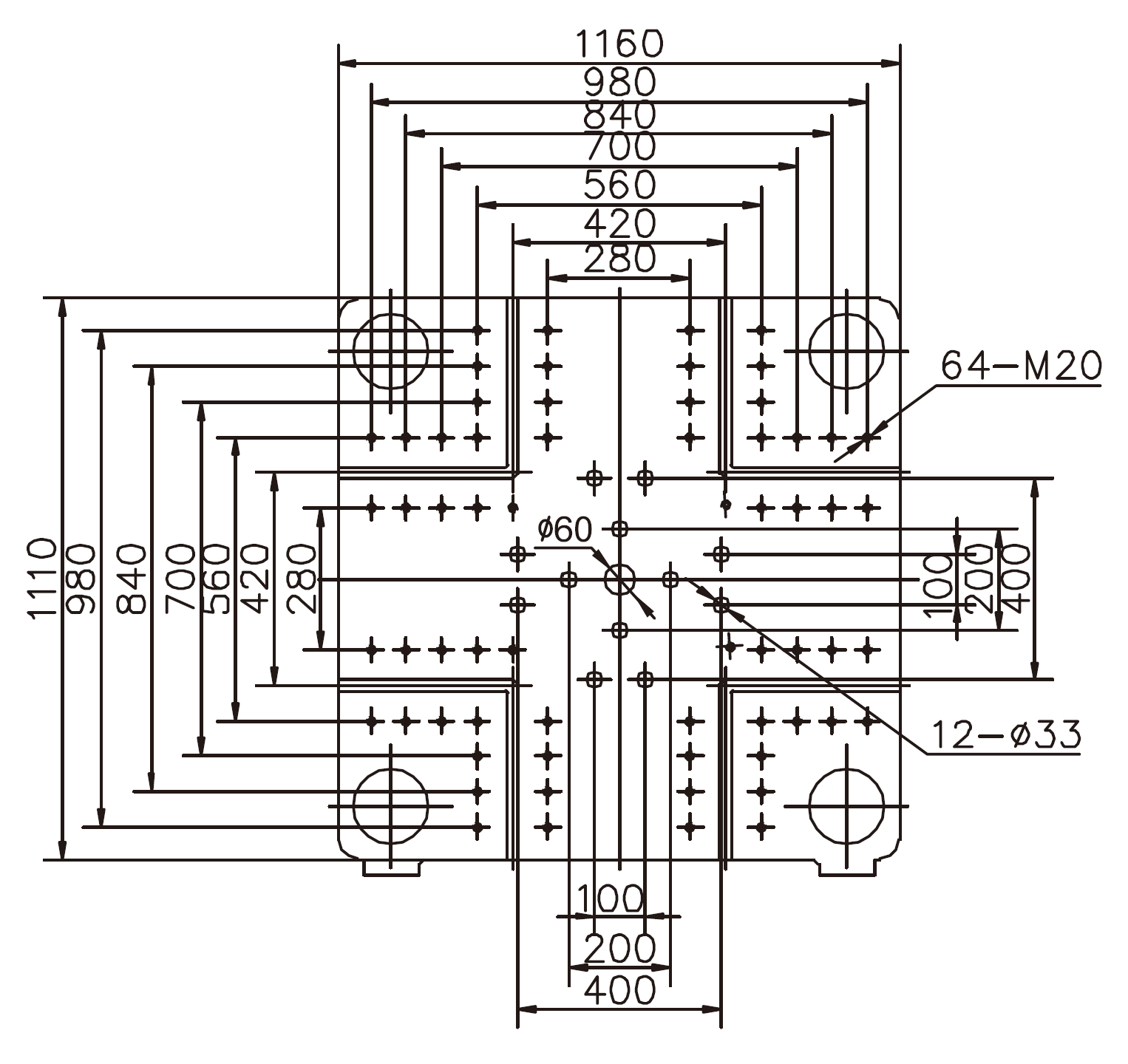

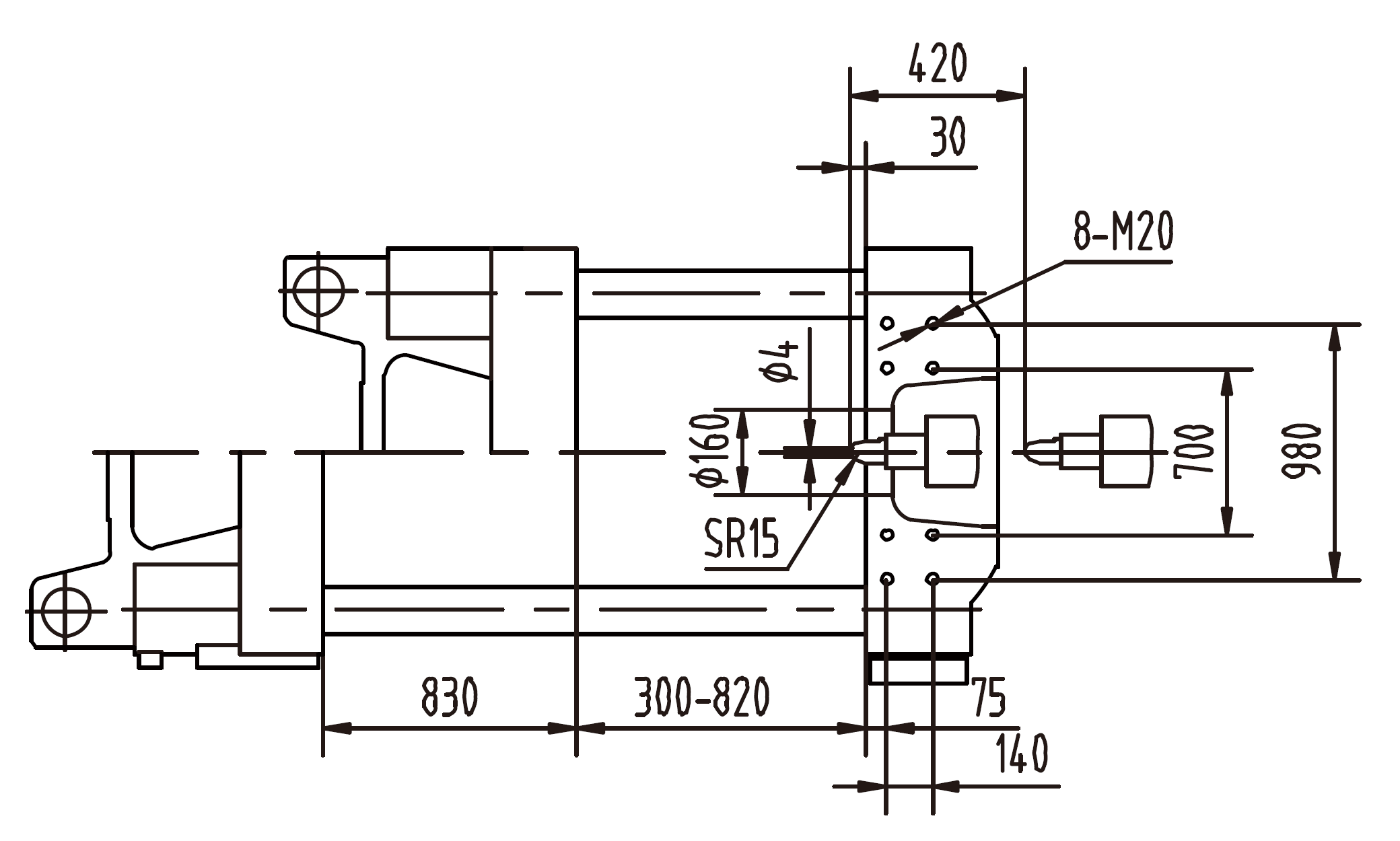

Dimension drawings
Specifications
Due to continual improvement, specifications are subject to change without notification.
| Parameter | Unit | A | B |
|---|---|---|---|
| Injection Unit | |||
| Screw diameter | mm | 70 | 75 |
| Screw L/D ratio | L/D | 21 | 20 |
| Injection capacity in theory | cm³ | 1539 | 1767 |
| Injection weight | g | 1400 | 1608 |
| Injection weight | oz | 49.3 | 56.7 |
| Injection pressure | MPa | 217 | 189 |
| Injection rate | g/s | 387 | 444 |
| Plasticizing capacity | g/s | 50 | 55 |
| Screw speed | rpm | 190 | |
| Clamping Unit | |||
| Clamping force | kN | 4880 | |
| Moving mould-plate stroke | mm | 830 | |
| Max. mould height | mm | 820 | |
| Min. mould height | mm | 300 | |
| Space between tie-bars | mm | 820 x 800 | |
| Hydraulic ejector force | kN | 134 | |
| Hydraulic ejector stroke | mm | 210 | |
| Ejector number | n | 13 | |
| Other | |||
| Pump pressure | MPa | 17.5 | |
| Motor power | kW | 30+30 | |
| Heating capacity | kW | 35.55 | |
| Machine dimension | m | 7.77 x 2.02 x 2.36 | |
| Machine weight | t | 17.3 | |
| Oil tank capacity | L | 530 | |
