HXM Servo Energy-Saving

HX(*)98/370

The HXM 98/370 is a compact, energy-efficient injection molding machine from Highsun’s HXM series, specifically designed for precision molding of small to medium components. Featuring a responsive servo-driven hydraulic system, it provides a quiet, stable, and low-energy solution for manufacturing electronic, medical, and consumer product parts. Key Technical Specifications: Clamping Force: 980 kN Injection Capacity: 128 to 200 cm³ Screw Diameters: 32 mm to 40 mm Injection Performance: 183 to 287 MPa pressure depending on configuration Power System: 16 kW servo motor and 10.9 kW heating capacity Mold Dimensions: 315 mm clamping stroke; 150–390 mm mold height range Tie-bar Spacing: (Standard series spacing applies per HXM compact frame) Physical Footprint: 4.12 × 1.05 × 1.79 meters; ~2.9-ton weight Specialized Features: 130-liter oil tank, high-precision control for intricate parts, and a servo-hydraulic system optimized for significant energy savings and quiet operation.

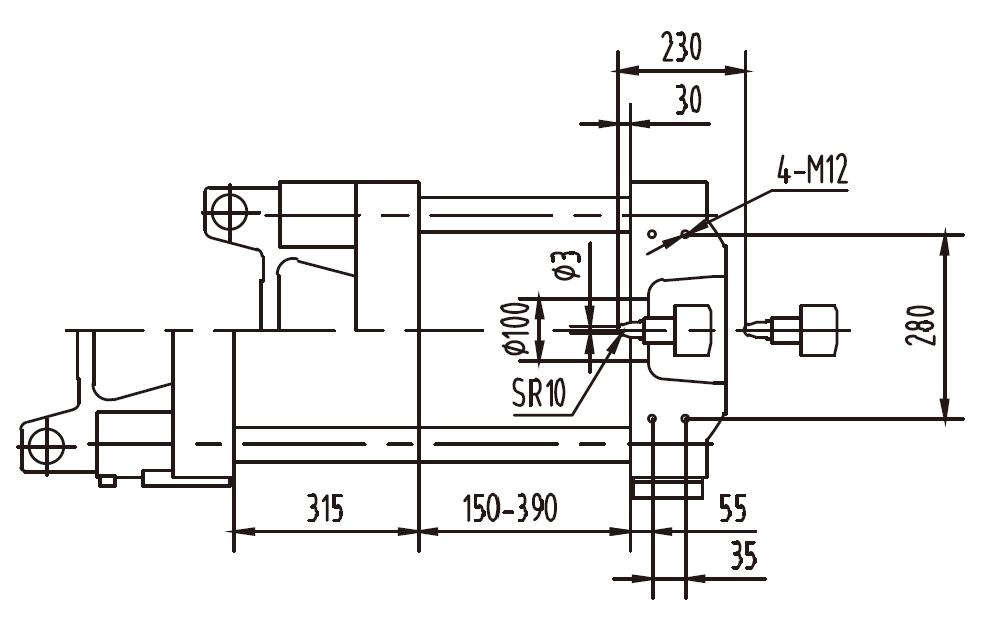

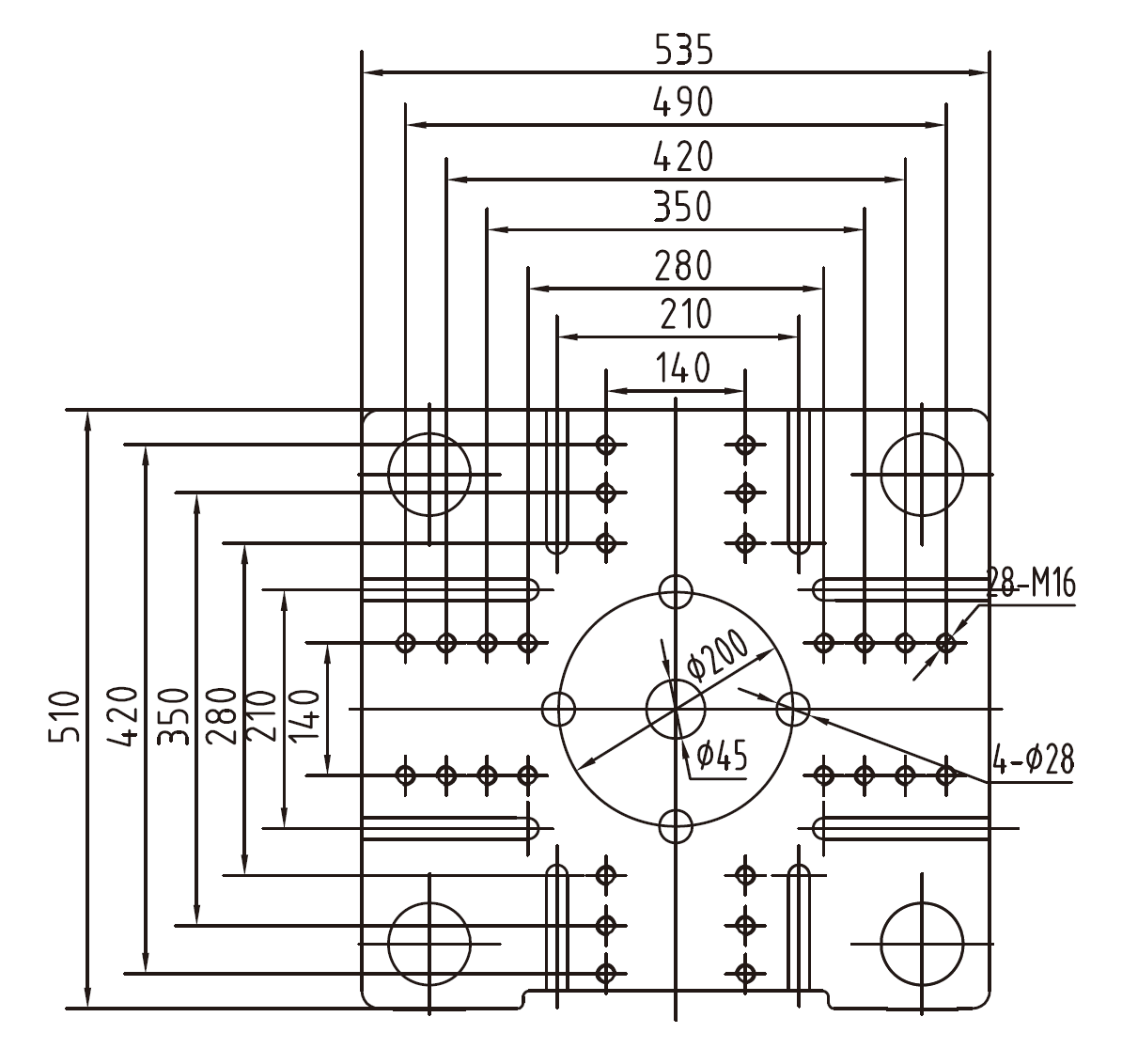

Dimension drawings

Specifications

Due to continual improvement, specifications are subject to change without notification.

Parameter	Unit	A	B	C	D
Injection Unit
Screw diameter	mm	32	35	38	40
Screw L/D ratio	L/D	24	22	21	20
Injection capacity in theory	cm³	128	154	181	200
Injection weight	g	116	140	164	182
Injection weight	oz	4.0	4.9	5.7	6.4
Injection pressure	MPa	287	240	203	183
Injection rate	g/s	68	81	95	109
Plasticizing capacity	g/s	10	12	15	17
Screw speed	rpm	240
Clamping Unit
Clamping force	kN	980
Moving mould-plate stroke	mm	315
Max. mould height	mm	390
Min. mould height	mm	150
Space between tie-bars	mm	360 x 340
Hydraulic ejector force	kN	56
Hydraulic ejector stroke	mm	100
Ejector number	n	5
Other
Pump pressure	MPa	17.5
Motor power	kW	16
Heating capacity	kW	10.9
Machine dimension	m	4.12 x 1.05 x 1.79
Machine weight	t	2.9
Oil tank capacity	L	130
