HXM Servo Energy-Saving
HX(*)1300/13000
The HXM 1300/13000 is a high-precision, servo-driven injection molding machine designed for heavy-duty plastic production. By integrating a high-performance triple-servo hydraulic drive, it delivers precise pressure control and fast cycle times, making it a reliable solution for large-scale automotive, industrial, and structural plastic applications. Key Technical Specifications: Clamping Force: 13,000 kN Injection Capacity: 7,012 to 9,544 cm³ (depending on screw choice) Screw Diameters: 120 mm, 130 mm, or 140 mm Injection Performance: 138 to 188 MPa pressure with plasticizing up to 135 g/s Power System: Triple-servo motor setup (3 × 40 kW) with 99.8 kW heating capacity Mold Dimensions: 1400 mm opening stroke; 550–1300 mm mold height range Tie-bar Spacing: 1320 × 1280 mm Physical Footprint: 13.76 × 2.70 × 3.90 meters; ~66.6-ton weight Specialized Features: 1400-liter oil tank, high-performance flow control for enhanced stability, and a design optimized for high-tonnage household and industrial containers.

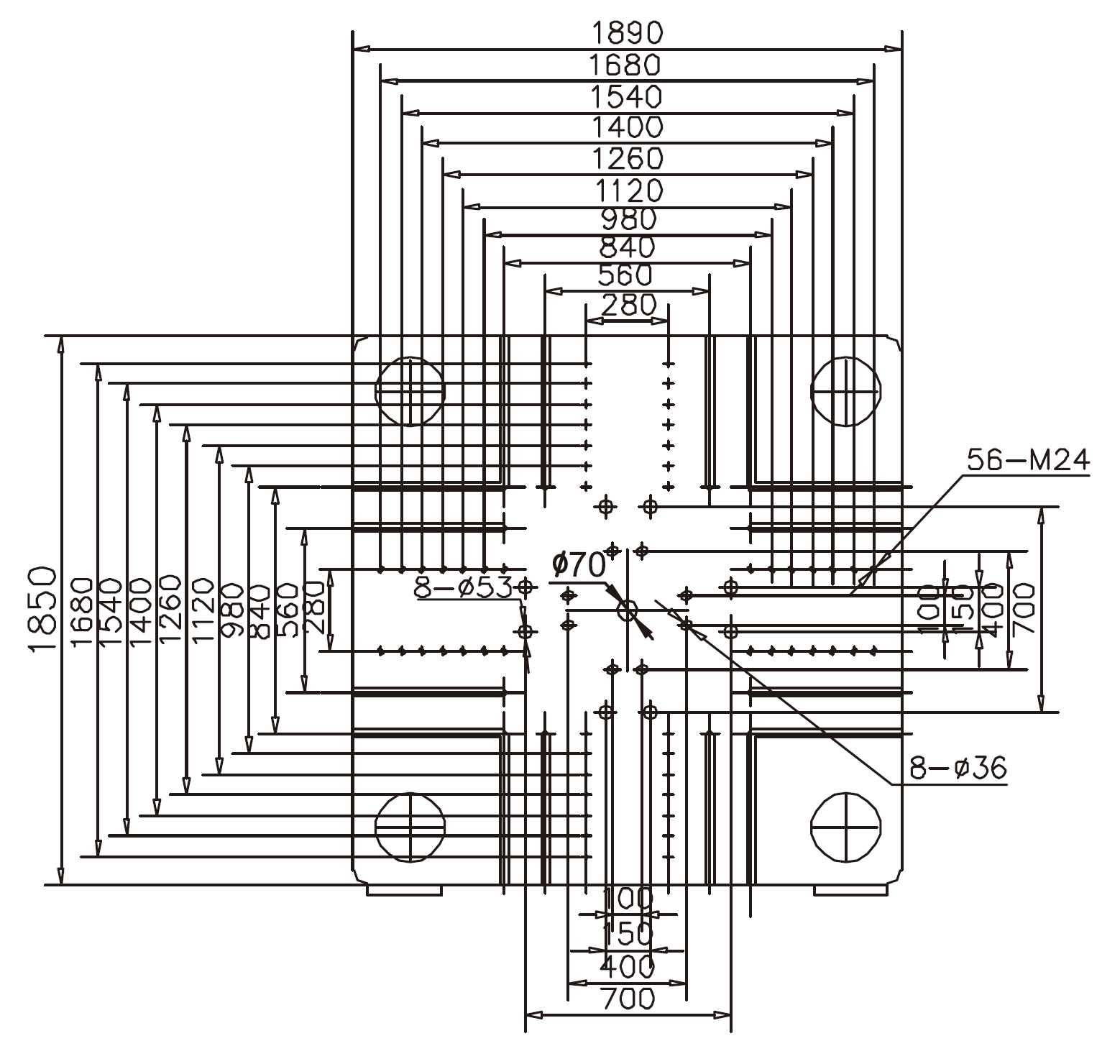

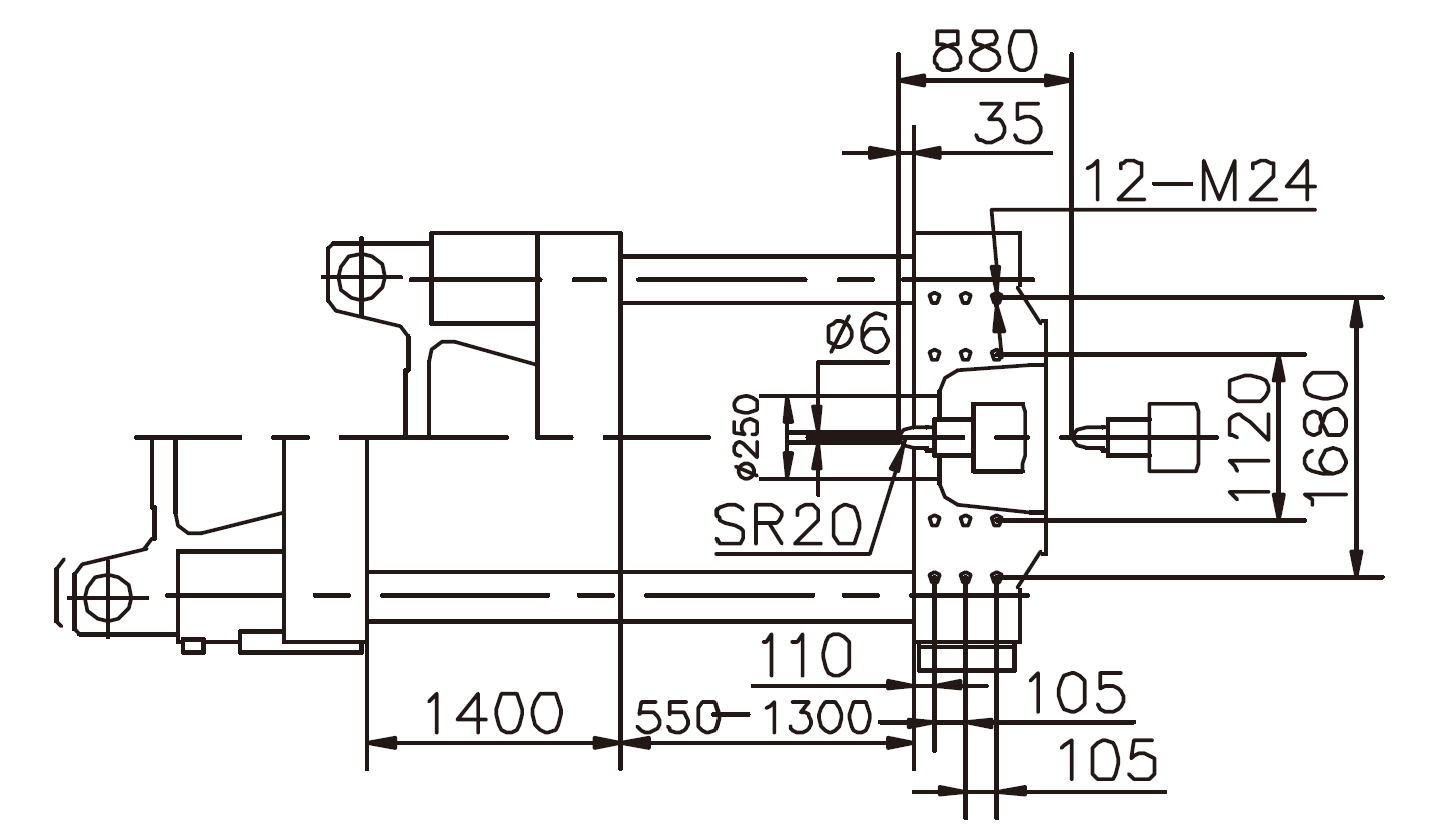

Dimension drawings
Specifications
Due to continual improvement, specifications are subject to change without notification.
| Parameter | Unit | A | B | C |
|---|---|---|---|---|
| Injection Unit | ||||
| Screw diameter | mm | 120 | 130 | 140 |
| Screw L/D ratio | L/D | 24 | 23 | 21 |
| Injection capacity in theory | cm³ | 7012 | 8229 | 9544 |
| Injection weight | g | 6380 | 7488 | 8685 |
| Injection weight | oz | 225.0 | 264.1 | 306.3 |
| Injection pressure | MPa | 188 | 160 | 138 |
| Injection rate | g/s | 930 | 1092 | 1266 |
| Plasticizing capacity | g/s | 101 | 115 | 135 |
| Screw speed | rpm | 95 | ||
| Clamping Unit | ||||
| Clamping force | kN | 13000 | ||
| Moving mould-plate stroke | mm | 1400 | ||
| Max. mould height | mm | 1300 | ||
| Min. mould height | mm | 550 | ||
| Space between tie-bars | mm | 1320 x 1280 | ||
| Hydraulic ejector force | kN | 300 | ||
| Hydraulic ejector stroke | mm | 400 | ||
| Ejector number | n | 21 | ||
| Other | ||||
| Pump pressure | MPa | 17.5 | ||
| Motor power | kW | 40+40+40 | ||
| Heating capacity | kW | 99.8 | ||
| Machine dimension | m | 13.76 x 2.70 x 3.90 | ||
| Machine weight | t | 66.6 | ||
| Oil tank capacity | L | 1400 | ||
