HXM Servo Energy-Saving
HX(*)1500/15500
The HXM 1500/15500 is a high-tonnage, energy-efficient injection molding machine designed for the high-precision production of large-scale plastic components. It features a rigid structural design and a multi-motor servo system that reduces energy consumption by up to 60% while ensuring stable pressure control for complex industrial applications. Key Technical Specifications: Clamping Force: 15,000 kN Injection Capacity: 8,627 to 11,486 cm³ (depending on screw choice) Screw Diameters: 130 mm, 140 mm, or 150 mm Injection Performance: 135 to 180 MPa pressure with plasticizing up to 160 g/s Power System: Quad-servo motor setup (4 × 40 kW) with 118.25 kW heating capacity Mold Dimensions: 1500 mm opening stroke; 700–1500 mm mold height range Tie-bar Spacing: 1450 × 1350 mm Physical Footprint: 14.00 × 3.30 × 4.00 meters; ~93.6-ton weight Specialized Features: 1600-liter oil tank, high structural rigidity for reduced cycle times, and optimized performance for automotive parts and logistics containers.

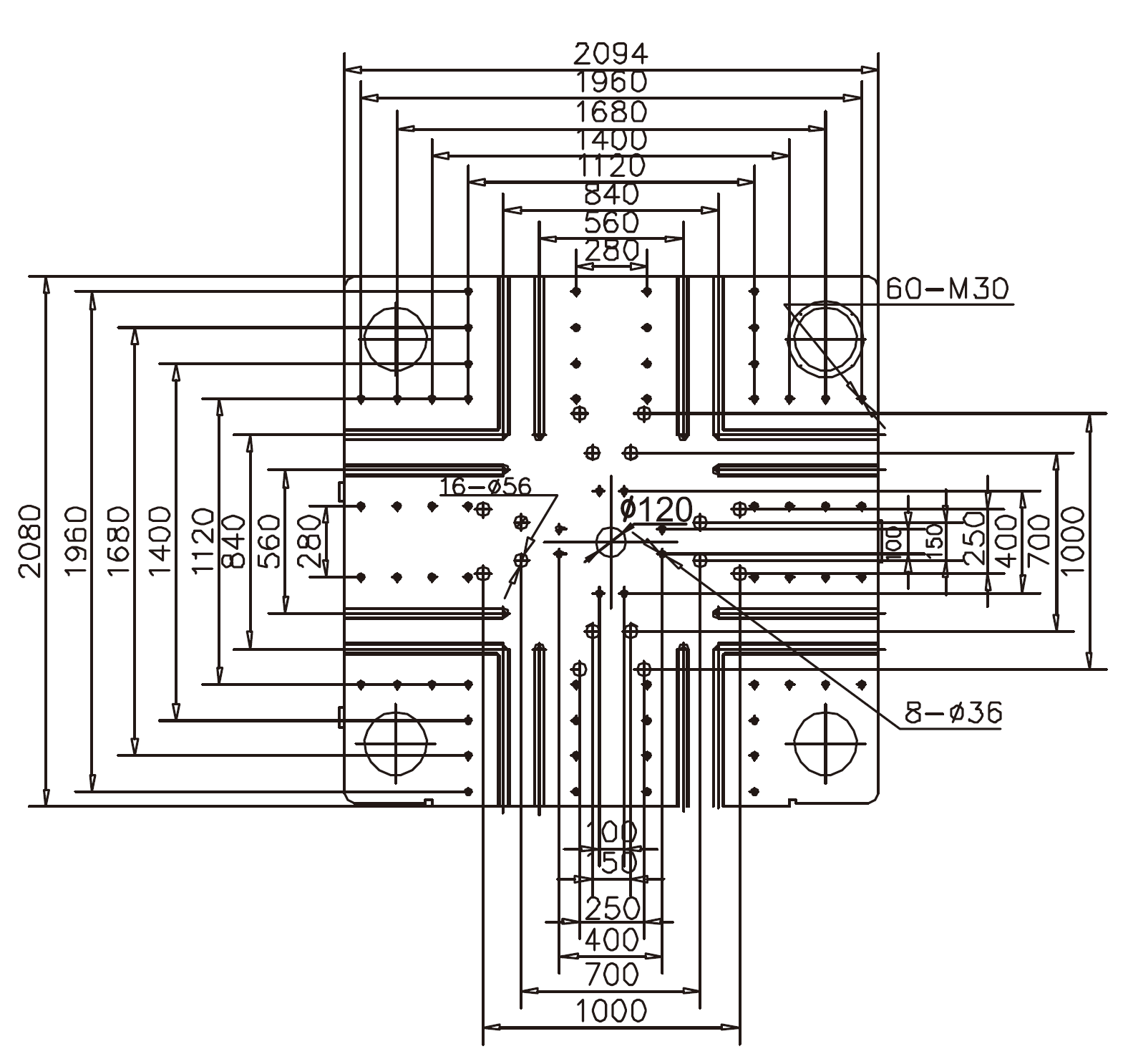

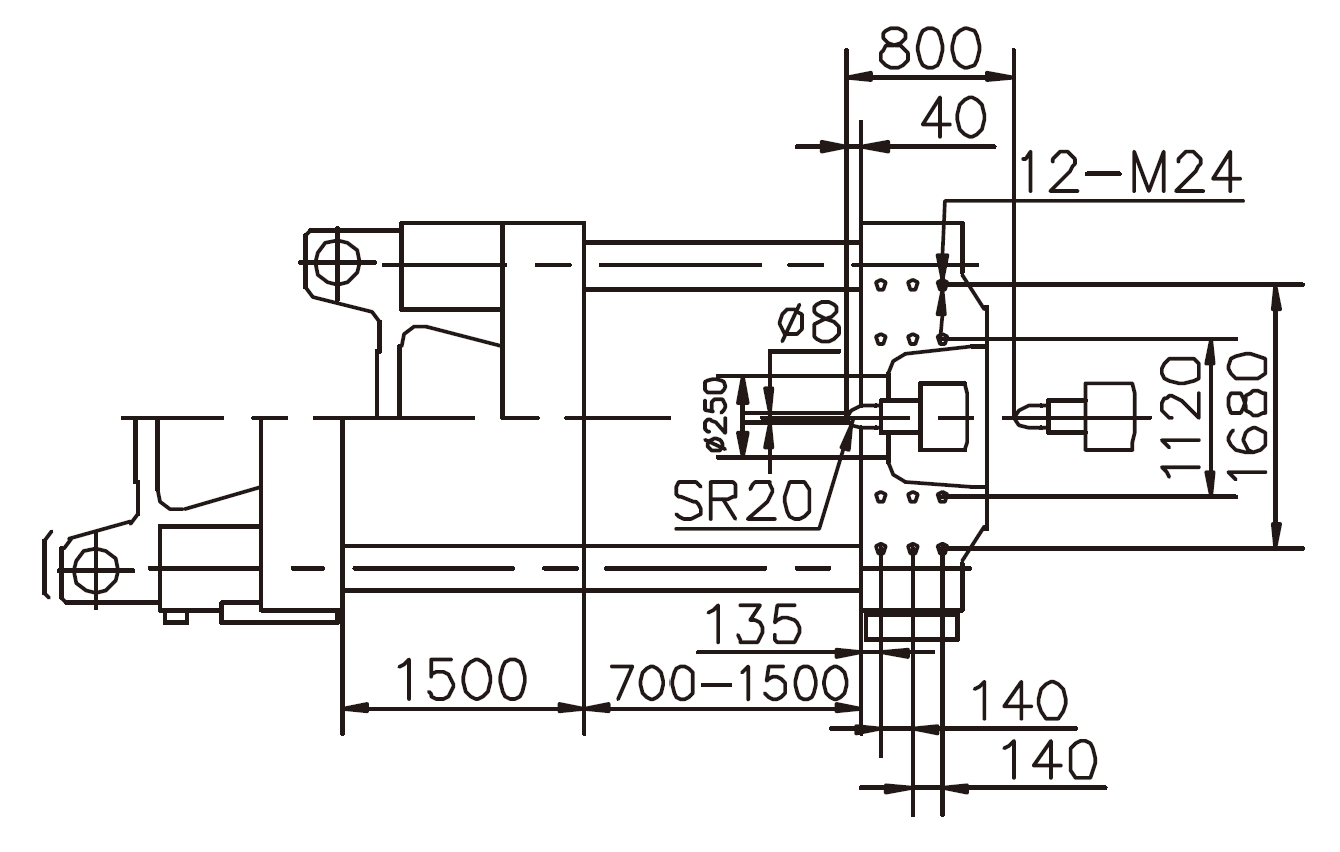

Dimension drawings
Specifications
Due to continual improvement, specifications are subject to change without notification.
| Parameter | Unit | A | B | C |
|---|---|---|---|---|
| Injection Unit | ||||
| Screw diameter | mm | 130 | 140 | 150 |
| Screw L/D ratio | L/D | 23 | 22 | 21 |
| Injection capacity in theory | cm³ | 8627 | 10005 | 11486 |
| Injection weight | g | 7851 | 9105 | 10452 |
| Injection weight | oz | 276.9 | 321.1 | 368.8 |
| Injection pressure | MPa | 180 | 155 | 135 |
| Injection rate | g/s | 1240 | 1438 | 1651 |
| Plasticizing capacity | g/s | 120 | 140 | 160 |
| Screw speed | rpm | 100 | ||
| Clamping Unit | ||||
| Clamping force | kN | 15000 | ||
| Moving mould-plate stroke | mm | 1500 | ||
| Max. mould height | mm | 1500 | ||
| Min. mould height | mm | 700 | ||
| Space between tie-bars | mm | 1450 x 1350 | ||
| Hydraulic ejector force | kN | 380 | ||
| Hydraulic ejector stroke | mm | 400 | ||
| Ejector number | n | 25 | ||
| Other | ||||
| Pump pressure | MPa | 17.5 | ||
| Motor power | kW | 40+40+40+40 | ||
| Heating capacity | kW | 118.25 | ||
| Machine dimension | m | 14.00 x 3.30 x 4.00 | ||
| Machine weight | t | 93.6 | ||
| Oil tank capacity | L | 1600 | ||
