PET Injection Molding
HX(*)208PET
The HXM 208PET is an energy-efficient servo injection molding machine optimized for the production of high-transparency PET preforms. It is designed to deliver consistent melt quality and stable pressure, making it an ideal solution for manufacturing water and beverage bottle preforms and food packaging containers. Key Technical Specifications: Clamping Force: 2080 kN Injection Capacity: 500 cm³ (Approx. 580 g PET weight) Screw Diameter: 50 mm (PET-specific with 24 L/D ratio) Injection Performance: 150 MPa pressure with a 264 g/s injection rate Power System: 21 kW servo motor and 16.85 kW heating capacity Mold Dimensions: 500 mm opening stroke; 200–550 mm mold height range Tie-bar Spacing: 530 × 480 mm Physical Footprint: 5.38 × 1.28 × 2.04 meters; 6.3-ton weight Specialized Features: Enhanced hydraulic system for faster charging, optimized screw design for improved clarity, and a 200-liter oil tank capacity.

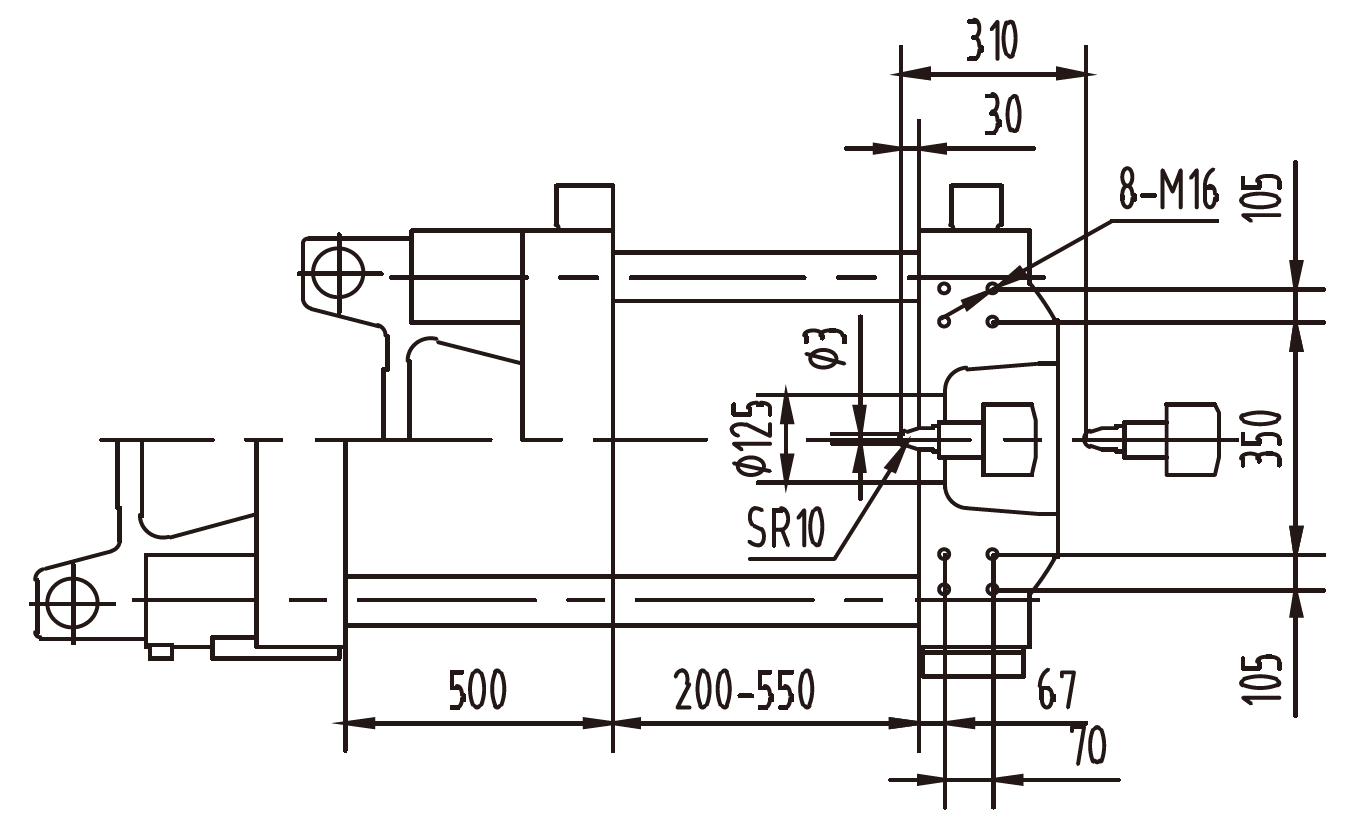

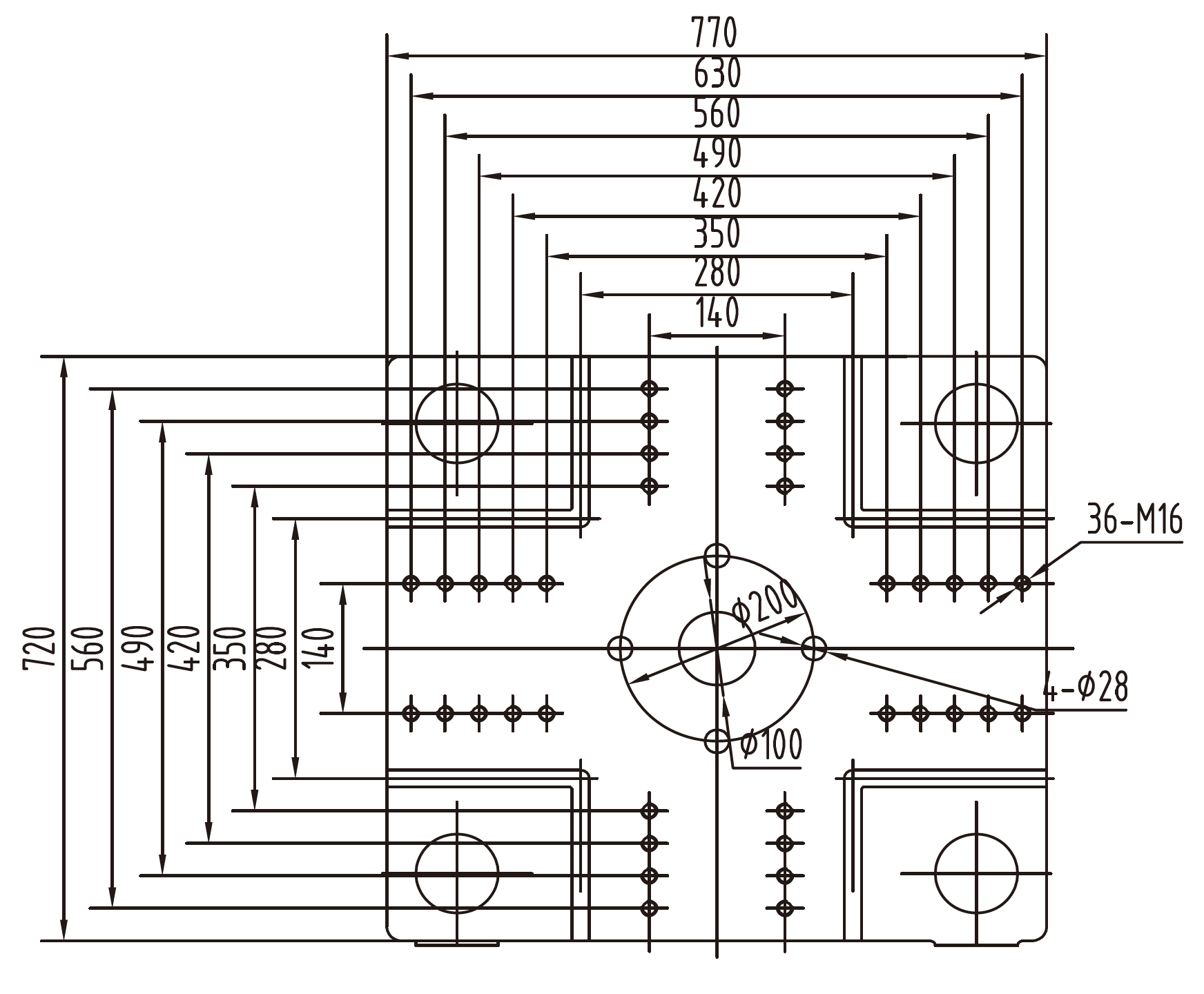

Dimension drawings
Specifications
Due to continual improvement, specifications are subject to change without notification.
| Injection Unit | ||
| Screw diameter | mm | 50 |
| Screw L/D ratio | L/D | 24 |
| Injection capacity in theory | cm³ | 500 |
| Injection weight | g | 580(PET) |
| Injection pressure | MPa | 150 |
| Injection rate | g/s | 264 |
| Plasticizing capacity | g/s | 33 |
| Screw speed | rpm | 190 |
| Clamping Unit | ||
| Clamping force | kN | 2080 |
| Moving mould-plate stroke | mm | 500 |
| Max. mould height | mm | 550 |
| Min. mould height | mm | 200 |
| Space between tie-bars | mm | 530 x 480 |
| Hydraulic ejector force | kN | 56 |
| Hydraulic ejector stroke | mm | 140 |
| Ejector number | n | 5 |
| Other | ||
| Pump pressure | MPa | 17.5 |
| Motor power | kW | 21 |
| Heating capacity | kW | 16.85 |
| Machine dimension | m | 5.38 x 1.28 x 2.04 |
| Machine weight | t | 6.3 |
| Oil tank capacity | L | 200 |
