HXM Servo Energy-Saving
HX(*)2200/32000
The HXM 2200/32000 is a high-capacity, energy-saving injection molding machine designed for the production of large, complex, and technically demanding plastic parts. Utilizing a high-response servo-hydraulic system, it offers up to 60% energy savings and exceptional repeatability for heavy-duty applications like automotive panels and large logistics containers. Key Technical Specifications: Clamping Force: 22,000 kN Injection Capacity: 17,737 to 22,609 cm³ (depending on screw choice) Screw Diameters: 155 mm, 165 mm, or 175 mm Injection Performance: 142 to 181 MPa pressure with plasticizing up to 135 g/s Power System: Quad-servo motor setup (2 × 40 kW + 2 × 47 kW) with 162.15 kW heating capacity Mold Dimensions: 1950 mm opening stroke; 780–1700 mm mold height range Tie-bar Spacing: 1800 × 1620 mm Physical Footprint: 19.40 × 3.90 × 5.10 meters; ~154.5-ton weight Specialized Features: 2200-liter oil tank, precise pressure/flow control, and a design optimized for high dimensional stability in oversized assemblies.

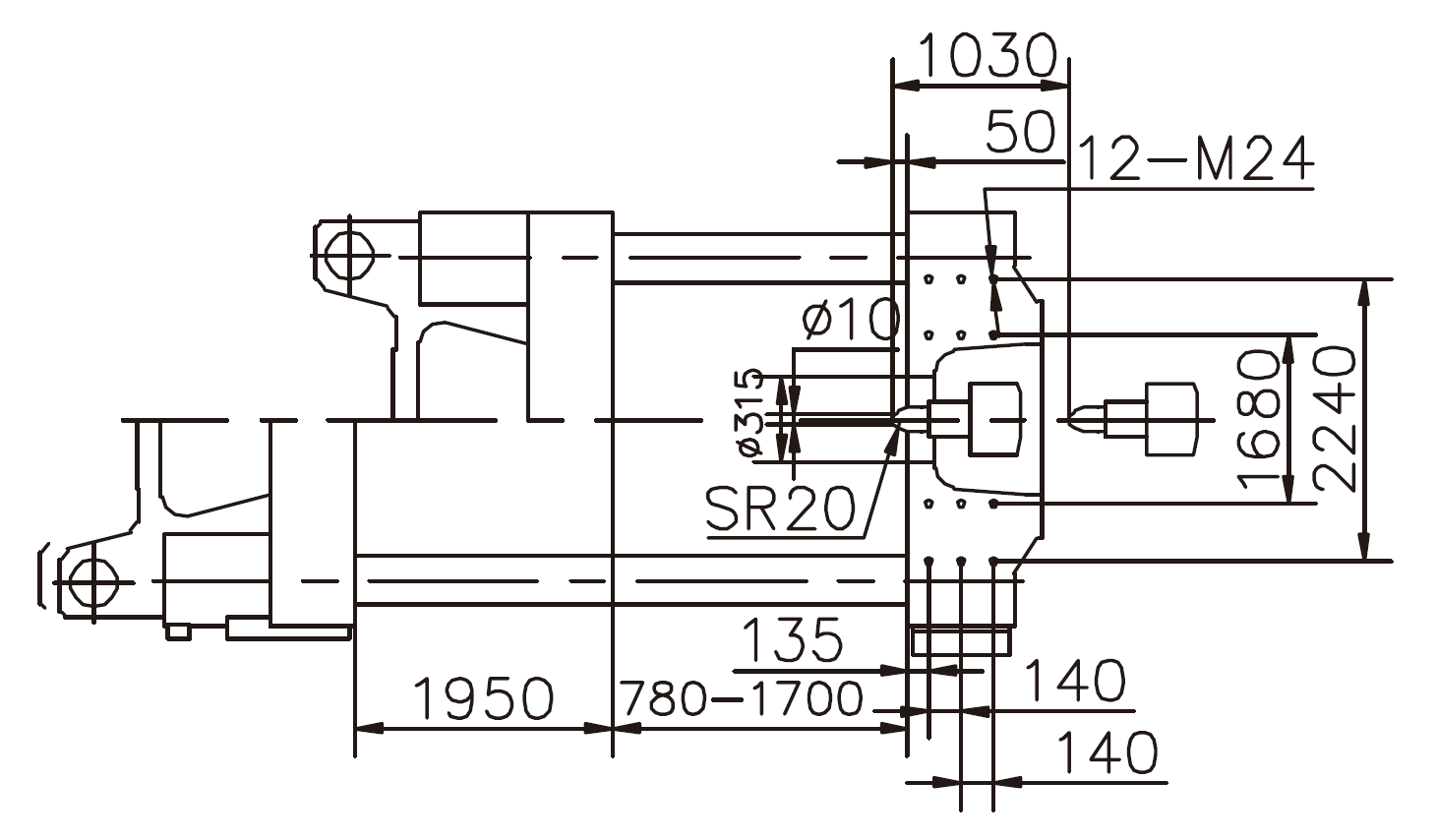

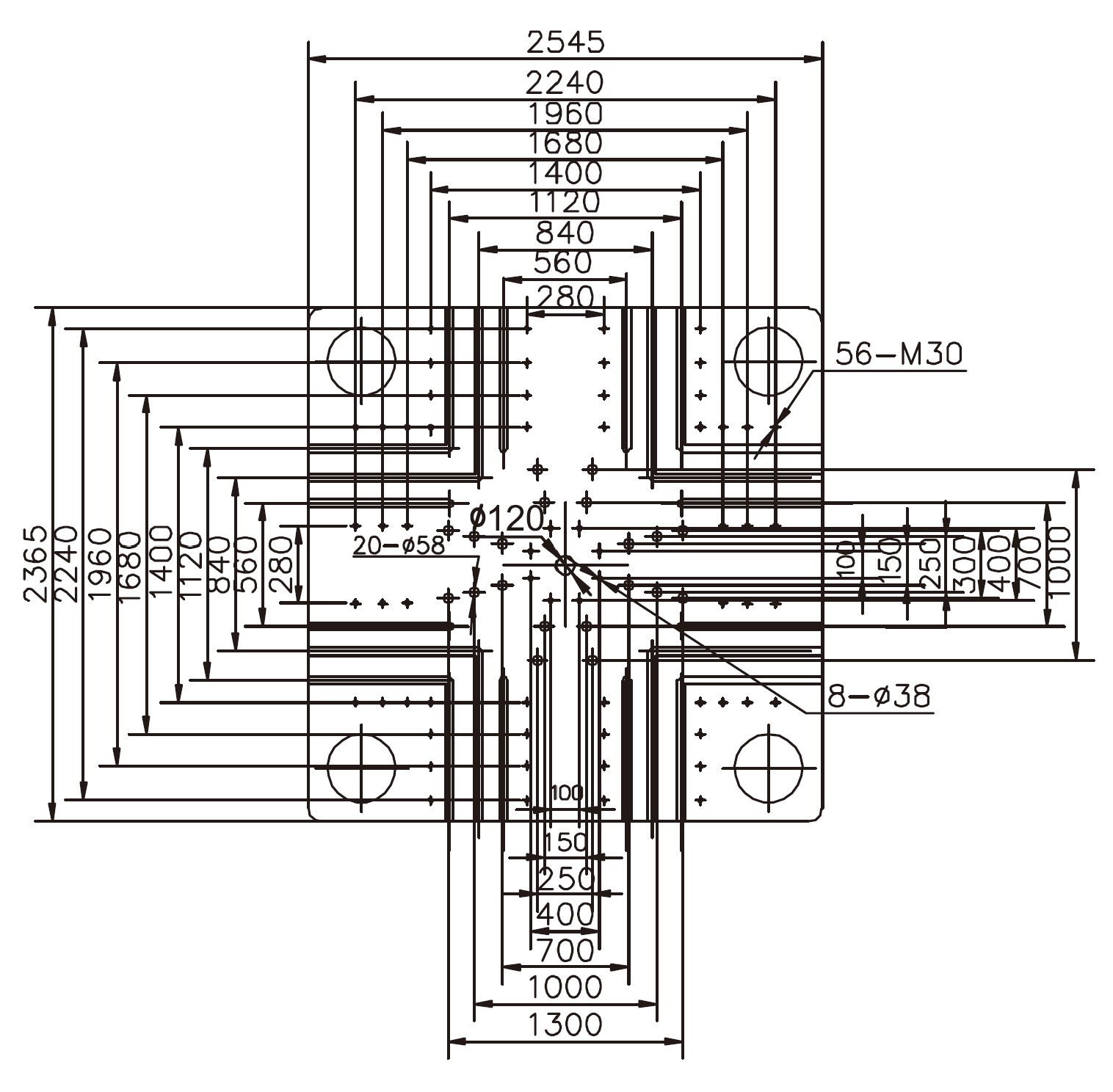

Dimension drawings
Specifications
Due to continual improvement, specifications are subject to change without notification.
| Parameter | Unit | A | B | C |
|---|---|---|---|---|
| Injection Unit | ||||
| Screw diameter | mm | 155 | 165 | 175 |
| Screw L/D ratio | L/D | 23 | 22 | 21 |
| Injection capacity in theory | cm³ | 17737 | 20099 | 22609 |
| Injection weight | g | 16140 | 18290 | 20574 |
| Injection weight | oz | 569.3 | 645.1 | 725.7 |
| Injection pressure | MPa | 181 | 160 | 142 |
| Injection rate | g/s | 1342 | 1521 | 1711 |
| Plasticizing capacity | g/s | 100 | 115 | 135 |
| Screw speed | rpm | 66 | ||
| Clamping Unit | ||||
| Clamping force | kN | 22000 | ||
| Moving mould-plate stroke | mm | 1950 | ||
| Max. mould height | mm | 1700 | ||
| Min. mould height | mm | 780 | ||
| Space between tie-bars | mm | 1800 x 1620 | ||
| Hydraulic ejector force | kN | 520 | ||
| Hydraulic ejector stroke | mm | 450 | ||
| Ejector number | n | 33 | ||
| Other | ||||
| Pump pressure | MPa | 17.5 | ||
| Motor power | kW | 40+40+47+47 | ||
| Heating capacity | kW | 162.15 | ||
| Machine dimension | m | 19.40 x 3.90 x 5.10 | ||
| Machine weight | t | 154.5 | ||
| Oil tank capacity | L | 2200 | ||
