HXM Servo Energy-Saving
HX(*)2500/44000
The HXM 2500/44000 is a heavy-duty, servo-driven injection molding machine designed for large-scale industrial and structural applications. It integrates a massive clamping force with a high-capacity hydraulic system to produce oversized components, such as automotive parts and industrial crates, with high precision and energy efficiency. Key Technical Specifications: Clamping Force: 25,000 kN Injection Capacity: 24,059 to 33,300 cm³ (depending on screw choice) Screw Diameters: 170 mm, 185 mm, or 200 mm Injection Performance: 134 to 186 MPa pressure with plasticizing up to 170 g/s Power System: Quad-servo motor setup (4 × 47 kW) with 214.15 kW heating capacity Mold Dimensions: 1900 mm opening stroke; 800–1800 mm mold height range Tie-bar Spacing: 1850 × 1700 mm Physical Footprint: 19.50 × 4.00 × 5.20 meters; ~163-ton weight Specialized Features: Advanced servo-hydraulic control for pressure stability, 2700-liter oil tank, and high-strength structural integrity for large-part manufacturing.

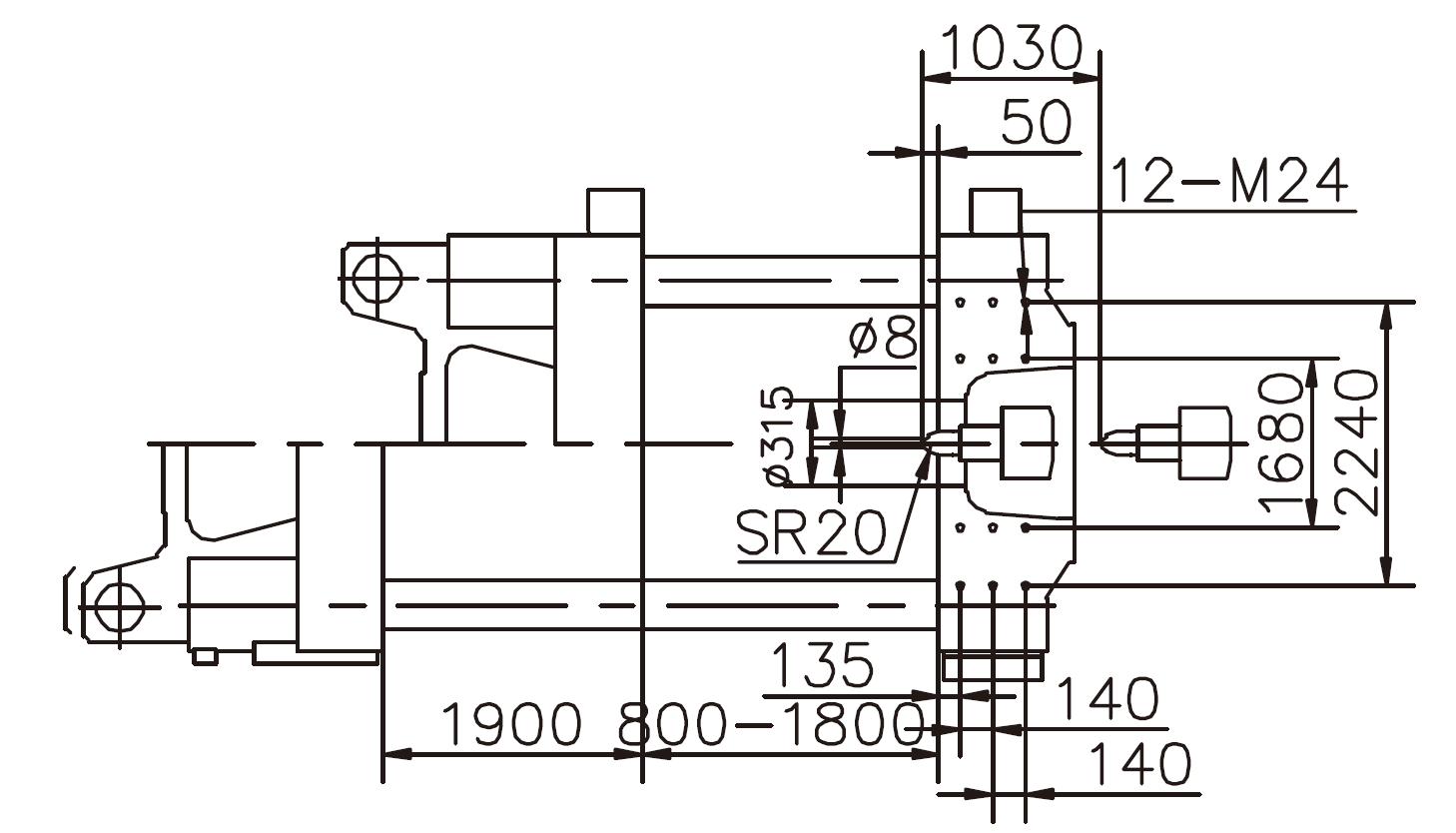

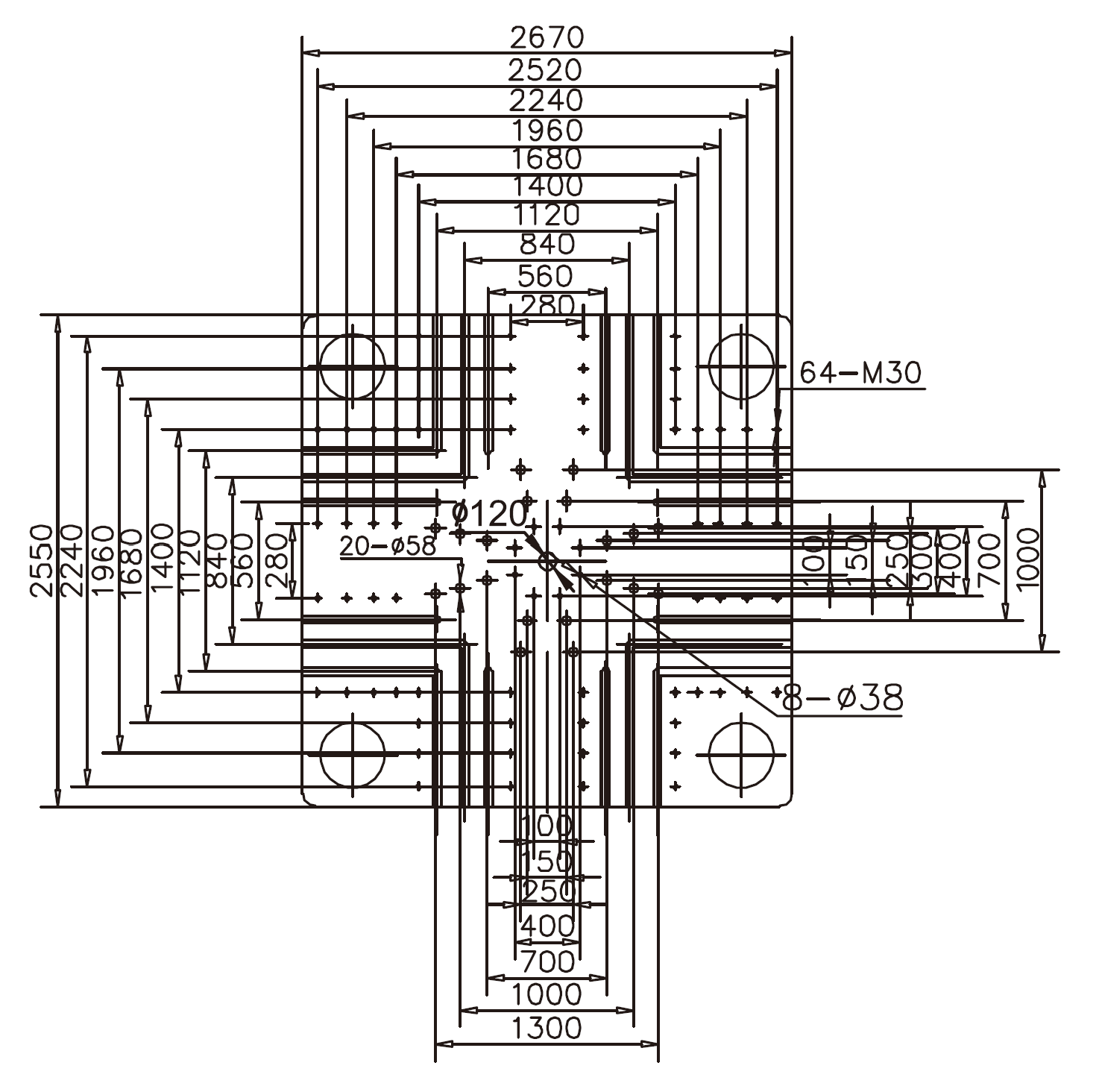

Dimension drawings
Specifications
Due to continual improvement, specifications are subject to change without notification.
| Parameter | Unit | A | B | C |
|---|---|---|---|---|
| Injection Unit | ||||
| Screw diameter | mm | 170 | 185 | 200 |
| Screw L/D ratio | L/D | 23 | 22 | 21 |
| Injection capacity in theory | cm³ | 24059 | 28493 | 33300 |
| Injection weight | g | 21894 | 25928 | 30303 |
| Injection weight | oz | 772.2 | 914.5 | 1068.8 |
| Injection pressure | MPa | 186 | 157 | 134 |
| Injection rate | g/s | 1424 | 1686 | 1970 |
| Plasticizing capacity | g/s | 127 | 170 | 220 |
| Screw speed | rpm | 65 | ||
| Clamping Unit | ||||
| Clamping force | kN | 25000 | ||
| Moving mould-plate stroke | mm | 1900 | ||
| Max. mould height | mm | 1800 | ||
| Min. mould height | mm | 800 | ||
| Space between tie-bars | mm | 1850 x 1700 | ||
| Hydraulic ejector force | kN | 520 | ||
| Hydraulic ejector stroke | mm | 450 | ||
| Ejector number | n | 33 | ||
| Other | ||||
| Pump pressure | MPa | 17.5 | ||
| Motor power | kW | 47+47+47+47 | ||
| Heating capacity | kW | 214.15 | ||
| Machine dimension | m | 19.50 x 4.00 x 5.20 | ||
| Machine weight | t | 163.1 | ||
| Oil tank capacity | L | 2700 | ||
