HXM Servo Energy-Saving
HX(*)658-I/4800
The HXM 658‑I/4800 is a reliable and efficient servo injection molding machine designed for the precise production of large plastic components. Utilizing closed-loop control and servo-hydraulic technology, it delivers rapid response times and up to 60% energy savings, making it ideal for stable, high-quality manufacturing of automotive and appliance parts. Key Technical Specifications: Clamping Force: 6580 kN Injection Capacity: 2,076 to 2,362 cm³ (depending on screw choice) Screw Diameters: 75 mm or 80 mm Injection Performance: 206 to 234 MPa pressure with plasticizing up to 65 g/s Power System: Dual-servo motor setup (30 kW + 40 kW) with 42.45 kW heating capacity Mold Dimensions: 970 mm opening stroke; 350–950 mm mold height range Tie-bar Spacing: 970 × 920 mm Physical Footprint: 9.37 × 2.19 × 2.48 meters; ~29.1-ton weight Specialized Features: 750-liter oil tank, closed-loop pressure control, and a design optimized for producing large containers and demanding industrial components.

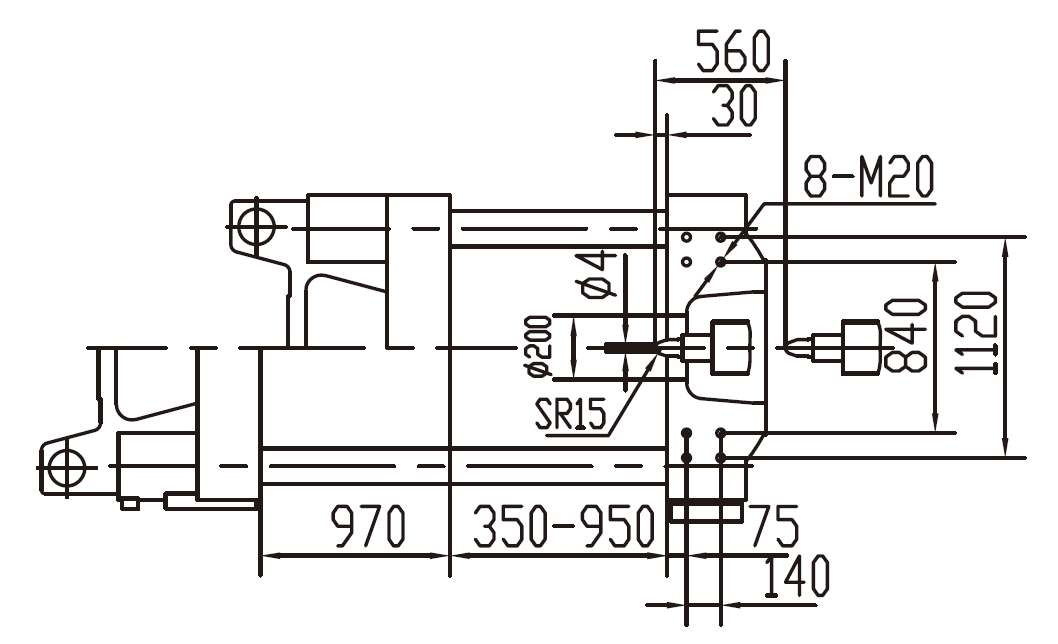

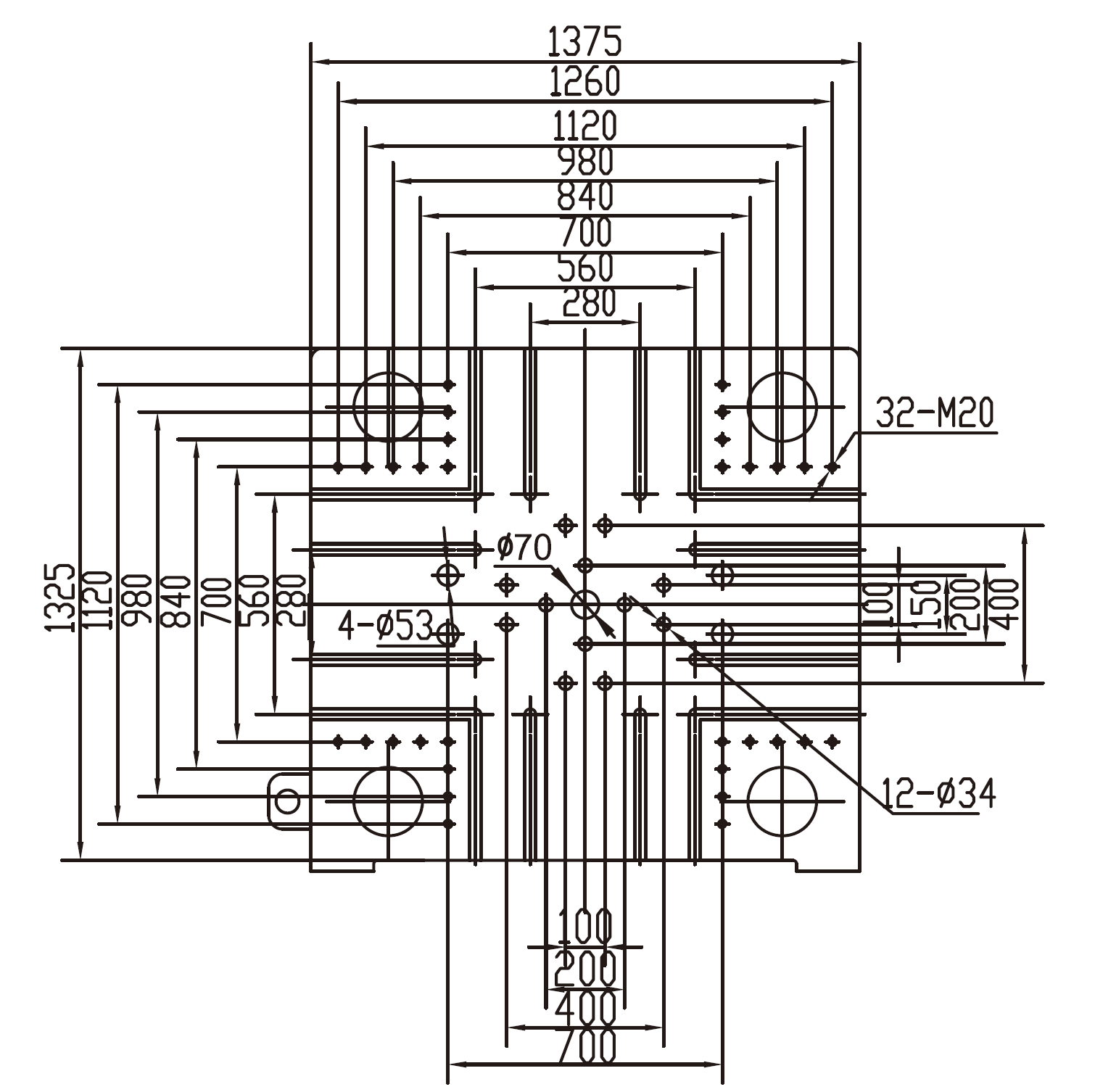

Dimension drawings
Specifications
Due to continual improvement, specifications are subject to change without notification.
| Parameter | Unit | A | B |
|---|---|---|---|
| Injection Unit | |||
| Screw diameter | mm | 75 | 80 |
| Screw L/D ratio | L/D | 22 | 21 |
| Injection capacity in theory | cm³ | 2076 | 2362 |
| Injection weight | g | 1889 | 2149 |
| Injection weight | oz | 66.6 | 75.8 |
| Injection pressure | MPa | 234 | 206 |
| Injection rate | g/s | 429 | 488 |
| Plasticizing capacity | g/s | 55 | 65 |
| Screw speed | rpm | 150 | |
| Clamping Unit | |||
| Clamping force | kN | 6580 | |
| Moving mould-plate stroke | mm | 970 | |
| Max. mould height | mm | 950 | |
| Min. mould height | mm | 350 | |
| Space between tie-bars | mm | 970 x 920 | |
| Hydraulic ejector force | kN | 227 | |
| Hydraulic ejector stroke | mm | 260 | |
| Ejector number | n | 17 | |
| Other | |||
| Pump pressure | MPa | 17.5 | |
| Motor power | kW | 30+40 | |
| Heating capacity | kW | 42.45 | |
| Machine dimension | m | 9.37 x 2.19 x 2.48 | |
| Machine weight | t | 29.1 | |
| Oil tank capacity | L | 750 | |
