HXM Servo Energy-Saving
HX(*)750/6100
The HXM 750/6100 is a high-tonnage, energy-saving injection molding machine built for the precision production of large plastic components. Featuring a dual-servo motor system and a robust clamping unit, it delivers the fast response and stable injection performance required for high-quality industrial containers, automotive parts, and appliance housings.

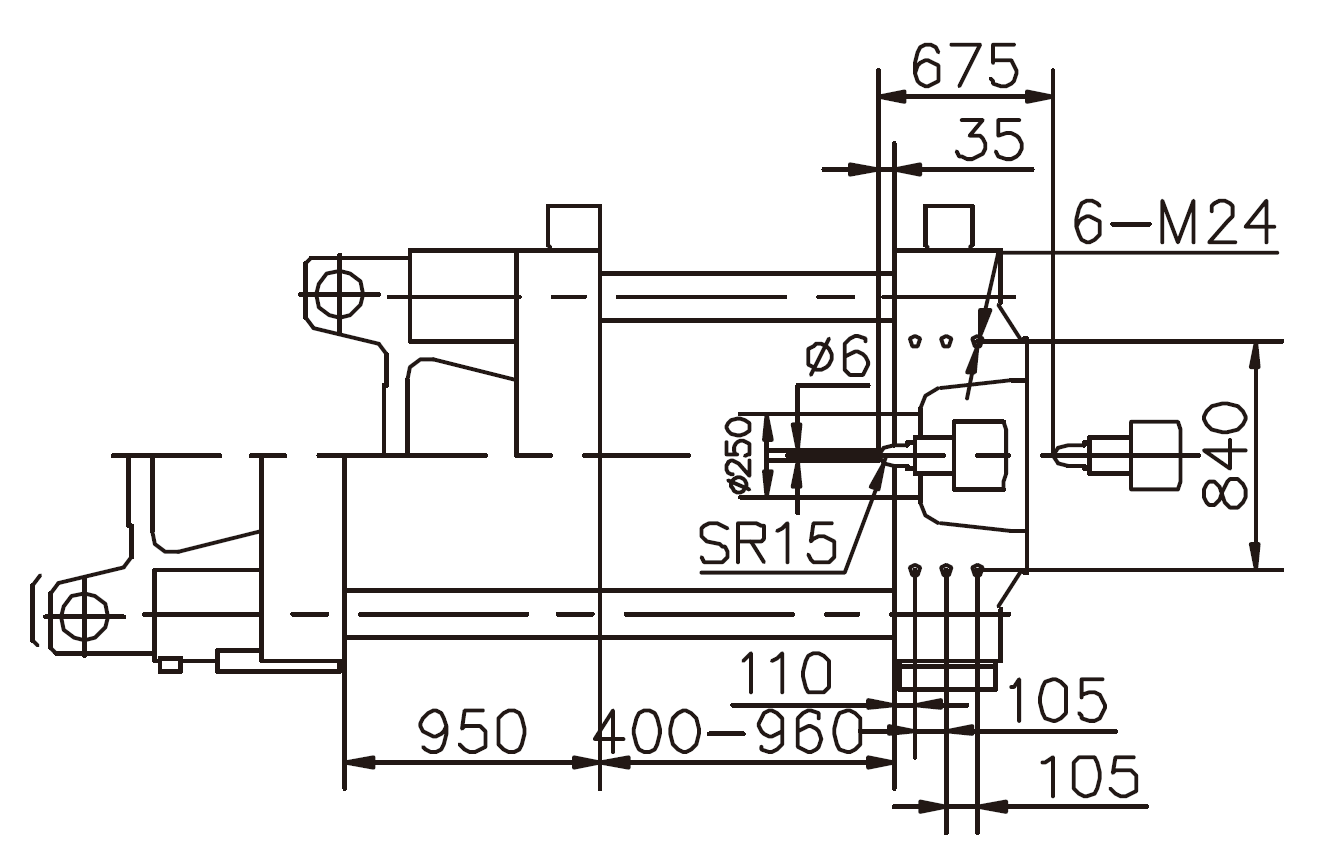

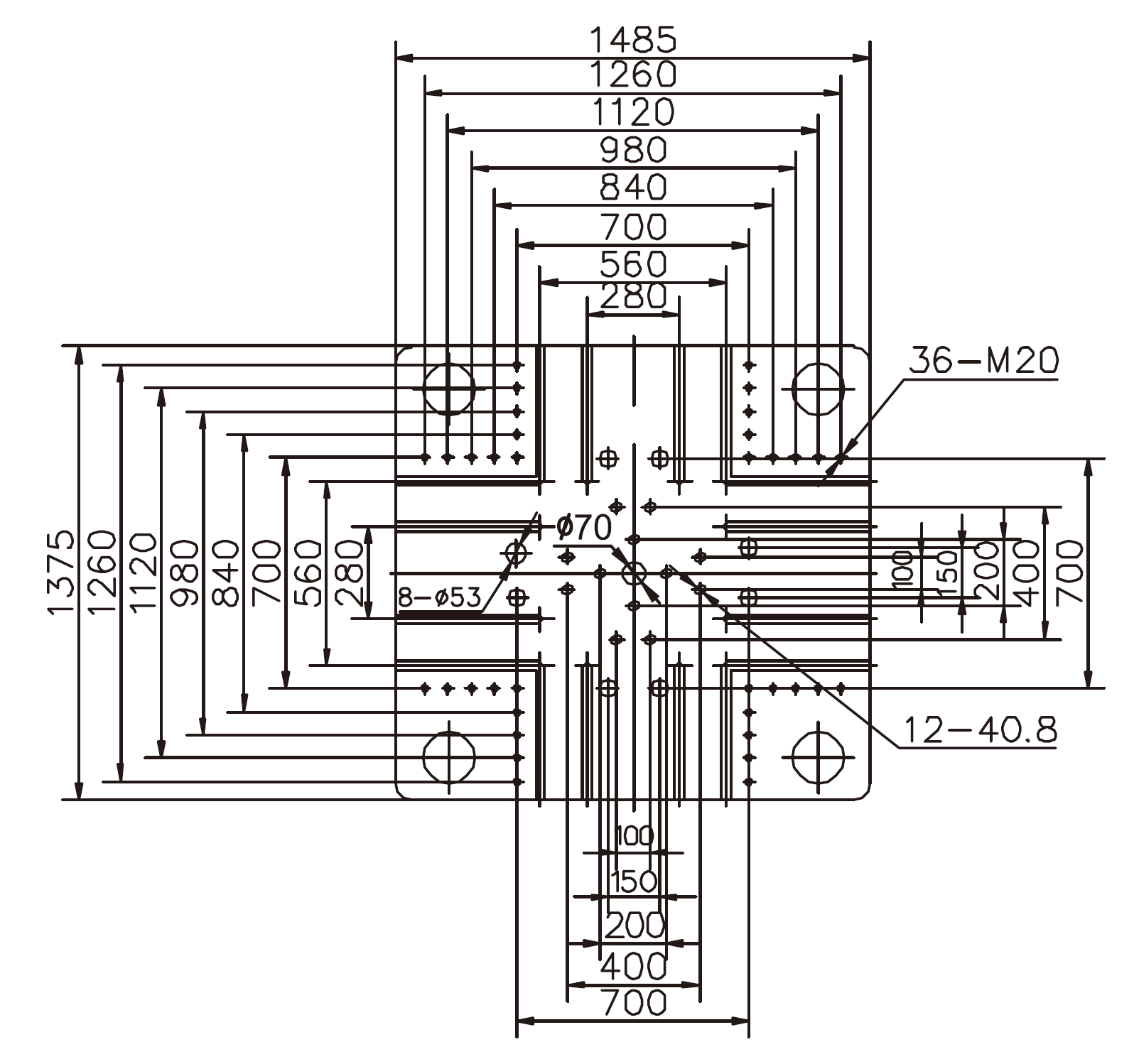

Dimension drawings
Specifications
Due to continual improvement, specifications are subject to change without notification.
| Parameter | Unit | A | B | C | D |
|---|---|---|---|---|---|
| Injection Unit | |||||
| Screw diameter | mm | 90 | 95 | 100 | 105 |
| Screw L/D ratio | L/D | 23 | 22 | 21 | 20 |
| Injection capacity in theory | cm³ | 2861 | 3188 | 3534 | 3894 |
| Injection weight | g | 2603 | 2901 | 3216 | 3543 |
| Injection weight | oz | 91.8 | 102.3 | 113.4 | 124.9 |
| Injection pressure | MPa | 213 | 191 | 173 | 157 |
| Injection rate | g/s | 546 | 608 | 674 | 743 |
| Plasticizing capacity | g/s | 76 | 85 | 90 | 98 |
| Screw speed | rpm | 110 | |||
| Clamping Unit | |||||
| Clamping force | kN | 7500 | |||
| Moving mould-plate stroke | mm | 1020 | |||
| Max. mould height | mm | 980 | |||
| Min. mould height | mm | 400 | |||
| Space between tie-bars | mm | 1020 x 970 | |||
| Hydraulic ejector force | kN | 230 | |||
| Hydraulic ejector stroke | mm | 280 | |||
| Ejector number | n | 21 | |||
| Other | |||||
| Pump pressure | MPa | 17.5 | |||
| Motor power | kW | 40+40 | |||
| Heating capacity | kW | 62.2 | |||
| Machine dimension | m | 11.60 x 2.28 x 2.74 | |||
| Machine weight | t | 39.0 | |||
| Oil tank capacity | L | 1000 | |||
