HXM Servo Energy-Saving
HX(*)850/7300
The HXM 850/7300 is a high-capacity, servo-driven injection molding machine engineered for the precision molding of large, complex plastic products. By combining closed-loop control with advanced servo-hydraulic technology, it ensures substantial energy savings, reduced cycle times, and the high-strength performance required for industrial and automotive manufacturing. Key Technical Specifications: Clamping Force: 8500 kN Injection Capacity: 3,849 to 4,701 cm³ (depending on screw choice) Screw Diameters: 95 mm, 100 mm, or 105 mm Injection Performance: 157 to 191 MPa pressure with plasticizing up to 98 g/s Power System: Dual-servo motor setup (2 × 40 kW) with 62.2 kW heating capacity Mold Dimensions: 1120 mm opening stroke; 400–1050 mm mold height range Tie-bar Spacing: 1070 × 1020 mm Physical Footprint: 12.18 × 2.40 × 2.74 meters; ~40.4-ton weight Specialized Features: 1535-liter oil tank, closed-loop control for precise injection, and a design optimized for high-strength appliance shells and industrial containers.

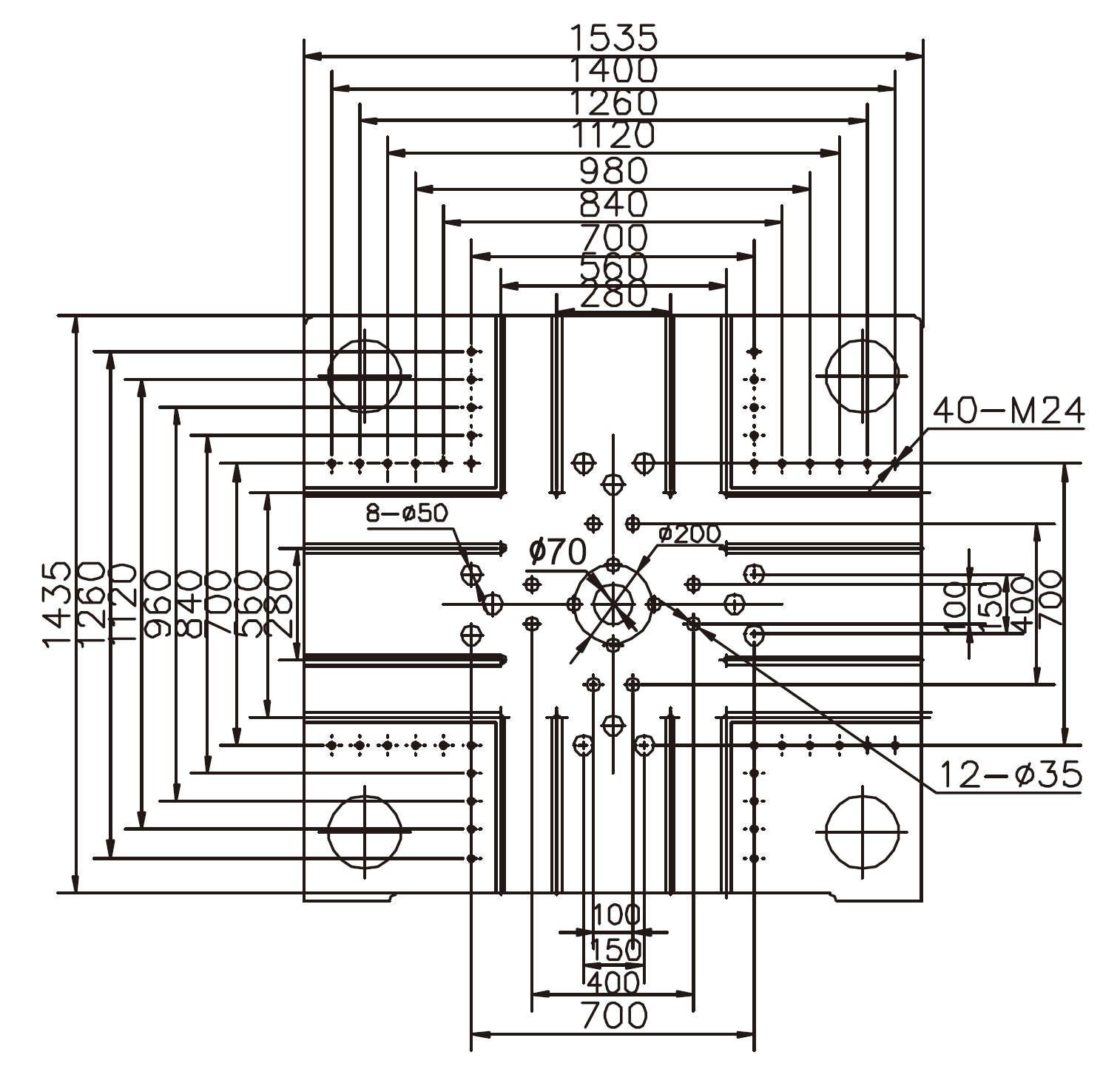

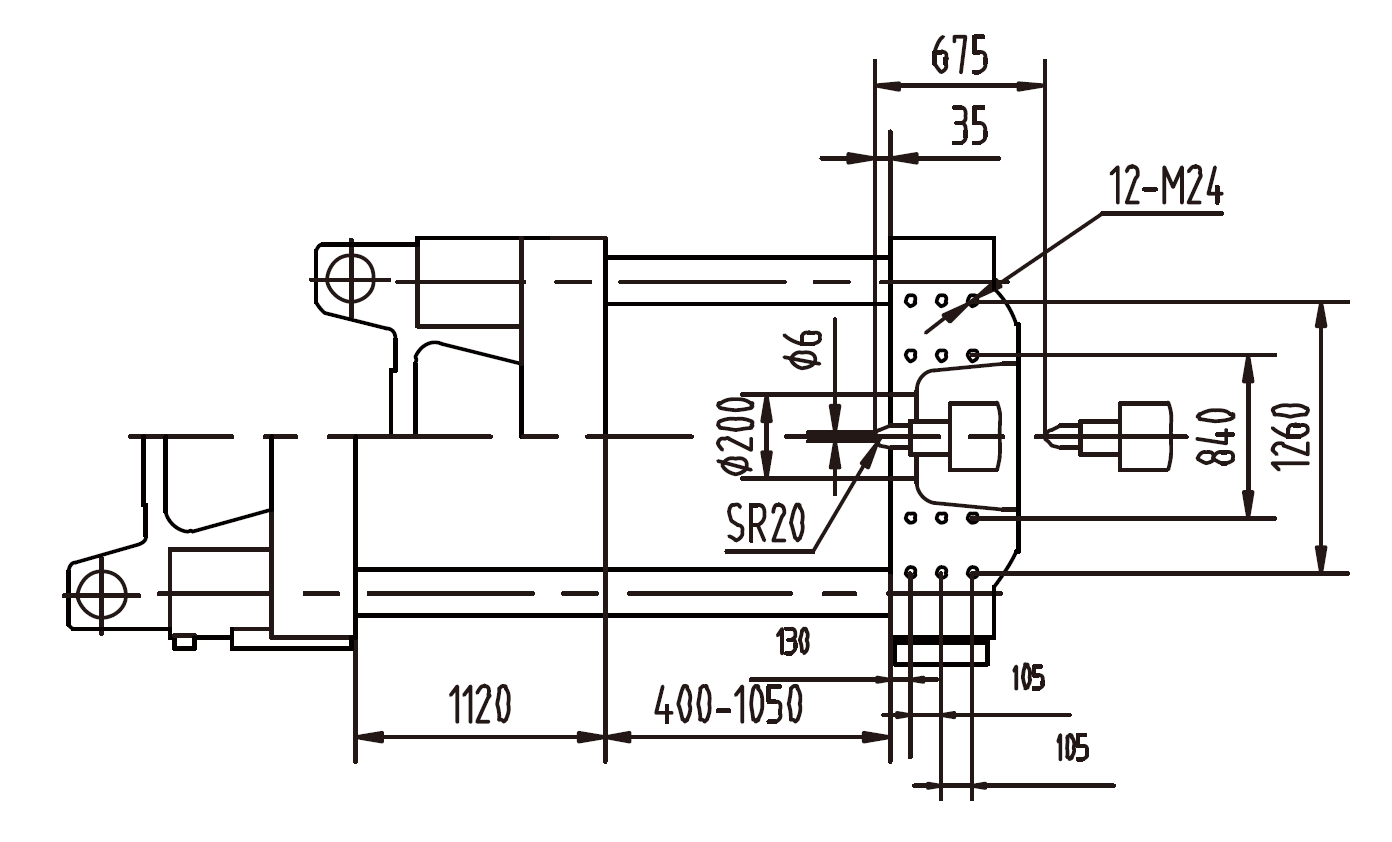

Dimension drawings
Specifications
Due to continual improvement, specifications are subject to change without notification.
| Parameter | Unit | A | B | C |
|---|---|---|---|---|
| Injection Unit | ||||
| Screw diameter | mm | 95 | 100 | 105 |
| Screw L/D ratio | L/D | 22 | 21 | 20 |
| Injection capacity in theory | cm³ | 3849 | 4264 | 4701 |
| Injection weight | g | 3502 | 3880 | 4278 |
| Injection weight | oz | 123.5 | 136.8 | 150.8 |
| Injection pressure | MPa | 191 | 173 | 157 |
| Injection rate | g/s | 608 | 674 | 743 |
| Plasticizing capacity | g/s | 85 | 90 | 98 |
| Screw speed | rpm | 110 | ||
| Clamping Unit | ||||
| Clamping force | kN | 8500 | ||
| Moving mould-plate stroke | mm | 1120 | ||
| Max. mould height | mm | 1050 | ||
| Min. mould height | mm | 400 | ||
| Space between tie-bars | mm | 1070 x 1020 | ||
| Hydraulic ejector force | kN | 227 | ||
| Hydraulic ejector stroke | mm | 300 | ||
| Ejector number | n | 21 | ||
| Other | ||||
| Pump pressure | MPa | 17.5 | ||
| Motor power | kW | 40+40 | ||
| Heating capacity | kW | 62.2 | ||
| Machine dimension | m | 12.18 x 2.40 x 2.74 | ||
| Machine weight | t | 40.4 | ||
| Oil tank capacity | L | 1000 | ||
